Axxius 800 - Release 2.2 15-17
Terminal Server Router Card
Connector Pinout
Connector Pinout
10Base-T Ethernet

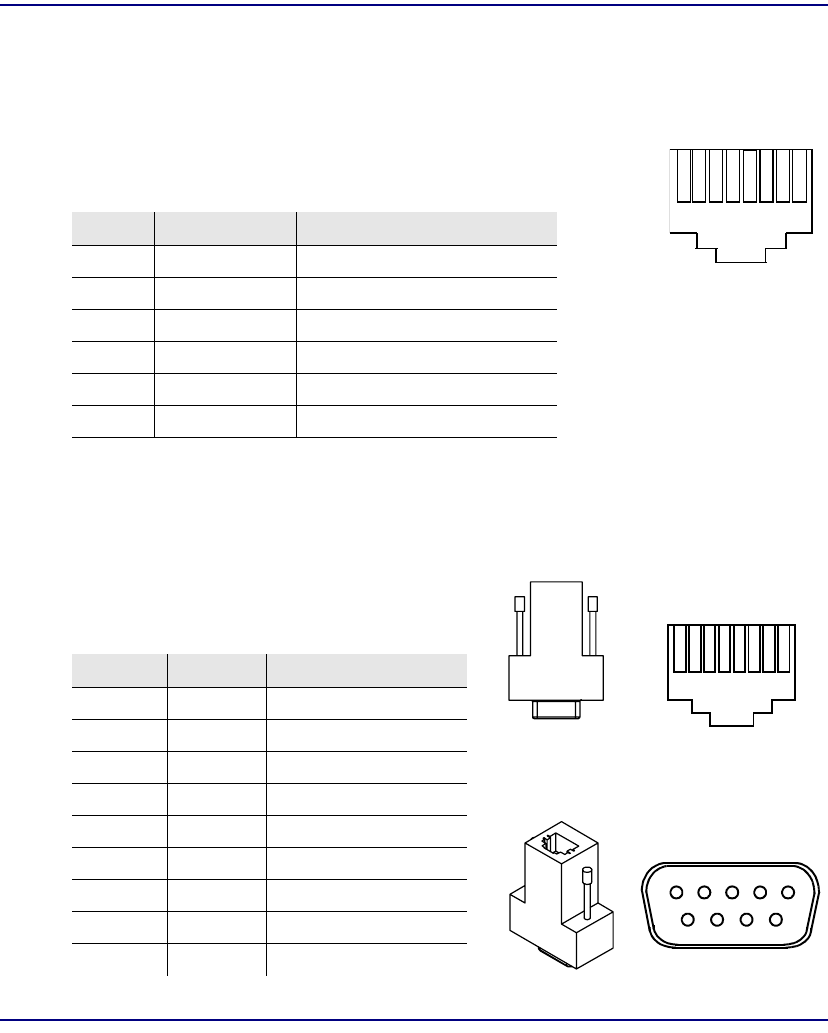

The pinout for the RJ-48C (female) connectors on the front of the
card are as follows:
RS-232
If the card is set to use the RS-232 connector
(with jumpers) use the above RS-232 pinouts.
There is a RS-232 to DB-9 converter cable
available, P/N 005-0106.
The pinout is as follows:
Pin Name Description
1 Receive + Receive from network
2 Receive - Receive from network
3 Transmit + Transmit to network
4 - 5 N/C Not connected
6 Transmit - Transmit to network
7 - 8 N/C Not connected
RJ-45 DB-9 RS-232
1 8 CTS (Input)
2 7 RTS (Output)
3 6 DSR (Input)
4 3 TXD (Output)
5 2 RXD (Input)
6 1 DCD (Input)
7 4 DTR (Output)
8 5 SG (Filtered)
NA 9 RI (Not Used)
