Axxius 800 - Release 2.2 1-13
Base Platform

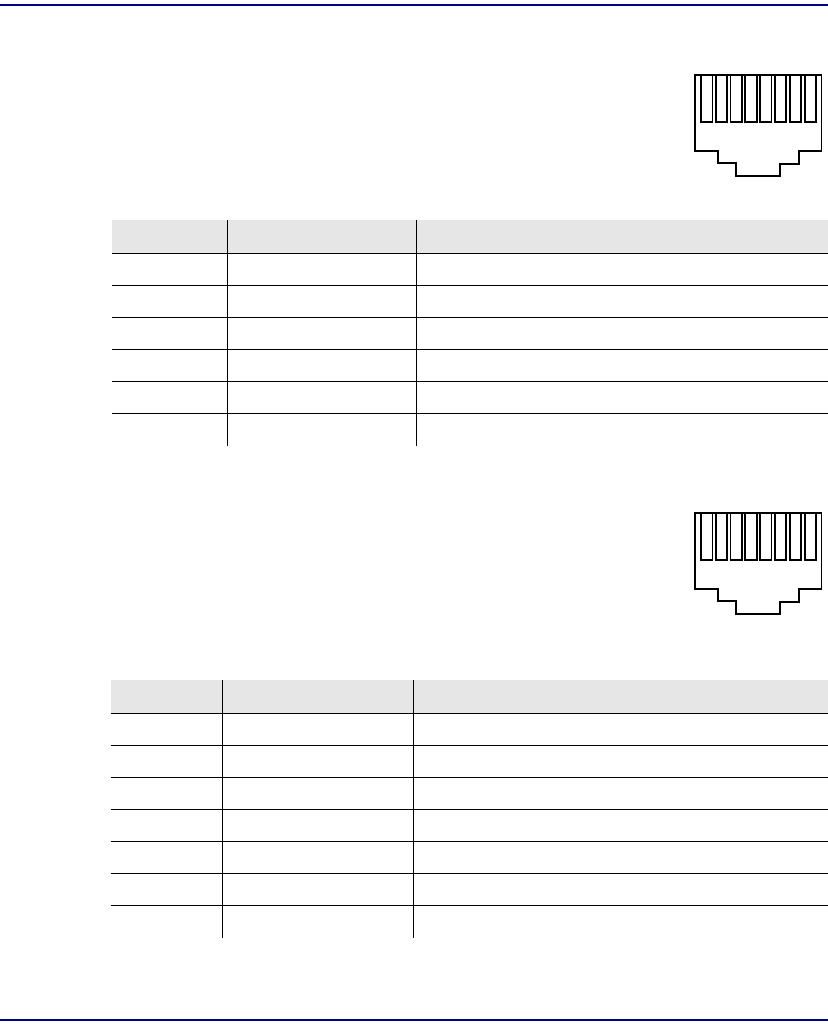

Control Panel Interfaces
DS1 Connection Ports
The DS1 connection ports are each equipped with a standard
RJ-28C (female) on the Axxius 800 unit.
The pinouts are as follows:
DS1 (RJ-48C)
10/100Base-T Ethernet
The 10/100Base-T Ethernet (female) port to connect to a remote
management tool such as Telnet or an SNMP-based Network
Management System.
The pinouts are as follows:
Ethernet (RJ-45)
Pin Name Description
1 Receive Ring Receive from DS1 network
2 Receive Tip Receive from DS1 network
3 N/C Not connected
4 Transmit Ring To DS1 network
5 Transmit Tip To DS1 network
6 -8 N/C Not connected
Pin Name Description
1 Receive + Receive from network
2 Receive - Receive from network
3 Transmit + Transmit to network
4 N/C Not connected
5 N/C Not connected
6 Transmit - Transmit to network
7 - 8 N/C Not connected
