PVC Boxes
Boxes & Covers — Carlon
®
Non-Metallic Boxes
One-Gang — For Old Work

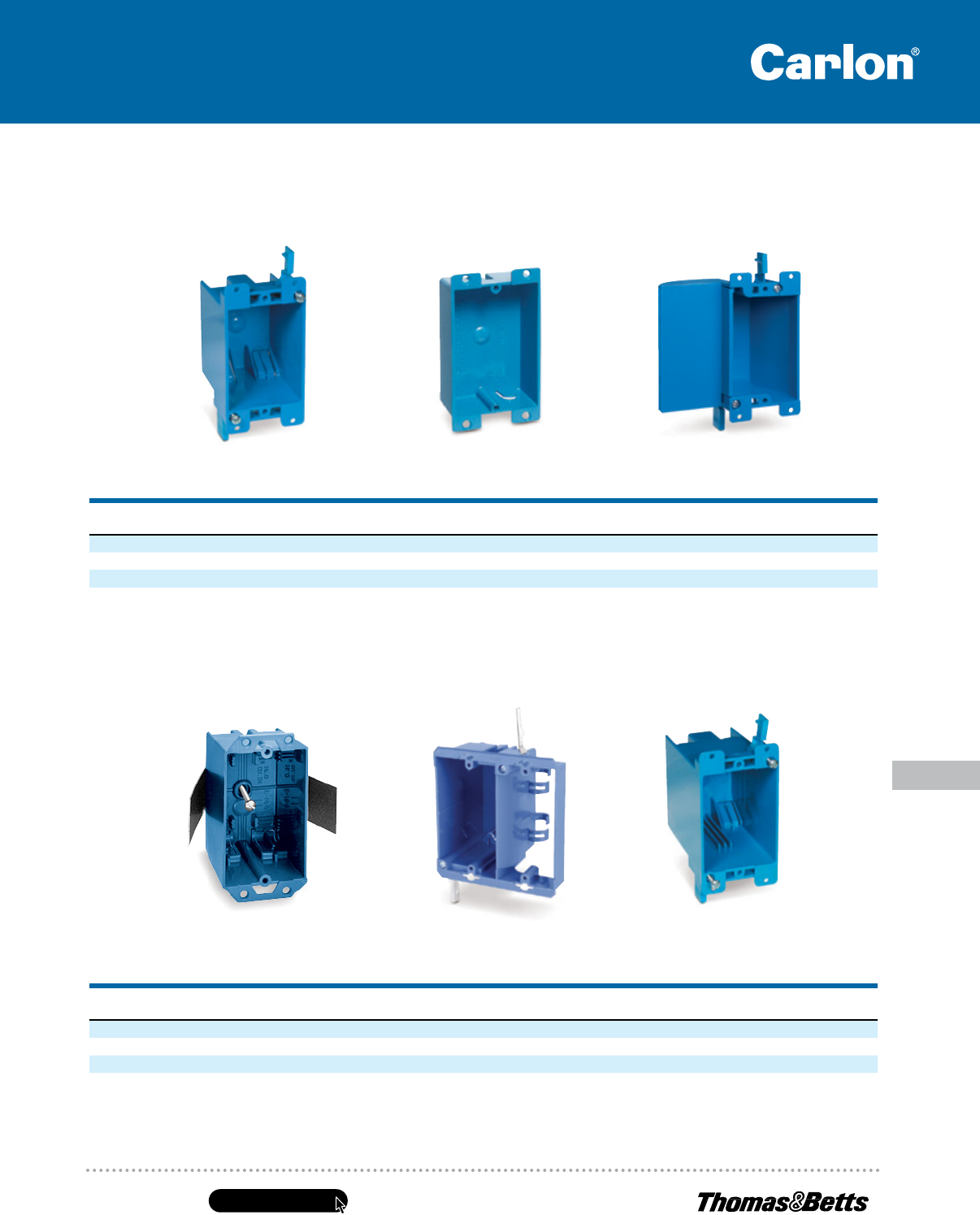

B108R-UPC B117RSWB114R-UPC
E18-4
E-16-8
B120R
One-Gang 8.0–17.0 Cu. In.
CAT. NO.
SIZE
CU. IN. MOUNTING MEANS DESCRIPTION DIMENSIONS (IN.) STD. CTN.
B108R-UPC • 8.0 Mounting Ears — 3
5
⁄8 L x 2
3
⁄8 W x 1
1
⁄4 D 25
B114R-UPC • 14.0 Mounting Ears and Swing Clamps — 4
1
⁄8 L x 2
1
⁄4 W x 2
3
⁄4 D 50
B117RSW • 17.0 Mounting Ears and Swing Clamps Access Panel 3.64 L x 4.07 W x 2.00 D (2.20 opening) 30
• Not UL Classified for Fire Resistance.
One-Gang 16.0–20.0 Cu. In.
CAT. NO.
SIZE
CU. IN. MOUNTING MEANS DESCRIPTION DIMENSIONS (IN.) STD.CTN.
E-16-8 16.0 Thermoplastic Molded Ears #4 Snap-In Molded Fast Clamps 3
1
⁄2 L x 2
1
⁄4 W x 2
11
⁄16 D 50
E-18-4 18.0 Thermoplastic Molded Ears #4 Swing Brackets Integral Molded V-Clamp 3
25
⁄32 L x 2
7
⁄32 W x 2
1
⁄4 D 100
B120R • 20.0 Mounting Ears and Swing Bracket — 4
1
⁄8 L x 2
5
⁄16 W x 3
5
⁄8 D 50
• Not UL Classified for Fire Resistance.
