Boxes & Covers — Carlon
®
Non-Metallic Boxes

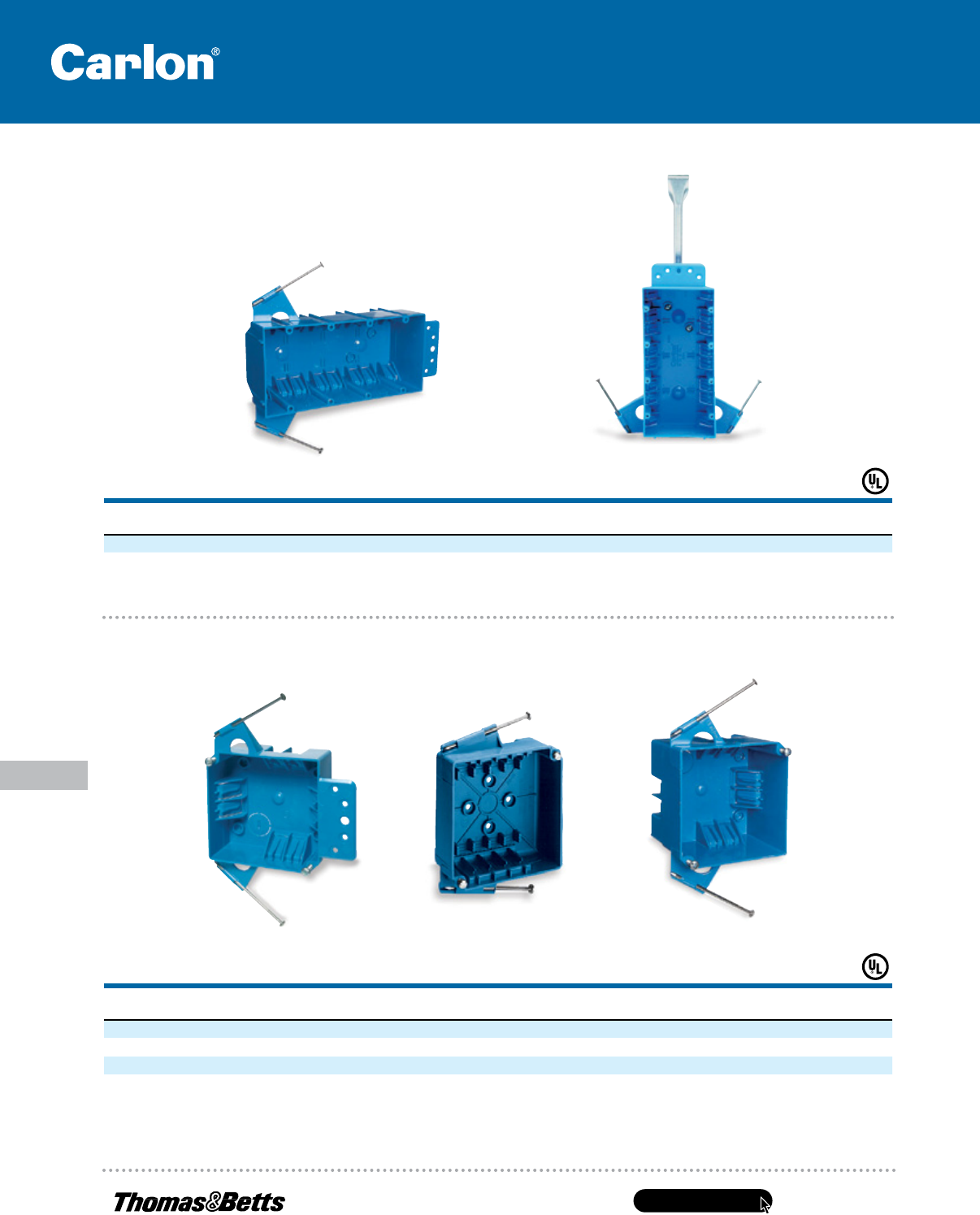

Four-Gang Nail-On — For New Work
4" Square — For New Work
B455A-UPC B455AH
B418A-UPC 4S-812C B432A-UPC
Four-Gang Nail-On 55 Cu. In.
CAT. NO.
SIZE
CU. IN. MOUNTING MEANS DESCRIPTION DIMENSIONS (IN.) STD. CTN.
B455AH 55.0 Captive Nails, Bracket Support and Hanger Bar — 7
3
⁄5 L x 3
7
⁄10 W x 2
1
⁄2 D 25
B455A-UPC 55.0 Captive Nails and Bracket Support — 7
3
⁄5 L x 3
7
⁄10 W x 2
1
⁄2 D 25
4" Square 18.0–32.0 Cu. In.
CAT. NO.
SIZE
CU. IN. MOUNTING MEANS DESCRIPTION DIMENSIONS (IN.) STD. CTN.
4S-812C 18.0 Angled Side Nails — 1
7
⁄16 D x 4 W x 4 L 100
B418A-UPC 18.0 Captive Nails — 1
5
⁄8 D x 4 W x 4 L 75
B432A-UPC 32.0 Captive Nails — 2
5
⁄8 D x 4 W x 4 L 50
