A-117

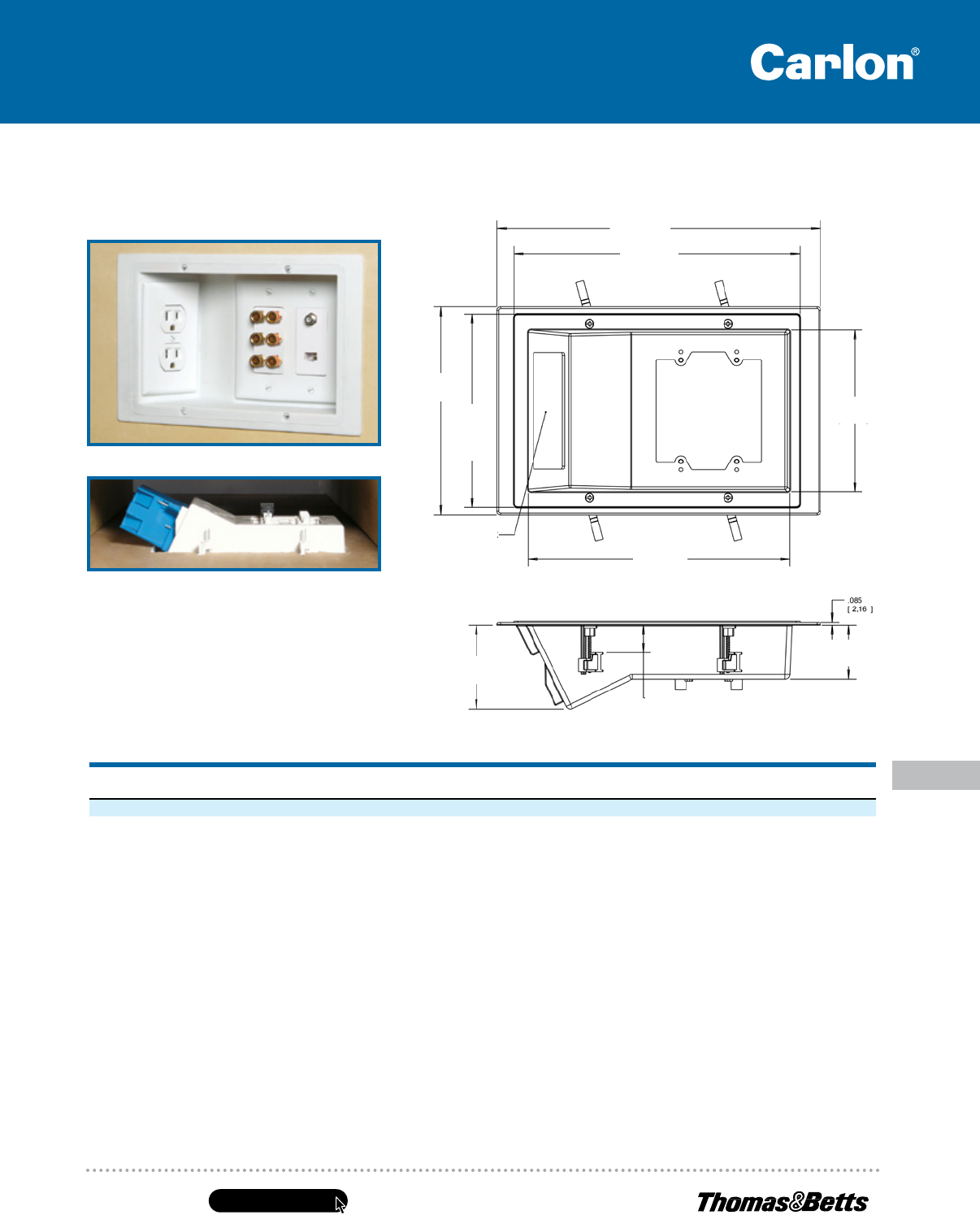

Low-Voltage Structured Cable Management System
Boxes & Covers — Carlon
®
Non-Metallic Boxes
Top view showing ample room between drywall and studs
Installed:
CAT. NO.
SIZE
CU. IN. MOUNTING MEANS DESCRIPTION DIMENSIONS (IN.)
STD.
CTN.
SC300PRB N/A Zip-Mount Retainers RDV 3-Gang Old Work Plate 6.75 L x 10.5 W x 2.72 D 20
SC300PRR N/A Zip-Mount Retainers RDV 3-Gang Old Work Plate with Outlet Box (B114R) 6.75 L x 10.5 W x 2.72 D 3
10.5"
(266.7 mm)
9.29"
(236 mm)
Max. Cutout
Required
6.27"
(159.3 mm)
Max. Cutout
Required
1.76"
(44.7 mm)
Install Old Work Box
in this Area
8.49"
(215.6 mm)
2.72"
(69 mm)
.90"
(22.7 mm)
Max. Wall
Thickness
6.75"
(171.5 mm)
5.25"
(133.3 mm)
