Low-Voltage Structured Cable Management System
Boxes & Covers — Carlon
®
Non-Metallic Boxes
1. Locate studs and determine if they are 16" or 24" apart. If 16"
apart, measure a maximum of 3" from edge of stud to determine
plate location. If 24" apart, center plate between studs.
Note: High-voltage side must be 3" from stud.
2. Place SC300PRB or SC300PRR face down against the wall. Using
a hammer, tap around the edge of the plate to mark area to be cut
out (Fig. 1). Remove plate from wall, a line should be visible on the
drywall. Cutout should be approximately 6.25" x 9.25".
3. Carefully cut out area of drywall with a utility knife or drywall saw.
4. Place SC300PRB or SC300PRR in wall and secure by tightening
down all four Zip-Mount retainers (Fig. 2).
5. Select device and outlet/switch box, CAT. NO. B114R (14 cu. in.)
or B120R (20 cu. in.), based on wire fill needs (Fig. 3).
6. Insert wires through boxes (B114R or B120R and SC300PRB or
SC300PRR). Make sure high- and low-voltage wires do not come
in contact with one another.
7. Install Carlon
®
Old Work Zip Box
®
, model B114R or B120R (Fig. 4).
8. Install receptacle and faceplate per manufacturer’s instructions
(Fig. 5).
9. Install low-voltage devices and faceplate per manufacturer’s
instructions (Fig. 6 and Fig. 7).
Note: When preparing for later installation of low-voltage devices,
use a 2-gang blank plate to cover wall opening for a clean
finished look.

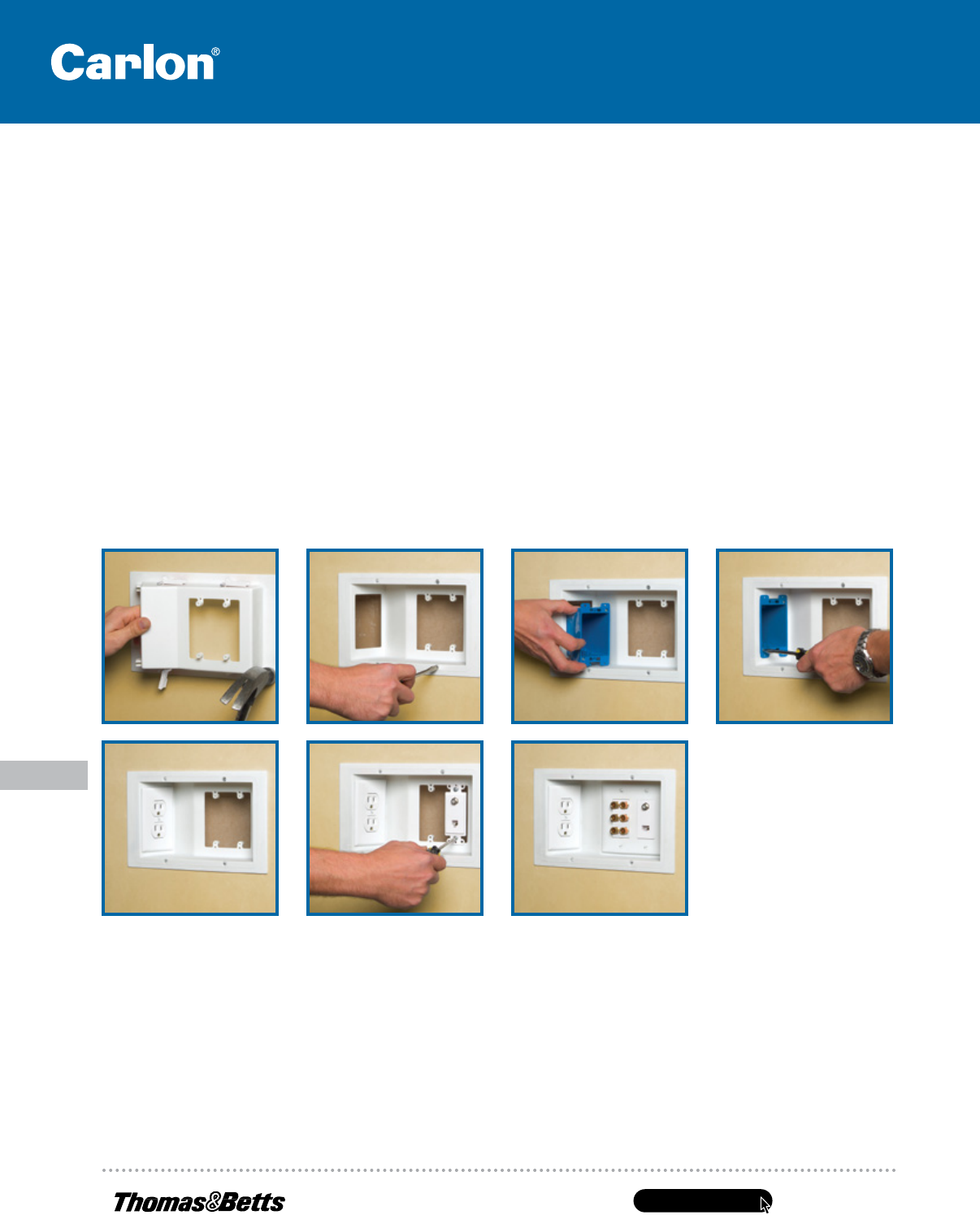

Fig. 1 Fig. 2 Fig. 3
Fig. 5 Fig. 6 Fig. 7
Fig. 4
Recessed Dual-Voltage 3-Gang Old Work Plate (continued)
Features:
• 3-gang dual-service capability: accommodates one line
voltage and two low-voltage services using one plate
(boxes, devices and plates not included)
• Recessed low-profile design: eliminates unsightly wires
and plug heads
• Universal 1-gang outlet/switch opening: select the size
box you need
• Pre-assembled box and frame: reduces labor time
and saves money
• Shallow design: provides ample room behind the drywall
and between the studs and accommodates cable bend
requirements
• Four swing-out clamps: locks the plate securely to the wall
— horizontal or vertical mount
• Superior hi-gloss, paintable finish: professional appearance
and blends with any décor
• Non-metallic, ABS material: lightweight and easy to handle
Installation:
Please read these instructions completely before attempting installation.
IMPORTANT! Before attempting installation, be sure power is off by removing the fuse or switching the circuit breaker to “off.”
Make sure the Recessed Dual-Voltage Plate is installed in accordance with the National Electrical Code
®
(NEC
®
) and local codes.
NEC and National Electrical Code are registered trademarks of the National Fire Protection Association, Inc.
