A-114
Low-Voltage Structured Cable Management System
Boxes & Covers — Carlon
®
Non-Metallic Boxes
The Carlon
®
Low-Voltage Adjustable Floor Bracket is specifically designed for the low-voltage, structured
cabling market…the floor bracket is industry-standard orange to identify low-voltage applications,
the open design provides the space needed for low-voltage bend radius requirements and the Leviton
QuickPort
®
Quad 106
®
Insert provides up to four low-voltage outlet ports. The Carlon
®
Low-Voltage
Adjustable Floor Bracket is ideal for any residential or commercial low-voltage application.
The floor bracket also features a unique screw design, enabling it to be adjusted to most finished-floor
heights by simply turning the screw clockwise or counterclockwise and adjusting flush to the floor.
The floor bracket kit comes complete with a non-metallic (white or ivory) or brass cover, a Leviton
QuickPort
®
Quad 106
®
Insert, new work and old work metal mounting brackets and mounting screws.
Carlon
®
Structured Cable Management Systems…Your Total Systems Solution!
• White,ivoryorbrasscover
• Orange—identifieslow-voltageinstallations
• Open-designfloorbracket—accommodateslow-voltagebendradiusrequirements
• Adjustablescrew—bracketadjuststomostfinished-floordepths
• Leviton
®
QuickPort
®
Quad106
®
Insert—installuptofourlow-voltageinserts
• Two-doordesign
• cUL-USListed
QuickPort
®
and Quad 106
®
are registered trademarks of Leviton Manufacturing Co., Inc.

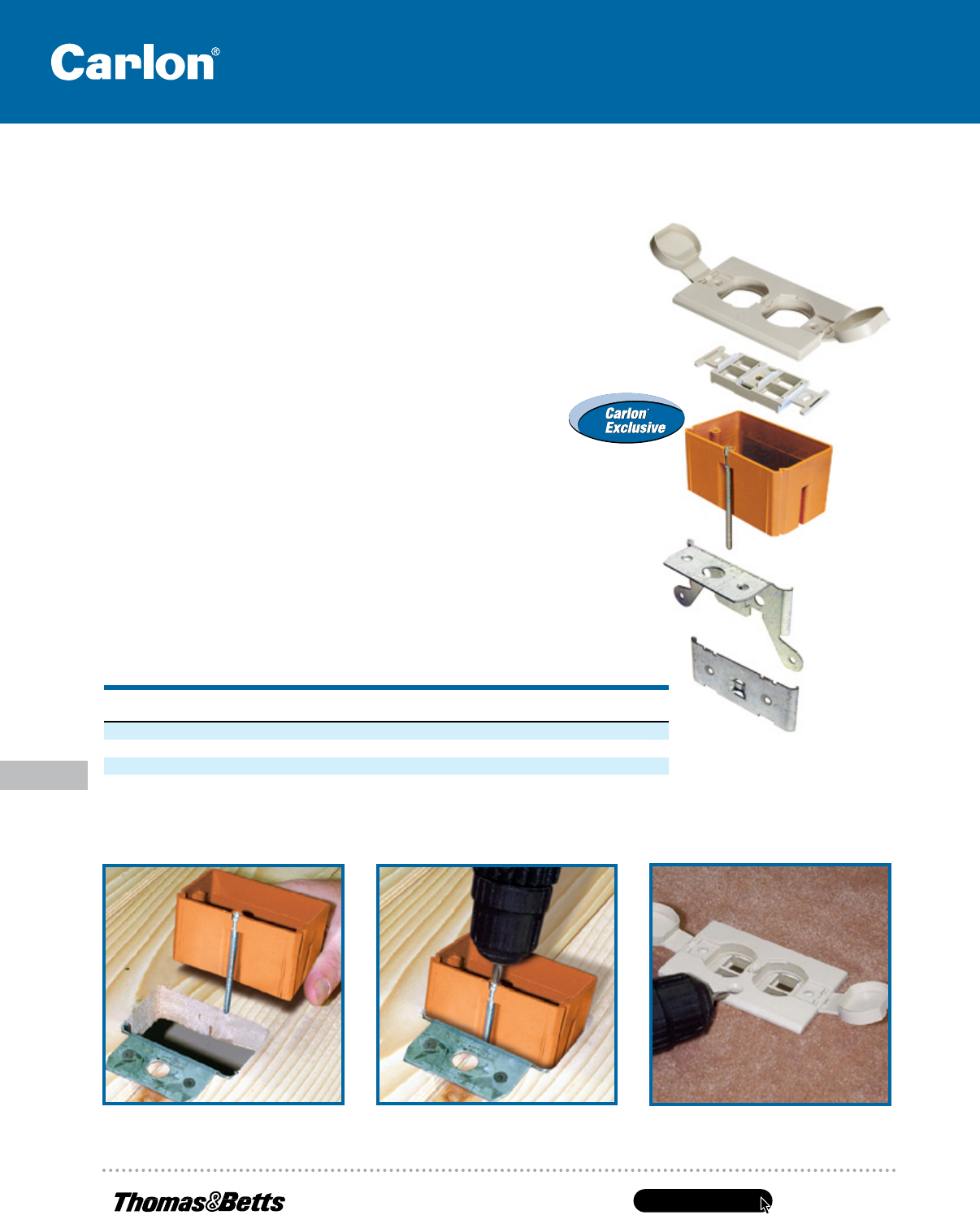

Low-Voltage Adjustable Floor Bracket with Cover
Install clip over subfloor. Screw in to adjust to height of flooring or carpet. Beautiful flush fit every time!
Installation:
One-Gang Adjustable
CAT. NO.
SIZE CU.
IN. MOUNTING MEANS DESCRIPTION DIMENSIONS (IN.)
STD.
CTN.
SC100FBWC• N/A Adjustable Bracket Non-Metallic — White 2.80 L x 4.36 W x 1.72 D 8
SC100FBVC• N/A Adjustable Bracket Non-Metallic — Ivory 2.80 L x 4.36 W x 1.72 D 8
SC100FBBC• N/A Adjustable Bracket Brass 2.80 L x 4.36 W x 1.72 D 8
• UL Listed E216492.
