Low-Voltage Structured Cable Management System
Boxes & Covers — Carlon
®
Non-Metallic Boxes
CAt. No.
Size
Cu. iN.
MouNtiNg
MeANS DeSCriptioN DiMeNSioNS (iN.)
StD.
CtN.
SC100RR• N/A Adjustable
Bracket
1-Gang 4.32 L x 2.52 W x 1.66 D 12
SC200RR• N/A Adjustable
Bracket
2-Gang 4.28 L x 4.28 W x 1.66 D 6
• UL Listed E216492.
CAt. No.
StD.
CtN.
SCDIV• 50
• For use with Carlon
®
SuperBlue
™
boxes only.
CAt. No. DeSCriptioN
StD.
CtN.
SCA410• 1-Gang 20
• Note: Classified for two-hour fire-resistive wall assemblies when used with Two-Gang
Quick-Connect Outlet and Switch Boxes.
UL Listed E11461.
Low-Voltage Divider Plate
Mud Ring (4" Square
1
⁄2" Raised Cover)

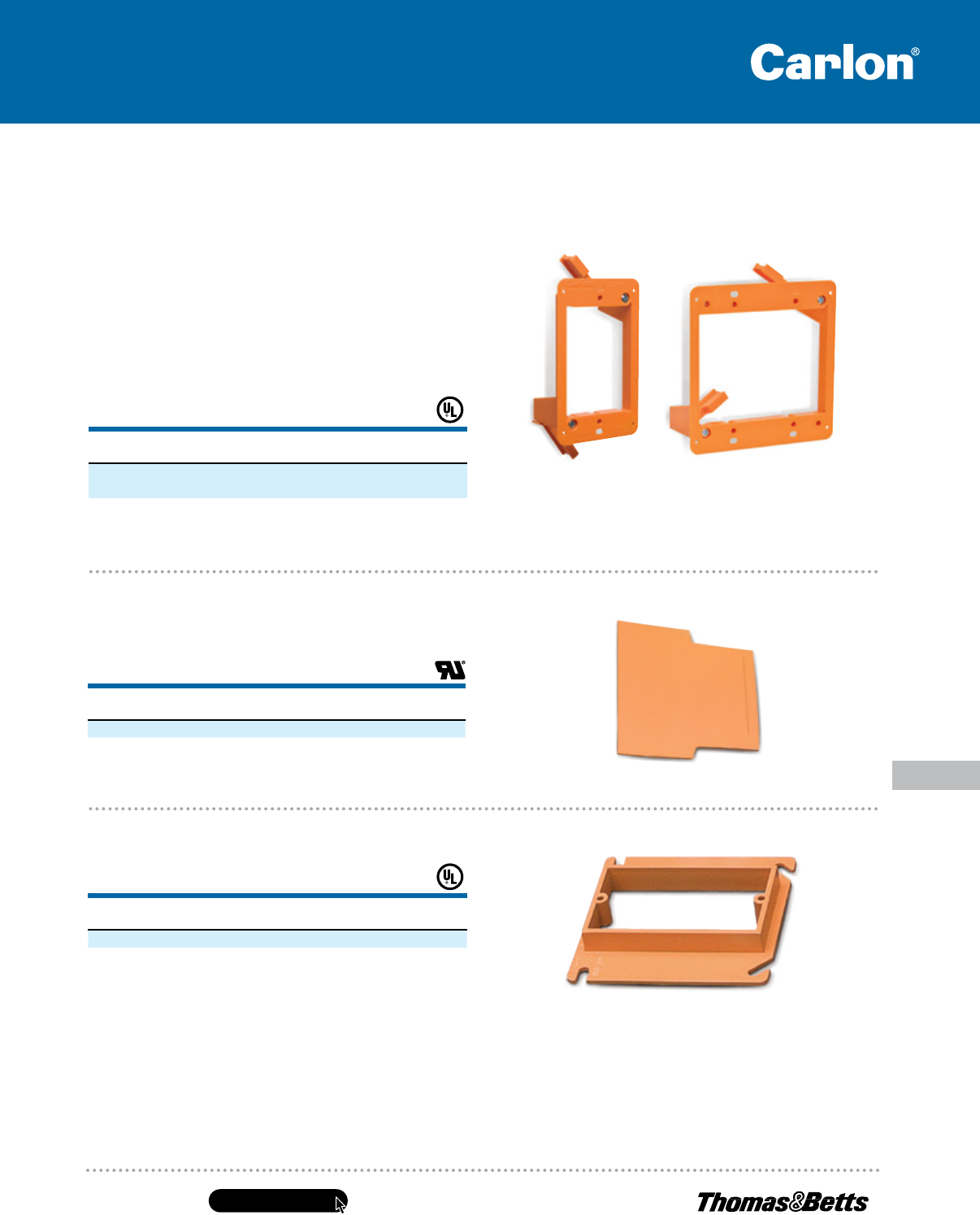

SC100RR SC200RR
Old Work Brackets
• Rectangularflangeforfaster/easierinstallation
• Shallowbracket—lessmaterial,easiertoworkwith
• Markingholeforwallopening
• Thinnerflangeforlessprotrusiononthewall
• SINGLE-GANGONLY—clampsstopatcenterpoint
topreventthebracketfromtwistingorbendingout
ofthewall
