Low-Voltage Structured Cable Management System
Boxes & Covers — Carlon
®
Non-Metallic Boxes

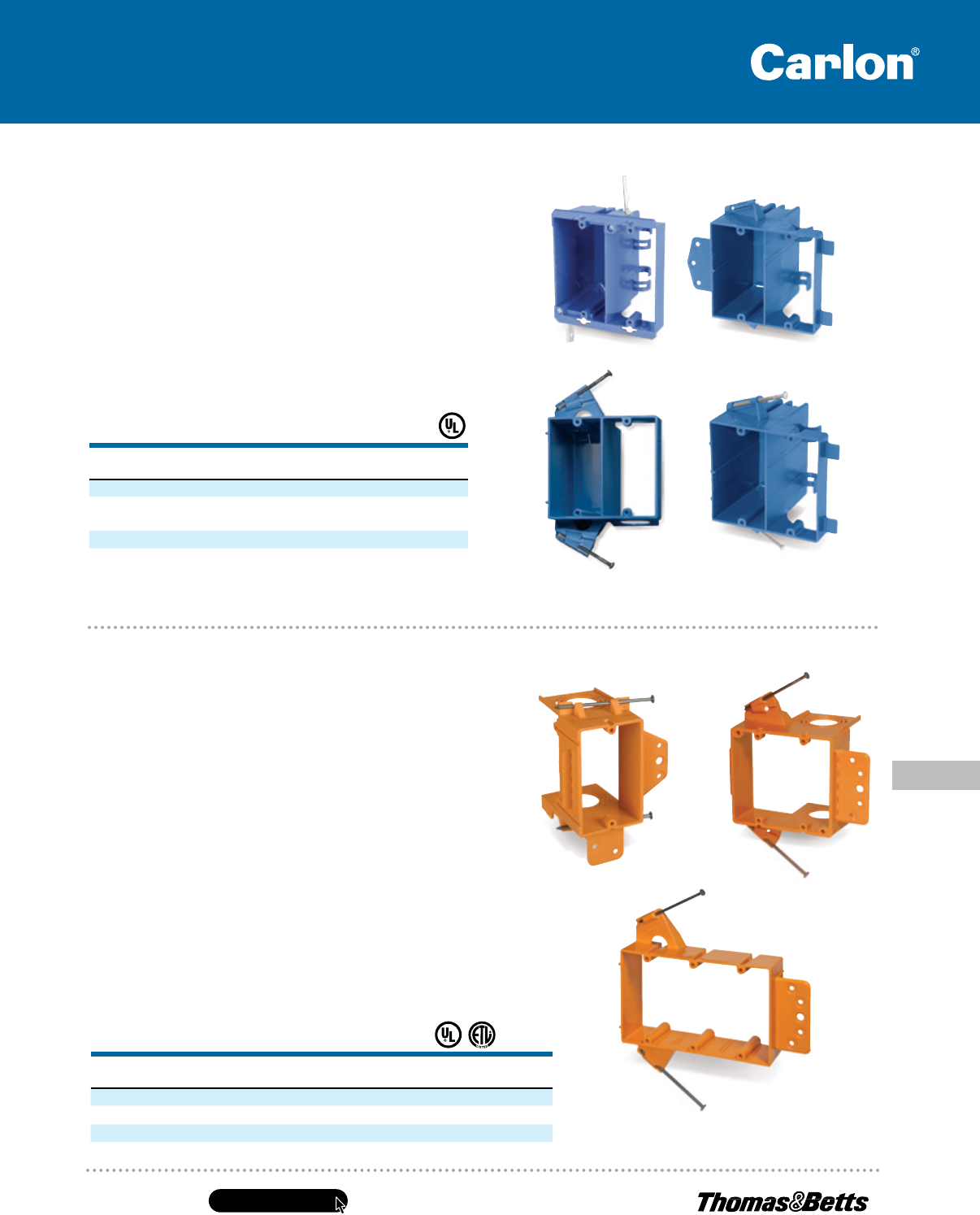

Dual-Voltage Box/Bracket
• Dual-voltage capability
• Accepts a two-gang faceplate
•
3
⁄4" Resi-Rings
®
• Backless design accommodates large/deep
low-voltage devices
• Eliminates cutting the backs off electrical boxes
• Accommodates bend-radius requirements for low-voltage cabling
• Provides ample space for installation
Low-Voltage Brackets
• Backless design accommodates large/deep low-voltage devices
• Eliminates cutting the backs off electrical boxes
• Accommodates bend-radius requirements for low-voltage cabling
• Provides ample space for installation
• Mount Flange for steel stud application
One- and two-gang versions only:
• Resi-Rings
®
with concentric knockouts
• Accepts
3
⁄4", 1" and 1
1
⁄4" Resi-Gard
®
• Horizontal mounting bracket (one-gang only)
• Breakaway drywall support flange provides easy alignment for
1
⁄2" drywall
• Screw-mount option
• Breakaway vertical mounting flange
• Breakaway feature enables the use
of the Low-Voltage Add-On Bracket
SC100A SC200A
SC300A
CAT. NO.
SIZE CU.
IN. MOUNTING MEANS DIMENSIONS (IN.)
STD. CTN.
QTY.
E-18-4-DV• 18.0 Dual Voltage 3
3
⁄4 L x 4 W x 3 D 50
SB-21-DV• 20.5 Molded Bracket for
Wood/Steel Studs
3
5
⁄8 L x 4 W x 3
7
⁄16 D 50
SC200DV• 20.5 Angled Side Nails 3.69 L x 4.04 W x 3.67 D 16
SN-21-DV• 20.5 Angled Side Nails 35/8 L x 4 W x 3
7
⁄16 D 50
• UL Listed E11461.
Permissible for use with 90° C insulated conductors.
80° C heat-rated material.
CAT. NO.
SIZE CU.
IN. MOUNTING MEANS DESCRIPTION DIMENSIONS (IN.)
STD.
CTN.
SC100A• N/A Captive Nails
3
⁄4", 1", 1
1
⁄4" Resi-Rings
®
3.73 L x 2.32 W x 3.15 D 24
SC200A• N/A Captive Angled Nails
3
⁄4", 1", 1
1
⁄4" Resi-Rings
®
3.77 L x 4.07 W x 3.15 D 24
SC300A•
▲
44 Captive Angled Nails — 3.69 L x 5.81 W x 1.50 D 5
• UL Listed E216492.
SC200DV
SB-21-DV
SN-21-DV
E-18-4-DV
Where noted
by
▲
