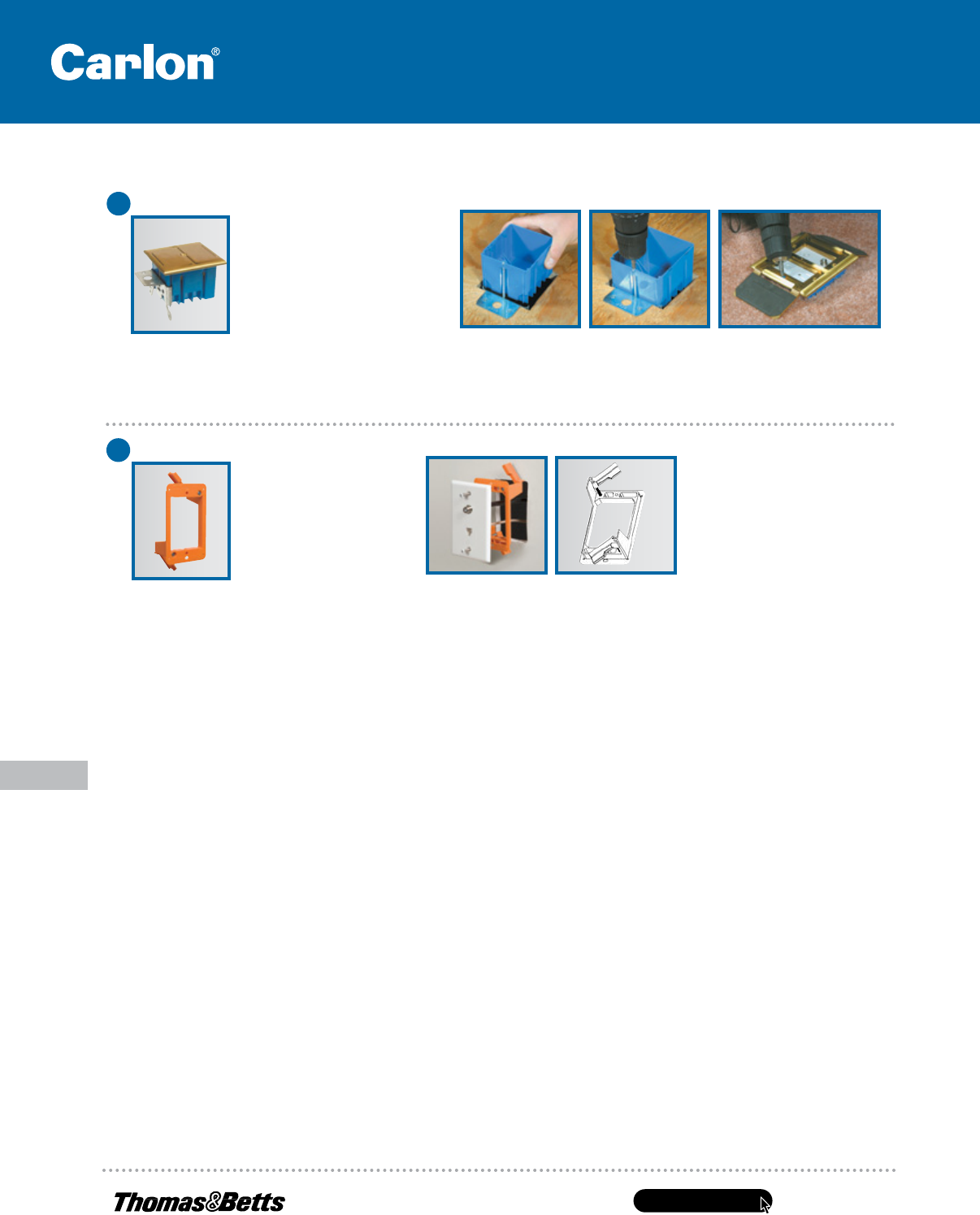

Low-Voltage Structured Cable Management System
Boxes & Covers — Carlon
®
Non-Metallic Boxes
9
10
Install clip over subfloor. Screw in to adjust to height of flooring or carpet. Beautiful flush fit
every time!
For more information about this floor box, refer to www.tnb.com or the Thomas & Betts
Residential catalog.
Adjust-A-Box
®
Floor Box
Carlon
®
Adjust-A-Box
®
Floor Boxes
make installing floor outlets fast
and easy by providing maximum
installation flexibility. The box
features an adjustment screw
designed to adjust the box from
0" to 1
3
⁄4" by simply turning
the screw clockwise or counterclockwise, providing
a flush mount every time… B234BFBB (brass cover)
and B234BFSS (stainless steel)
1. Use the holes in the corners to mark the opening.
2. Cut out the drywall.
3. Place box in wall.
4. Secure box to wall.
Old Work Bracket
Carlon
®
Low-Voltage Old Work
Brackets are specifically designed
for the installation of low-voltage
devices such as cable television,
data communications or
telephone jacks in an existing
wall. The backless feature
provides the space needed for the bend radius
requirements of coaxial or data/communication
cables. It also eliminates the need for metal plates,
lags or screws… SC100RR (shown) and SC200RR
