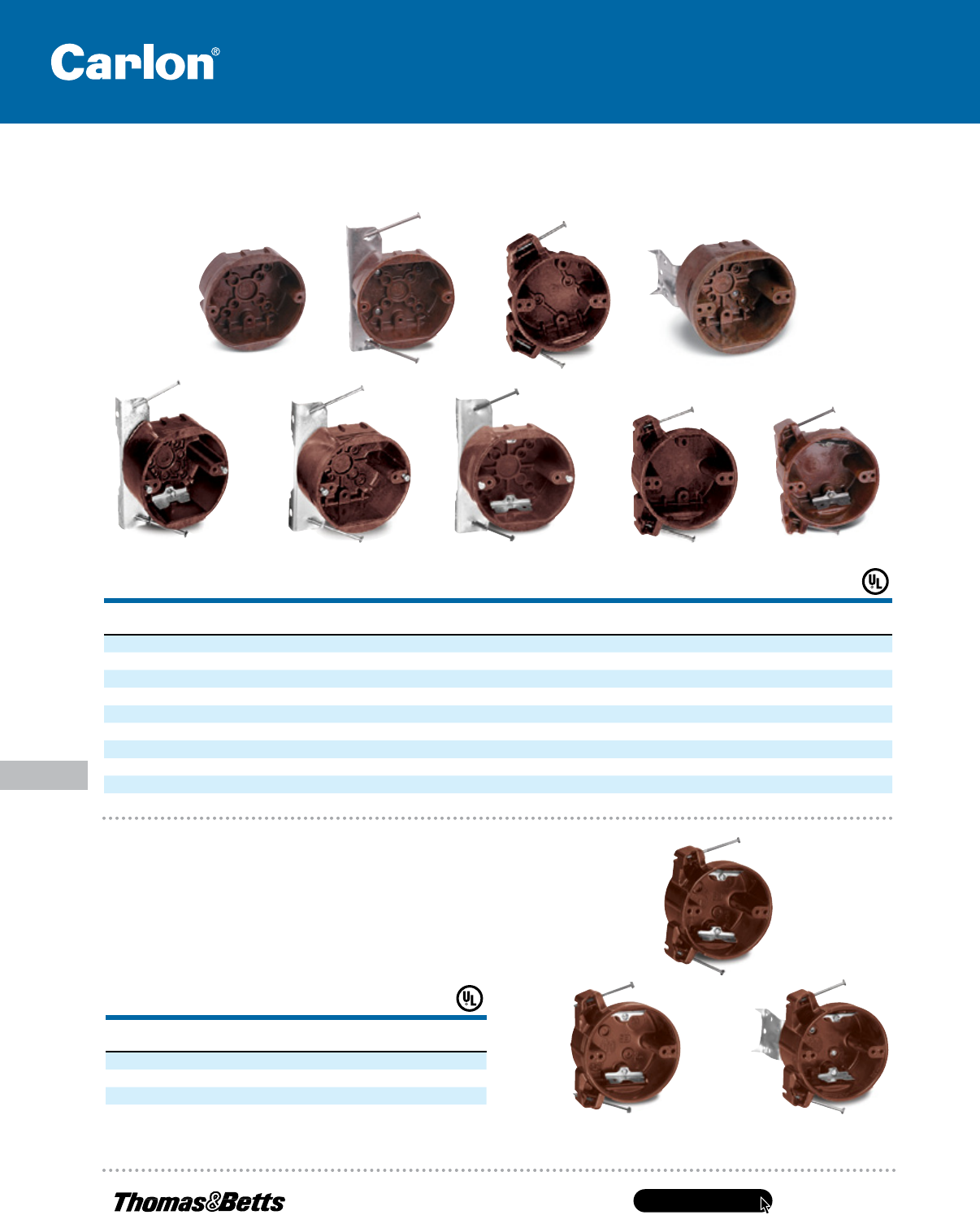

A-100
Phenolic Boxes
Boxes & Covers — Carlon
®
Non-Metallic Boxes
4060-N024060-02 4160-UB
4170 4170-C4070-N-SQ
4070-302
4070-N024070-N
4170-CFB-S
4170-3-CFB
13.5–21.5 Cu. In
CAT. NO. SIZE CU. IN. MOUNTING MEANS DESCRIPTION DIMENSIONS (IN.)
STD.
CTN.
4060-02 • 13.5 Nail or Screws #36 Clamps, Bulk Packed 4 Dia. x 1
5
⁄8 D 100
4060-N02 • 13.5 “N" Bracket, Bulk Packed with Nails #36 Clamps 4 Dia. x 1
5
⁄8 D 50
4160-UB • 16.0 Compound Angled Side Nails #36 Clamps, Bulk Packed 4 Dia. x 1
15
⁄16 D 50
4070-302 • 20.8 #3 Bracket #36 Clamps, Bulk Packed 4 Dia. x 2
3
⁄8 D 50
4070-N • 20.8 “N" Bracket with Nails High Clamps 4 Dia. x 2
3
⁄8 D 50
4070-N02 • 20.8 “N" Bracket with Nails #36 Clamps, Bulk Packed 4 Dia. x 2
3
⁄8 D 50
4070-N-SQ • 20.8 “N" Bracket with screws High Clamps 4 Dia. x 2
3
⁄8 D 50
4170 • 21.5 Compound Angled Side Nails #36 Clamps, Bulk Packed 4 Dia. x 2
7
⁄16 D 50
4170-C • 21.5 Compound Angled Side Nails High Clamps 4 Dia. x 2
7
⁄16 D 50
• Listed for fixture support up to 50 lbs.
21.5 Cu. In.
CAT. NO.
SIZE
CU. IN. MOUNTING MEANS DIMENSIONS (IN.)
STD.
CTN.
4170-CFB • 21.5 — 4
1
⁄16 Dia. 10
4170-CFB-S • 21.5 Steel Stud Screws 4
1
⁄16 Dia. 10
4170-3-CFB • 21.5 3" Bracket 4
1
⁄16 Dia. 10
• UL Listed for support of light fixtures of up to 50 lbs. or ceiling fans up to 35 lbs.
4" Round Outlet Box
4" Nail-On Brackets
4170-CFB
