Boxes & Covers — Carlon
®
Non-Metallic Boxes

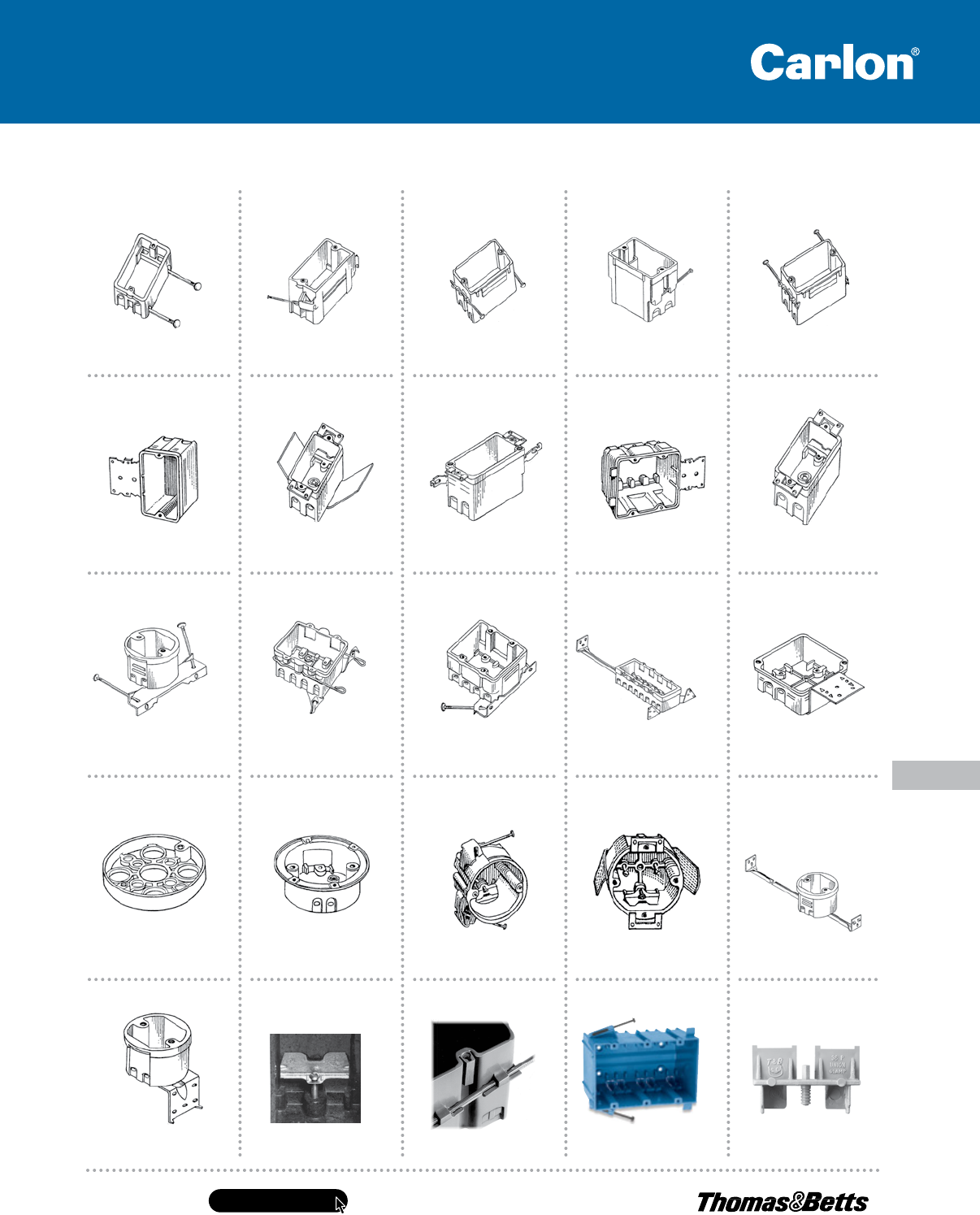

Overview
Bottom Nailed
Most widely accepted
for universal use
Compound
Angled Nails
For easy installation and
positioning in limited space
Reverse Angled
Side Nails
For use when installed
from backside of drywall
For quick positioning
on narrow stud spacing
Angled Side
Nails
For quick positioning
on narrow stud spacing
SB, #5, #7 Offset
Brackets
For face mount on
wood or steel studs
Ears, #8 Bracket
Snap-in bracket secures
box to wall
Ears, #4 Bracket
Swing bracket swings into
place, secures box to wall
#738 Offset
Bracket
With
3
⁄8" offset for face mount
on wood or steel studs
Ears
For screw mounting
direct to paneling
“N” Bracket
Easily positioned for
maximum use of box depth
#2 Bracket
Sturdy side-mounting
bracket, support wire
adds rigidity
Reverse angled nails for use
with narrow stud spacing
Bar extends for rigid
installation between studs
#1 Raised
Face Bracket
For wood or steel studs,
allows for
1
⁄2" mud ring,
1
⁄2" drywall
Through bottom
Screw Mount
Flange with flash ring
Compound
Angled Side
Nails
For easy installation and
positioning in limited space
Screws, #9
Snap-in Bracket
Snap-in bracket secures
box to wall
For easy installation, exact
centering of ceiling boxes
#3 Bracket
Easily positioned for
maximum use of box depth
Fast Set Feature
For fast device mounting
High Clamp
Feature
For easy cable entry
Angled Screws
For fast mounting
on steel stud
Non-Metallic
Clamp
For easy cable entry
“R” Bracket
Nails or Screws
Side Bracket
Stabilizer Bar
Recessed
Angle Nails
#94, #95
Bar Hangers
(16" and 24")
