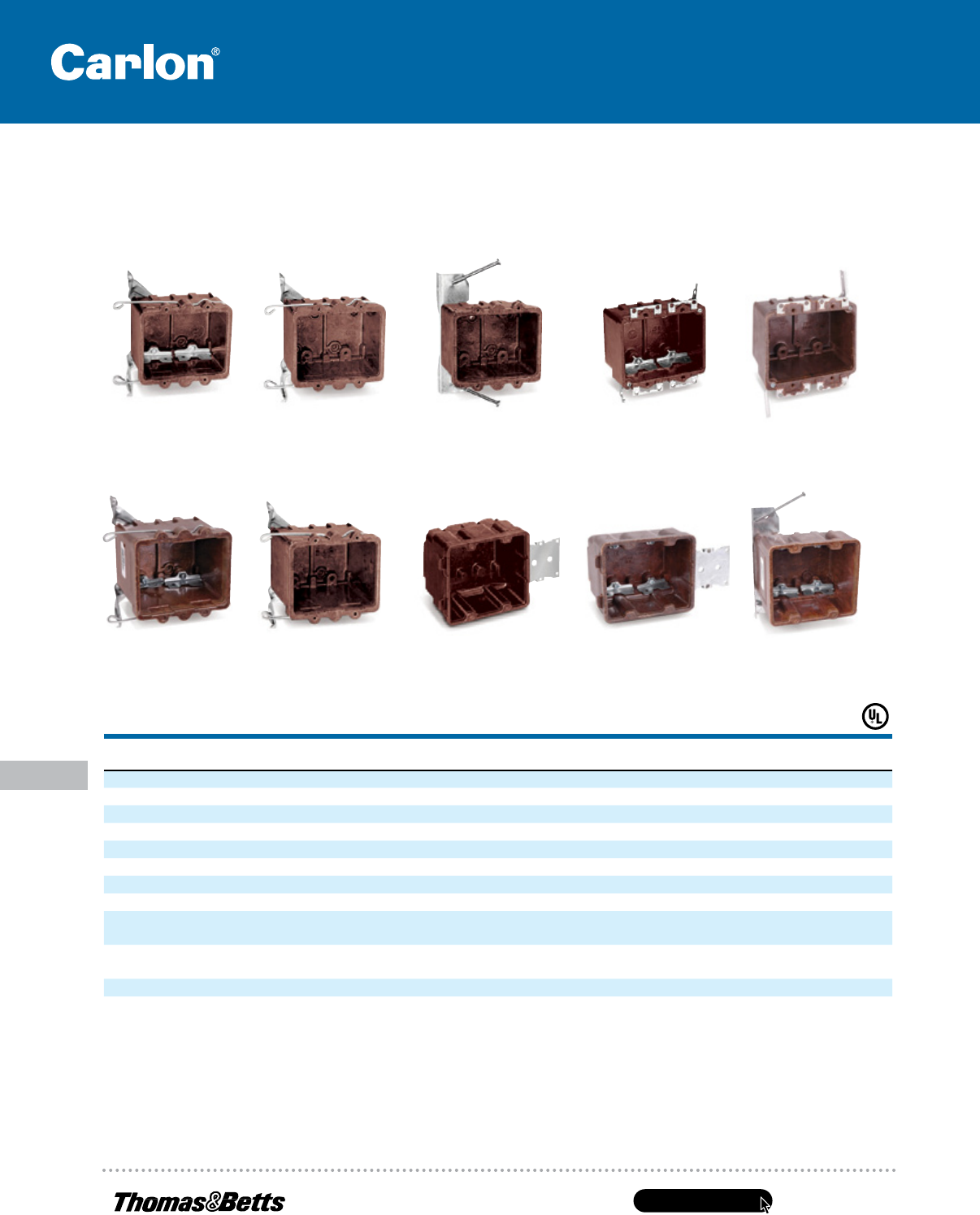

Phenolic Boxes
Boxes & Covers — Carlon
®
Non-Metallic Boxes
6062-402
7002-2 7002-202
7072-N027072-2 6062-4-UB7072-202
2002-738
Two-Gang Brackets 24.0–34.0 Cu. In.
2002-R-C2002-738-C
CAt. No. size Cu. iN. MouNtiNg MeANs DesCriptioN DiMeNsioNs (iN.)
stD.
CtN.
7072-2 24.0 #2 Bottom Bracket and Wire Support High Clamps 3
5
⁄16 L x 4 W x 2
3
⁄4 D 50
7072-202 24.0 #2 Bottom Bracket and Wire Support #36 Clamps, Bulk Packed 3
5
⁄16 L x 4 W x 2
3
⁄4 D 50
7072-N02 24.0 “N” Bracket #36 Clamps 3
5
⁄16 L x 4 W x 2
3
⁄4 D 50
6062-402 25.0 Ears, #4 Swing Bracket #36 Clamps, Bulk Packed 3
3
⁄8 L x 4
3
⁄16 W x 2
1
⁄2 D 50
6062-4-uB 25.0 Ears, #4 Swing Bracket High Clamps 3
3
⁄8 L x 4
3
⁄16 W x 2
1
⁄2 D 50
6062-4-uB-sQ 25.0 Angled Screws High Clamps 3
3
⁄8 L x 4
3
⁄16 W x 2
1
⁄2 D 50
7002-2 32.5 #2 Bottom Bracket and Wire Support High Clamps 3
1
⁄4 L x 4 W x 3
5
⁄8 D 50
7002-202 32.5 #2 Bottom Bracket and Wire Support #36 Clamps, Bulk Packed 3
1
⁄4 L x 4 W x 3
5
⁄8 D 50
2002-738 34.0
3
/8" Offset Brackets for Wood/Steel Studs
& #36 Clamps, Bulk Packet
3
⁄8" Offset Wallboard Tabs 3
11
⁄16 L x 4
3
⁄16 W x 3
1
⁄4 D 50
2002-738-C 34.0
3
/8" Offset Brackets for Wood/Steel Studs
Tabs & High Clamps
3
⁄8" Offset Wallboard 3
11
⁄16 L x 4
3
⁄16 W x 3
1
⁄4 D 50
2002-r-C 34.0 “R” Bracket High Clamps 3
5
⁄8 L x 4
3
⁄32 W x 3
1
⁄4 D 50
