Polycarbonate Boxes
Boxes & Covers — Carlon
®
Non-Metallic Boxes

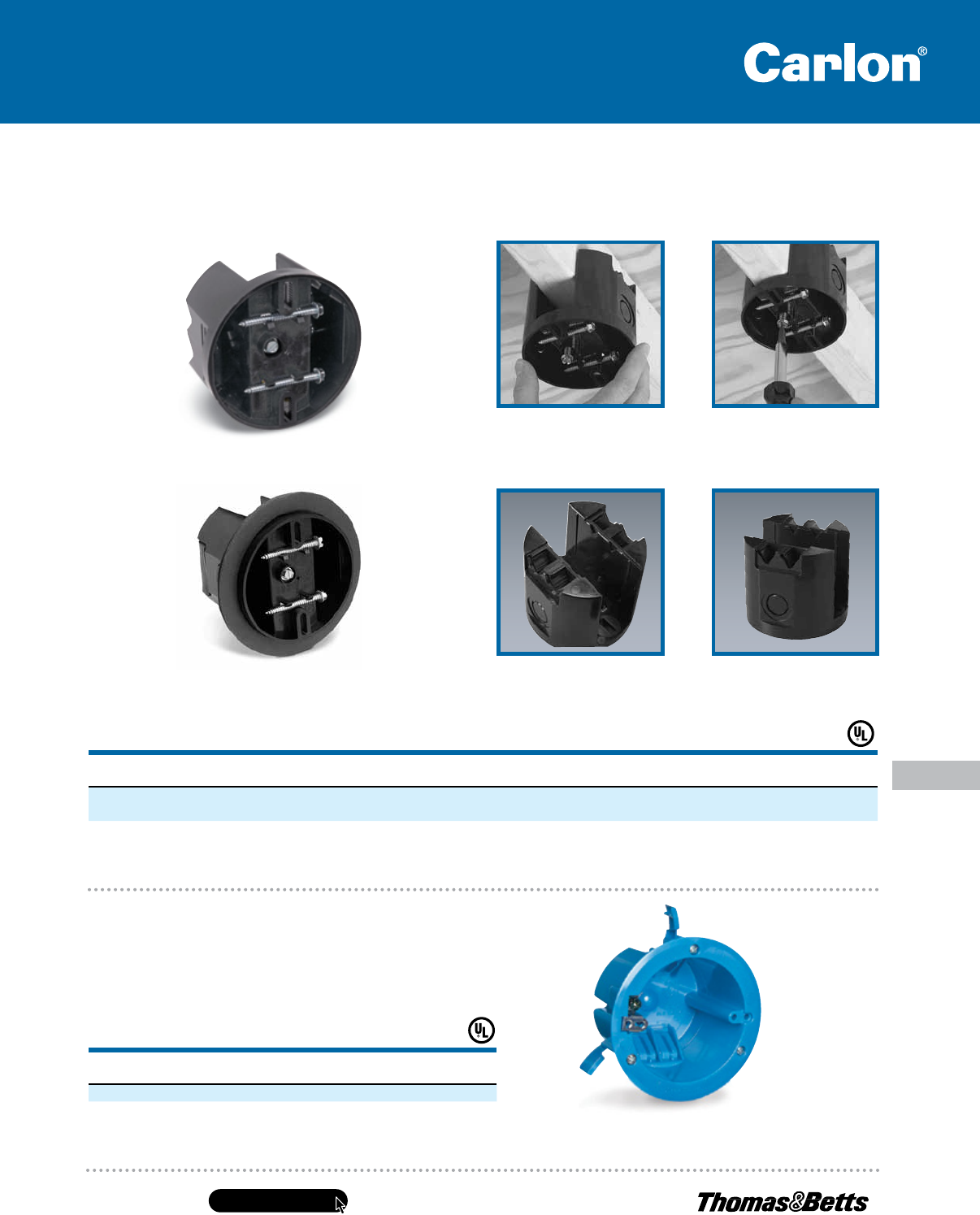

Saddle-Type Ceiling Fan Boxes
Easy press-fit onto the joist. Integrally
molded ribs grip the joist and stop the
box from falling.
Just one hand is required to mount
the box using the pre-located
mounting screw.
Integrally molded cable V-clamps
provide easy and secure clamping
for non-metallic cables.
CFB-16 features
1
⁄2" KOs in addition
to V-clamps.
CFB-12
CFB-16
4" Round 18.0 Cu. In.
CAT. NO.
SIZE
CU. IN. MOUNTING MEANS DESCRIPTION
DIMENSIONS
(IN.)
STD.
CTN.
B618R-UPC • 18.0 Swing Clamps — 4
1
⁄4 Dia. 100
B618RP-UPC • 18.0 Swing Clamps Ground Lug 4
1
⁄4 Dia. 100
•
Not UL Classified for Fire Resistance or used for fixture support in the ceiling.
Old Work
Saddle-Type Fan 12.0–16.0 Cu. In.
CAT. NO.
SIZE
CU. IN. MOUNTING MEANS DEPTH (IN.)
STD.
CTN.
CFB-12 • 12.0 Non-Metallic Saddle-Type Ceiling Fan Box with V-Clamps
for Non-Metallic Sheathed Cable
2
1
⁄4 50
CFB-16 • 16.0 Non-Metallic Saddle-Type Ceiling Fan Box with V-Clamps
for Non-Metallic Sheathed Cable and Two
1
⁄2" KOs
2
1
⁄4 50
• Listed for fan support up to 70 lbs. and fixture support up to 70 lbs.
B618R-UPC
