Polycarbonate Boxes
Boxes & Covers — Carlon
®
Non-Metallic Boxes

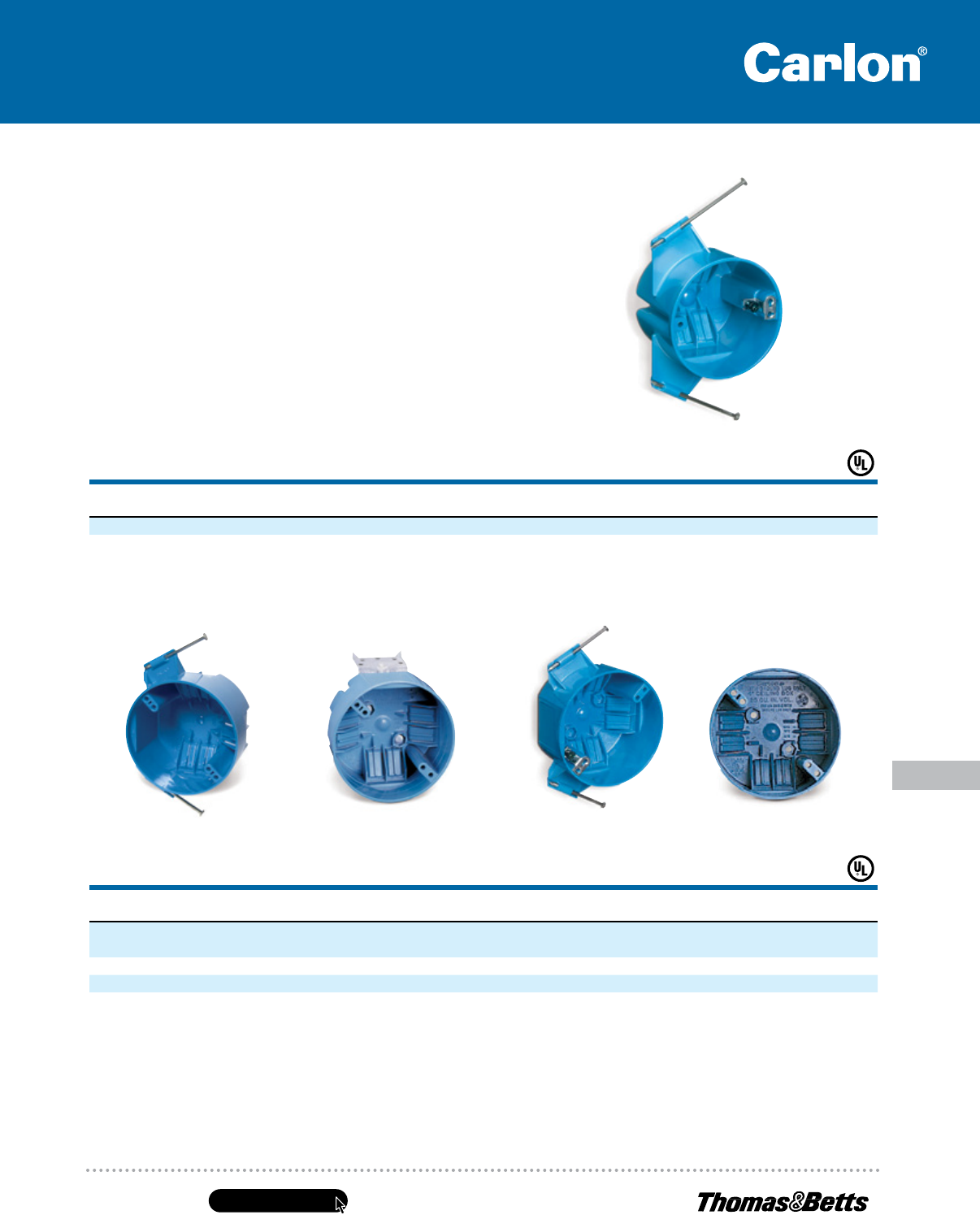

B520A-UPC B520P-UPCB620L-UPC B720R-SHK
35 lbs. maximum fan weight
3/0–4/0 Combination 20 Cu. In.
CAT. NO.
SIZE
CU. IN. MOUNTING MEANS DESCRIPTION DIMENSIONS (IN.)
STD.
CTN.
B520A-UPC • 20.0 Captive Nails Ground Lug and Screw Attached 4 Dia. x 2
1
⁄4 D 75
Fixture Spacing for 2
3
⁄4" and 3"
B520P-UPC • 20.0 Captive Nails Ground Lug and Screw Attached 4 Dia. x 2
1
⁄4 D 75
B620L-UPC • 20.0 Metal L Bracket Fixture Spacing for 2
3
⁄4" and 3
1
⁄2" 4 Dia. x 2
1
⁄4 D 100
B720r-SHK • 20.0 Mounting Screws — 4 Dia. x 2
1
⁄4 D 18
• Listed for fixture support up to 50 lbs.
3/0 18 Cu. In.
CAT. NO.
SIZE
CU. IN. MOUNTING MEANS DESCRIPTION DIMENSIONS (IN.)
STD.
CTN.
B518A-UPC • 18.0 Captive Nails — 3 Dia. x 2
3
⁄4 D 75
B518P-UPC • 18.0 Captive Nails Ground Lug and Screw Attached 3 Dia. x 2
3
⁄4 D 75
• Listed for fixture support up to 50 lbs.
B518P-UPC
