A-85

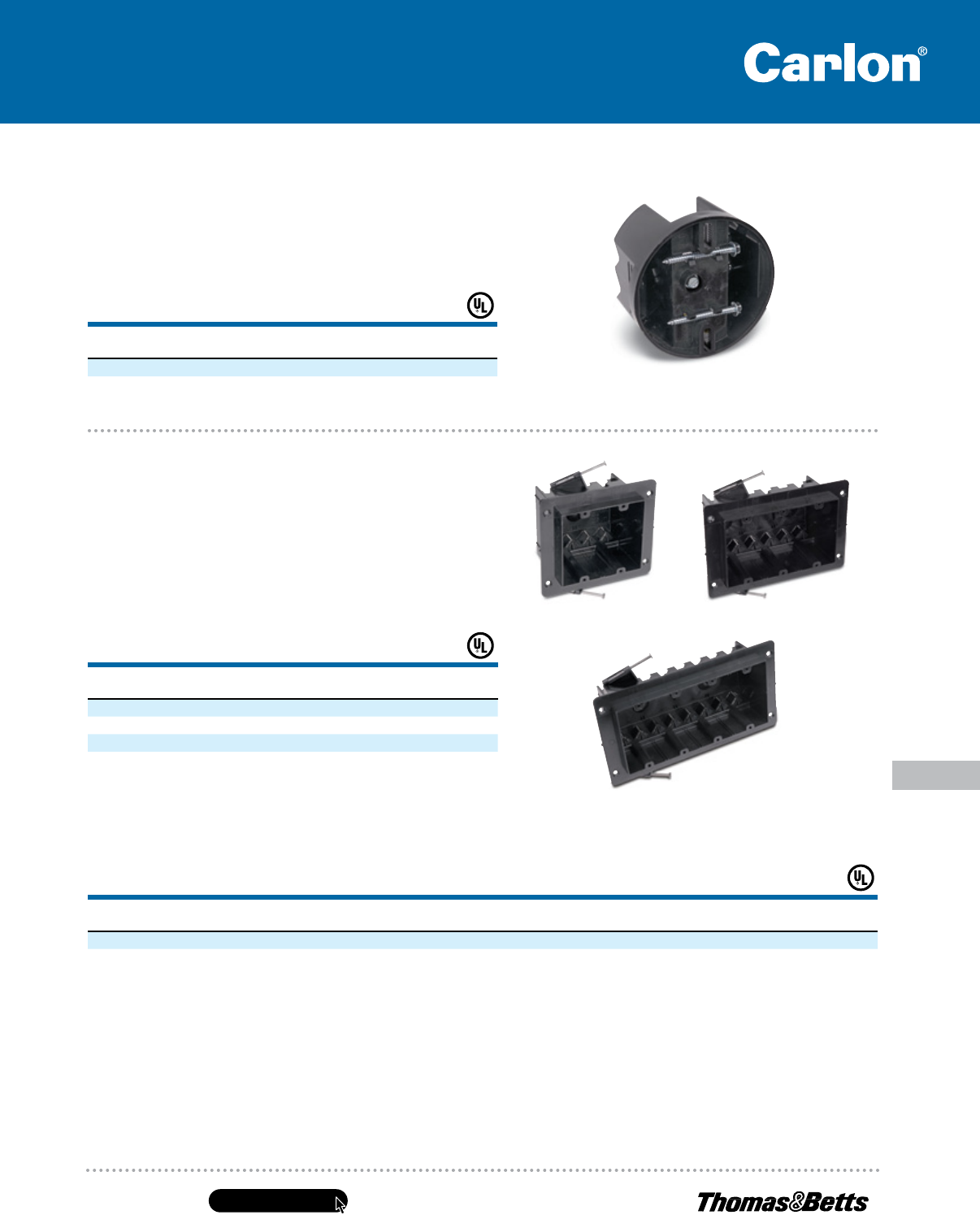

Polycarbonate Boxes
Boxes & Covers — Carlon
®
Non-Metallic Boxes
CAT. NO. DESCRIPTION
STD.
CTN.
FNP Voltage Partition for NG & FN Series Multi-Gang Boxes 50
NG-354-V
NG-460-V
NG-236-V
Universal Flanged Nail-On Boxes
Two-, Three- and Four-Gang
CAT. NO.
SIZE
CU. IN. MOUNTING MEANS DESCRIPTION DIMENSIONS (IN.)
STD.
CTN.
NG-236-V • 36.0 Angled Side Nails 2-Gang Wall 3
1
⁄2 L x 4 W x 3
1
⁄4 D 50
NG-354-V • 54.0 Angled Side Nails 3-Gang Wall 3
1
⁄2 L x 5
3
⁄4 W x 3
1
⁄4 D 20
NG-460-V •* 60.0 Angled Side Nails 4-Gang Wall 3
1
⁄2 L x 7
1
⁄2 W x 2
3
⁄4 D 10
• NG Boxes have
1
⁄2" offset wallboard flange and V-type cable entry.
* Not UL Classified for fire wall and/or fire ceiling.
CAT. NO.
SIZE
CU. IN. MOUNTING MEANS DESCRIPTION DIMENSIONS (IN.)
STD.
CTN.
CFB-16-F 16.0 Center Screw Ceiling Fan/Fixture 4 L x 4 W x 3
5
⁄16 D 50
Listed for fan support up to 70 lbs. and fixture support up to 70 lbs.
Saddle-Type Fan/Fixture 16.0 Cu. In.
CFB-16-F
Voltage Partition
