A-84

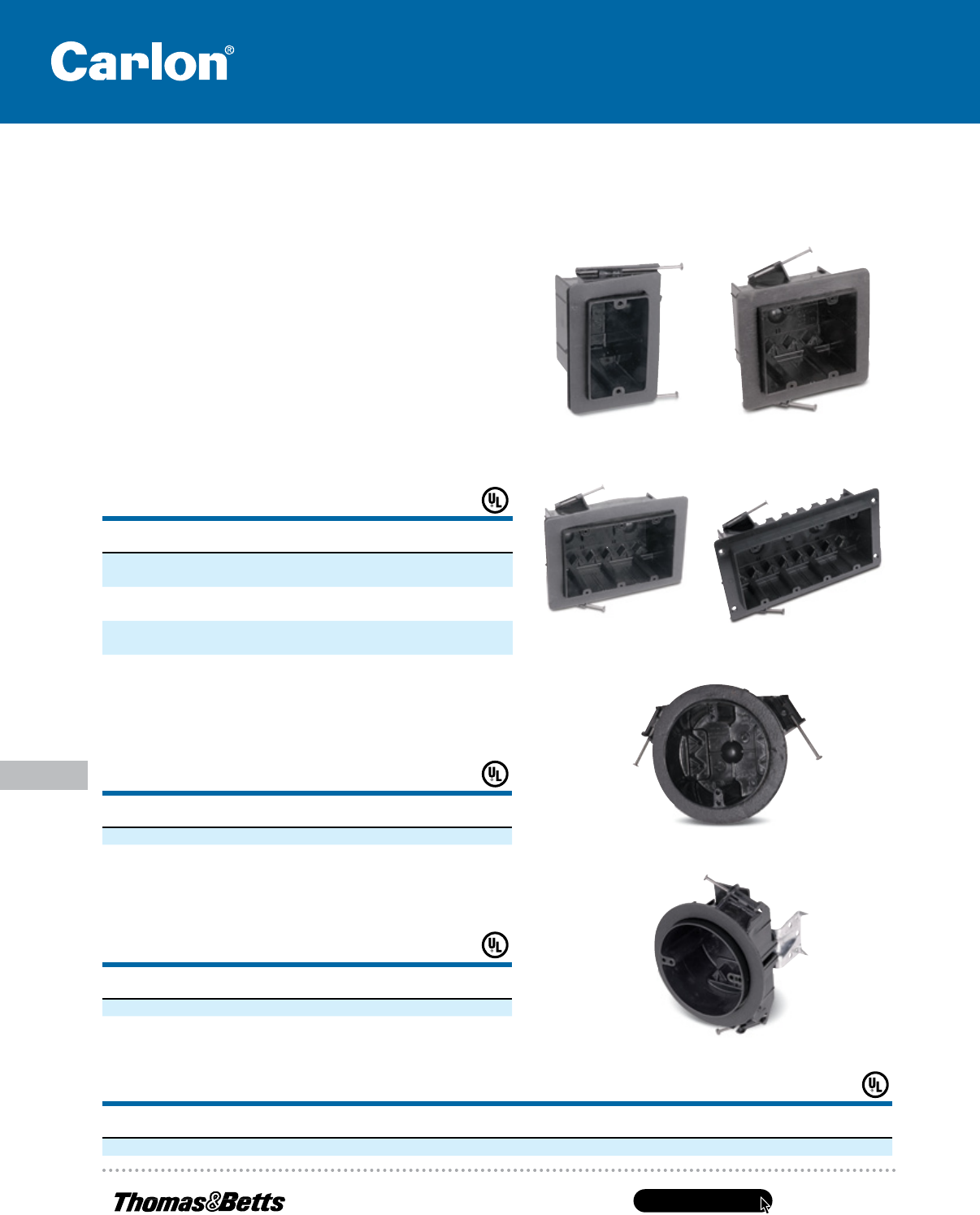

Polycarbonate Boxes
Boxes & Covers — Carlon
®
Non-Metallic Boxes
Ceiling Fan/Fixture 26.0 Cu. In.
CAT. NO.
SIZE
CU. IN. MOUNTING MEANS DESCRIPTION DIMENSIONS (IN.)
STD.
CTN.
FN-CFB 26.0 #3 Bracket — 4 L x 4 W x 2
3
⁄4 D 50
Listed for fan support up to 35 lbs. and fixture support up to 50 lbs.
FN-CFB
Energy-Efficient Vapor Barrier Boxes
• High-strength polycarbonate
construction — will not
shatter when cold or distort
in heat
• V-clamps provide self-
clamping cable entry (multi-
gang and fan/fixture box)
•
1
⁄2" offset flange to ensure
a flush fit in
1
⁄2" drywall
• Angled side nails for rapid
installation
• Pre-drilled flanges for
additional mounting options
Vapor-barrier boxes are designed to meet the energy-efficiency requirements of
modern homes. They feature a drywall flange covered with a foam gasket and
additional gaskets over the cable entry points. These gaskets provide a vapor-tight
seal, preventing the free flow of air through the box. This helps control heating
costs in the winter and cooling costs in the summer.
One-, Two-, Three- and Four-Gang
CAT. NO.
SIZE
CU. IN. MOUNTING MEANS DESCRIPTION DIMENSIONS (IN.)
STD.
CTN.
FN-23 22.5 Angled Side Nails Vapor Barrier 3
5
⁄8 L x
2
1
⁄4 W x 3
5
⁄8 D
50
FN-236-V 36.0 Angled Side Nails Vapor Barrier 3
1
⁄2 x
4 x 3
1
⁄4 D
50
FN-354-V 54.0 Angled Side Nails Vapor Barrier 3
1
⁄2 x
5
5
⁄8 x 3
1
⁄4 D
20
FN-460-V* 60.0 Angled Side Nails Vapor Barrier 3
1
⁄2 x
7
1
⁄2 x 2
3
⁄4 D
10
*Not UL Classified for fire wall and/or fire ceiling.
Ceiling Fixture Box 26.0 Cu. In.
CAT. NO.
SIZE
CU. IN. MOUNTING MEANS DESCRIPTION DIMENSIONS (IN.)
STD.
CTN.
FN-426-C-V 26.0 Angled Side Nails — 4 L x 4 W x 2
3
⁄4 D 50
Listed for fixture support up to 50 lbs.
FN-460-V
FN-23
FN-354-V
FN-236-V
CAT. NO. DESCRIPTION
STD.
CTN.
FNP Voltage Partition for NG & FN Series Multi-Gang Boxes 50
FN-426-C-V
Voltage Partition
