A-79
Carlon
®
SuperBlue
®
Boxes

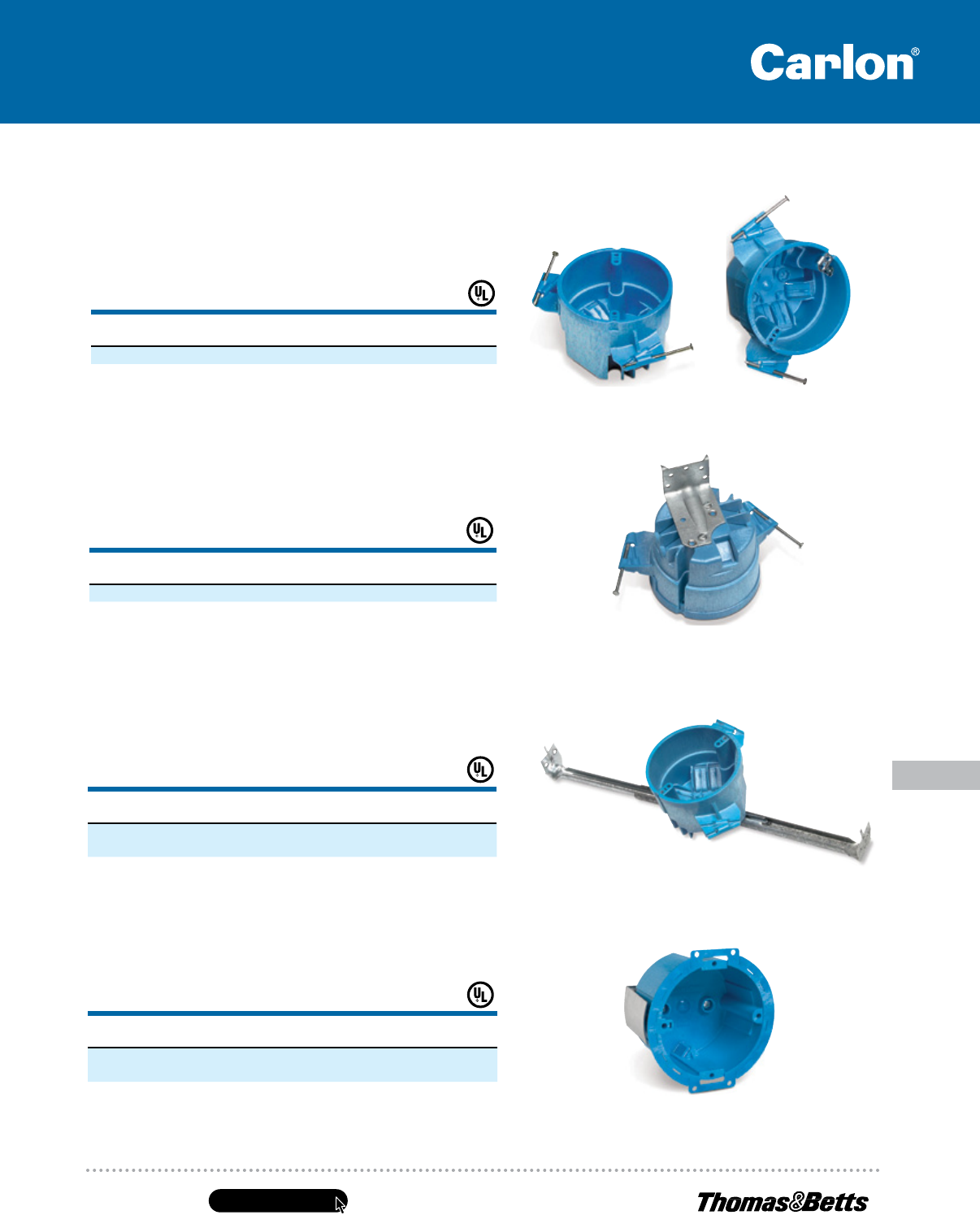

Boxes & Covers — Carlon
®
Non-Metallic Boxes
Ceiling Boxes
BH525A-UPC BH525P
BH525L
BH525H
BH614R
3/0–4/0 Combination 25.0 Cu. In.
CAT. NO.
SIZE
CU. IN. MOUNTING MEANS DESCRIPTION
DIMENSIONS
(IN.)
STD.
CTN.
BH525A-upc • 25.0 Nails Ceiling Box 4 Dia. x 3.00 D 48
BH525p • 25.0 Nails and
Grounding Lug
Ceiling Box 4 Dia. x 3.00 D 24
• Listed for fixture support up to 50 lbs.
Fan Box 25.0 Cu. In.
CAT. NO.
SIZE
CU. IN. MOUNTING MEANS DESCRIPTION
DIMENSIONS
(IN.)
STD.
CTN.
BH525L • 25.0 Nails Ceiling Fan Box 4 Dia. x 3.06 D 24
BH525Lp • 25.0 Grounding Lug
with Nails
Ceiling Fan Box 4 Dia. x 3.00 D 24
• Listed for fan support up to 35 lbs. and fixture support up to 50 lbs.
Ceiling Box with Hanger Bar 25.0 Cu. In.
CAT. NO.
SIZE
CU. IN. MOUNTING MEANS DESCRIPTION
DIMENSIONS
(IN.)
STD.
CTN.
BH525H • 25.0 Hanger Bar
11
1
⁄2"–18
1
⁄2"
Ceiling Box 4 Dia. x 2.95 D 20
BH525Hp • 25.0 Hanger Bar 11
1
⁄2"–
18
1
⁄2", Grounding Lug
Ceiling Box 4 Dia. x 2.95 D 20
• Listed for fixture support up to 50 lbs.
3
1
⁄ 2 " 14.5 Cu. In.
CAT. NO.
SIZE
CU. IN. MOUNTING MEANS DESCRIPTION
DIMENSIONS
(IN.)
STD.
CTN.
BH614R •
†
14.5 Base, Ears &
Snap-In Bracket
Round Old/
New Work Box
3
1
⁄2 Dia. 24
BH614Rp •
†
14.5 Base, Ears &
Snap-In Bracket
Round Old/New Work
Box w/ Ground Lug
3
1
⁄2 Dia. 24
• Listed for wall fixture support up to 10 lbs.
†
Tighten screws to 10 in.-lbs.
