A-78
Carlon
®
SuperBlue
®
Boxes

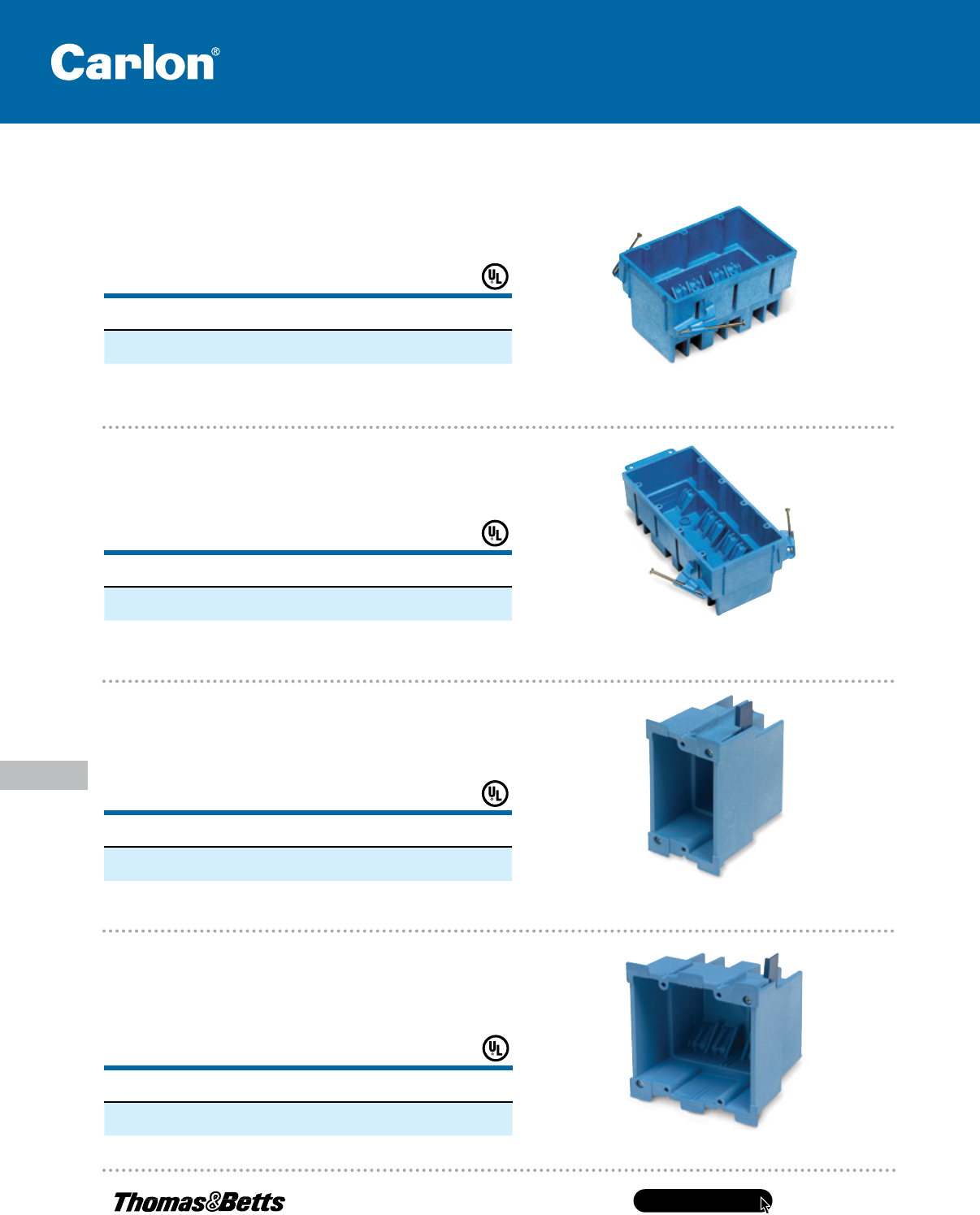

Boxes & Covers — Carlon
®
Non-Metallic Boxes
Three-Gang 53 Cu. In.
CAT. NO.
SIZE
CU. IN. MOUNTING MEANS DESCRIPTION DIMENSIONS (IN.)
STD.
CTN.
BH353A 53.0 Nails Three-Gang 3.53 L x 5.66 W
x 3.50 D
24
BH353S 53.0 Screws Three-Gang 3.53 L x 5.66 W
x 3.50 D
24
One-Gang 18.0 Cu. In.
CAT. NO.
SIZE
CU. IN. MOUNTING MEANS DESCRIPTION
DIMENSIONS
(IN.)
STD.
CTN.
BH118R • 18.0 Mounting Ears &
Swing Clamps
One-Gang 4.30 L x 2.56 W
x 3.64 D
36
• Not UL Classified for Fire Resistance.
Two-Gang 34.0 Cu. In..
CAT. NO.
SIZE
CU. IN. MOUNTING MEANS DESCRIPTION
DIMENSIONS
(IN.)
STD.
CTN.
BH234R • 34.0 Mounting Ears &
Swing Clamps
Two-Gang 4.30 L x 4.36 W
x 3.59 D
18
• Not UL Classified for Fire Resistance.
Four-Gang 64 Cu. In.
CAT. NO.
SIZE
CU. IN. MOUNTING MEANS DESCRIPTION
DIMENSIONS
(IN.)
STD.
CTN.
BH464A 64.0 Nails Four-Gang 3.53 L x 7.46 W
x 3.18 D
36
BH464S 64.0 Screws Four-Gang 3.53 L x 7.46 W
x 3.18 D
36
Three-Gang — For New Work
Four-Gang — For New Work
One-Gang — For Old Work
Two-Gang — For Old Work
BH353A
BH118R
BH234R
BH464A
