Carlon
®
SuperBlue
®
Boxes

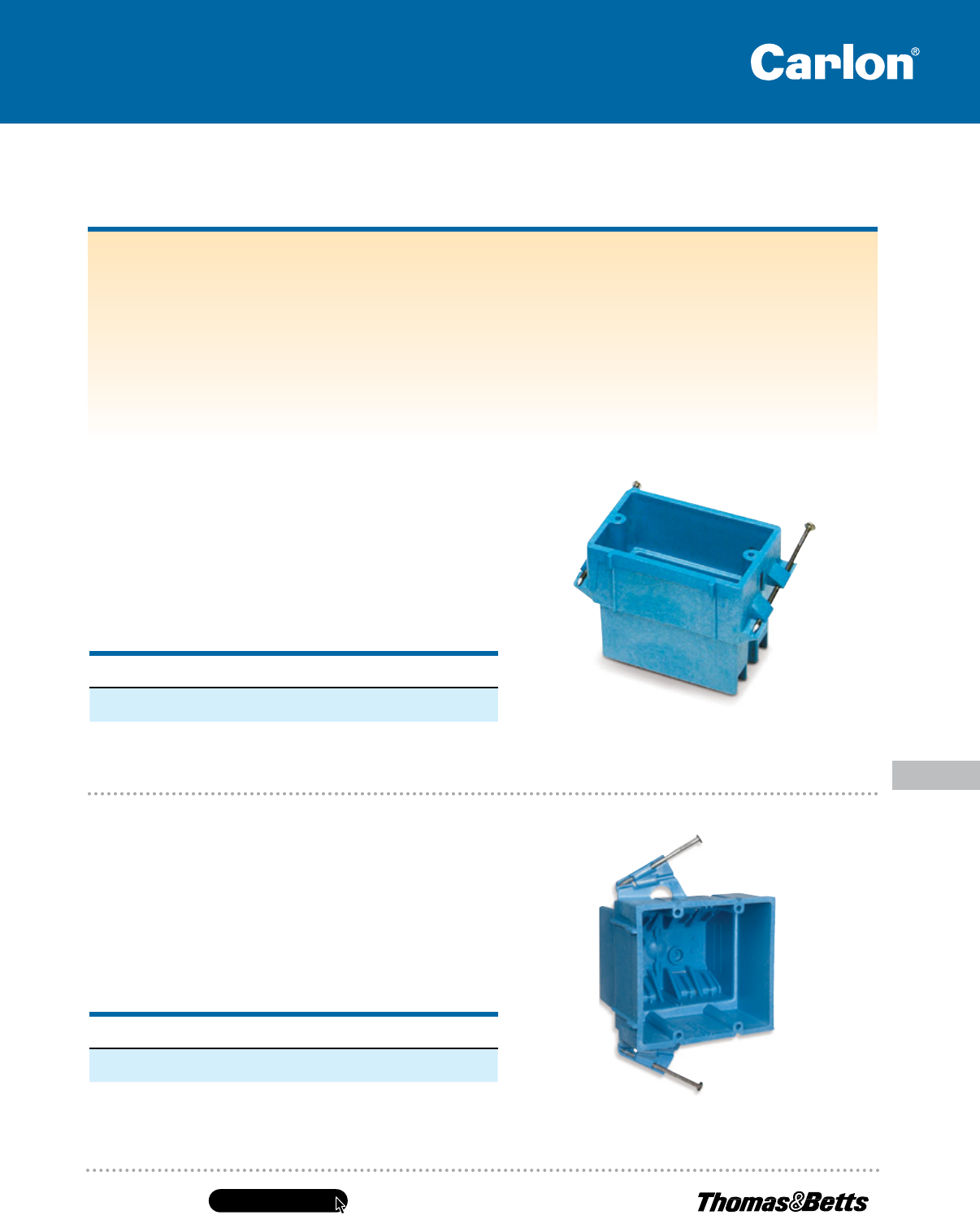

Boxes & Covers — Carlon
®
Non-Metallic Boxes
One-Gang — For New Work
BH122A-UPC
One-Gang 22.0 Cu. In.
CAT. NO.
SIZE
CU. IN. MOUNTING MEANS DESCRIPTION DIMENSIONS (IN.)
STD.
CTN.
BH122A-UPC 22.0 Nails One-Gang 3.55 L x 2.11 W
x 3.63 D
100
BH122S 22.0 Screws One-Gang 3.55 L x 2.11 W
x 3.63 D
100
Two-Gang — For New Work
BH235A
Two-Gang 35.0 Cu. In.
CAT. NO.
SIZE
CU. IN. MOUNTING MEANS DESCRIPTION DIMENSIONS (IN.)
STD.
CTN.
BH235A 35.0 Nails Two-Gang 3.55 L x 2.11 W
x 3.50 D
48
BH235S 35.0 Screws Two-Gang 3.55 L x 2.11 W
x 3.50 D
48
Combine the features of the hard-shell thermoset box and the
thermoplastic PVC-style box to create a “new” rigid non-metallic wiring
box. Molded out of specially formulated thermoplastic material, Carlon
®
SuperBlue
®
boxes are so strong they won’t crack or break in extreme
environments. So rigid that they resist flexing and hold their shape even
in the most challenging applications. The boxes are designed to nest
inside each other to take up less space on the shelf or in the truck, while
still providing the largest wirefill capacity in their class.
Carlon
®
SuperBlue
®
Boxes
• AllPVCboxesarelistedtoUL514C
• AllPVCboxesarelistedformasonrywalls
• AllPVCboxesareUL
®
Classifiedfortwo-hourfirewall
and/orfireceiling
• AllPVCboxesmeetNEMAOS-2
• AllPVCboxesarepermissibleforusewith
90°Cconductors
• ULFileE11461andR9140
