Carlon
®
Blue
™
PVC Boxes
Boxes & Covers — Carlon
®
Non-Metallic Boxes

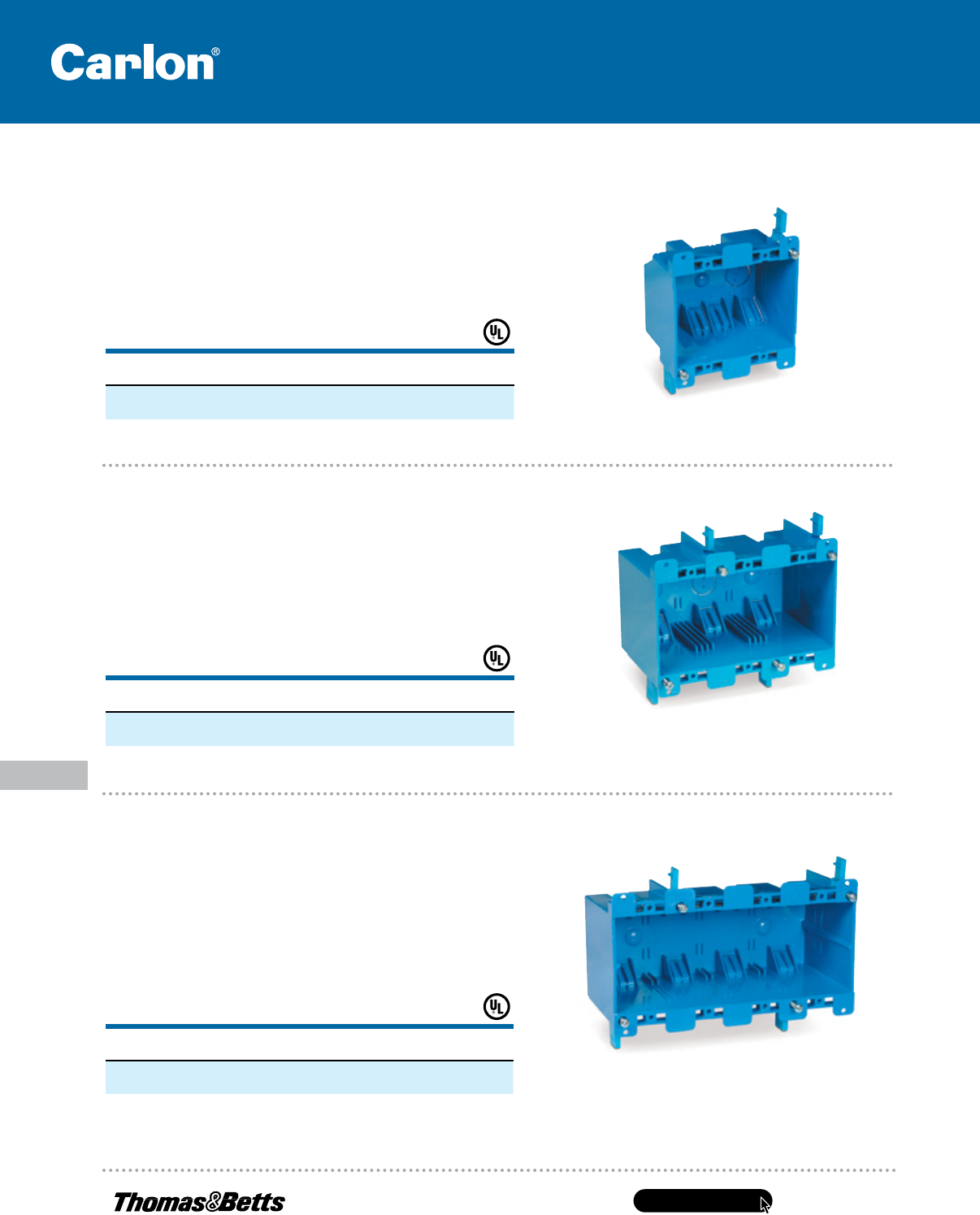

B225R-UPC
B355R
B468R
Two-Gang — For Old Work
Three-Gang — For Old Work
Four-Gang — For Old Work
Two-Gang 25.0 Cu. In.
CAT. NO.
SIZE
CU. IN. MOUNTING MEANS DESCRIPTION DIMENSIONS (IN.)
STD.
CTN.
B225R-UPC • 25.0 Mounting Ears and Two
Swing Clamps
— 3
15
⁄16 L x 3
1
⁄8 W
x 2
3
⁄4 D
30
• Not UL Classified for Fire Resistance.
Three-Gang 55.0 Cu. In.
CAT. NO.
SIZE
CU. IN. MOUNTING MEANS DESCRIPTION DIMENSIONS (IN.)
STD.
CTN.
B355R • 55.0 Mounting Ears and Two
Swing Clamps
— 5.72 L x 2.79 W
x 3.69 D
6
• Not UL Classified for Fire Resistance.
Four-Gang 68.0 Cu. In.
CAT. NO.
SIZE
CU. IN. MOUNTING MEANS DESCRIPTION DIMENSIONS (IN.)
STD.
CTN.
B468R • 68.0 Mounting Ears and Two
Swing Clamps
— 7.57 L x 2.89 W
x 3.56 D
6
• Not UL Classified for Fire Resistance.
