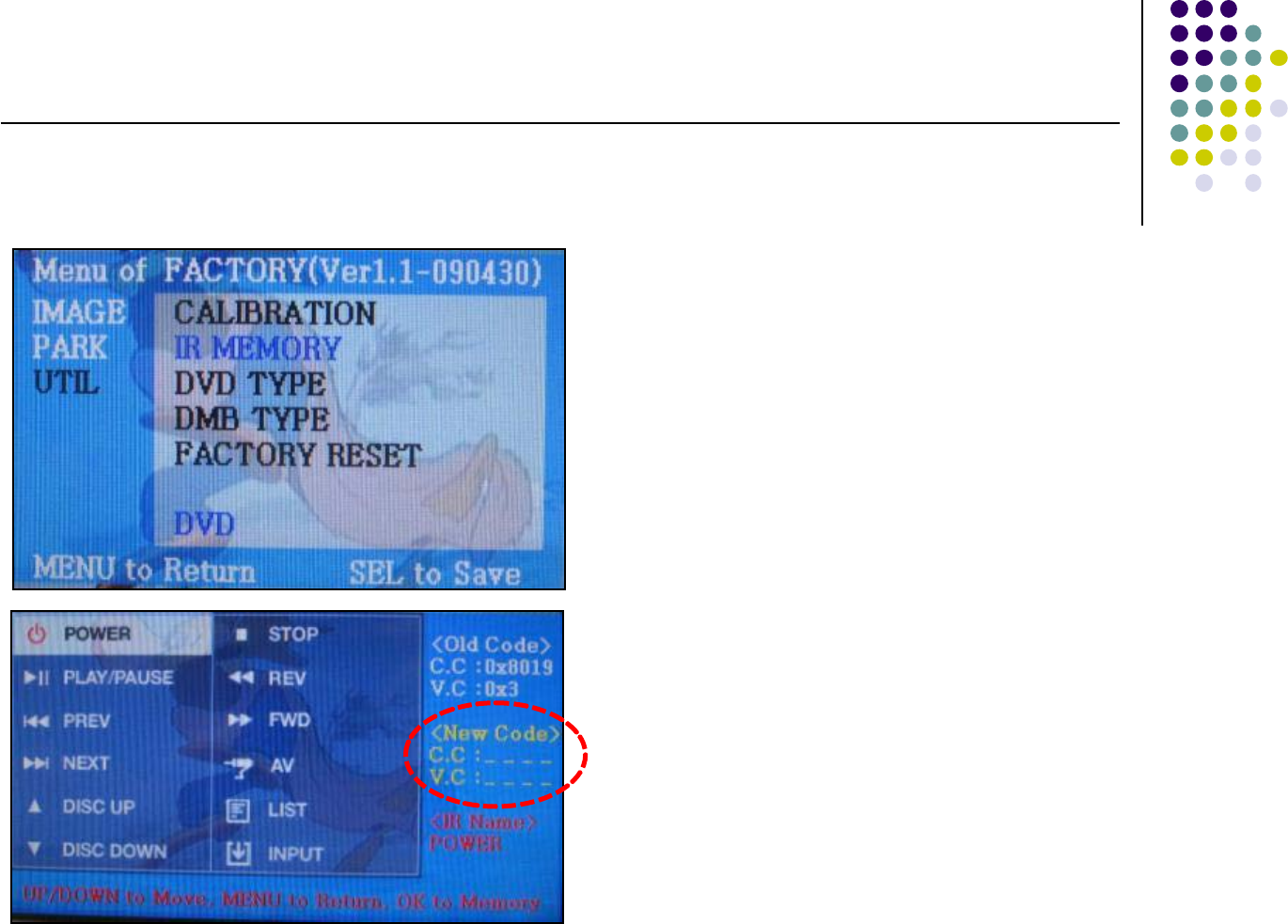

Step 1.) On Factory menu, select “IR MEMORY”
and one of DVD, DMB you desire to set.
Step 2.) When the menu as left picture is
displayed, choose one of functions displayed.
Step 3.) Confirm with pressing “OK” button of
interface remote. Then, as the right part marked in
the picture, right part in the window will blink.
Step 4.) Press one button of DVD or DMB remote
you like to use for the designated function.
Example) “DVD” IR MEMORY
1. Press “OK” button of interface, after selecting
“Power button” like left picture.
2. When the marked part in the picture blinks,
press “Power” button of DVD remote you
would like to use.
-Factory Mode : IR Memory Function
IR Memory Function? If user would like to control DVD or DMB by touch, User
can get interface memorize DVD or DMB’s remote button value via this function.
