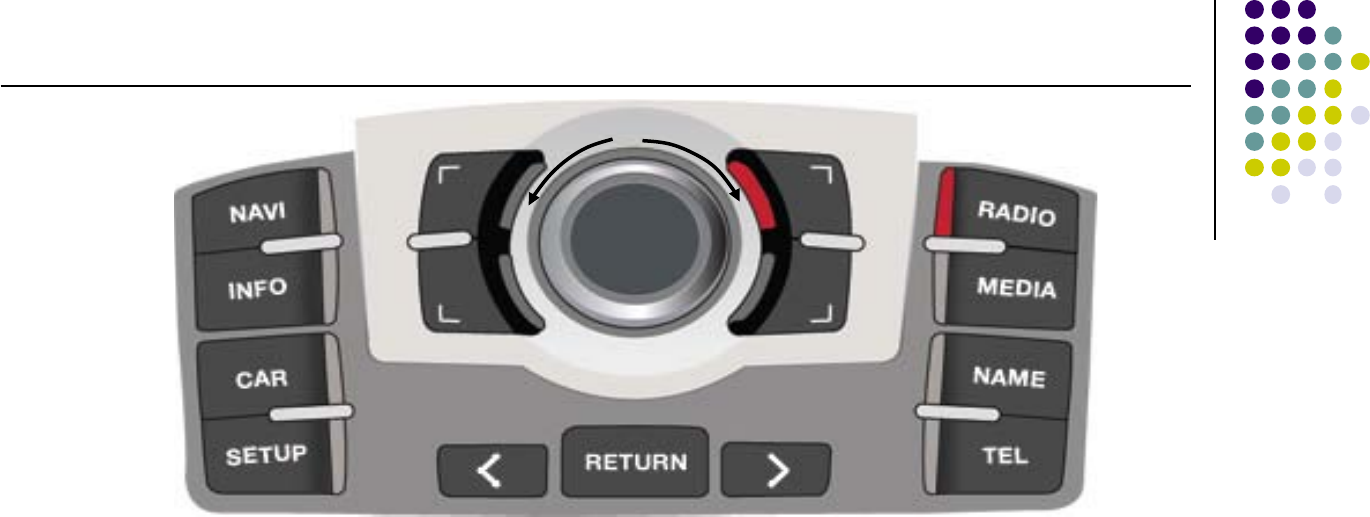

-MMI BUTTON (Optional)
<On NAVIGATION Mode>-Not Available
① Up
② Down
③ Zoom Out
④ Zoom In
⑤ OK, Menu with long press
⑥ Return, Present Place with long press
⑦ Destination set, Night Mode with Long press
⑧ Mode switching
⑨ Left
⑩ Right
①
②
③
④
⑤
⑥
⑦
⑧
⑨
⑩
<On DVD, CMMB Mode>
⑤ OK
⑨ Move to Right
⑩ Move to Left
※ Once press one of those 3 buttons,
DVD, CMMB OSD Menu will be shown
up.
