Installation guide

-DIP SW
#PIN
FUNCTION DIP S/W Selection
1 RGB INPUT MUTE
ON : Skipping RGB Mode
OFF : RGB Display
2 A/V 1 MUTE
ON : Skipping A/V 1
OFF : A/V1 Display
3 A/V 2 MUTE
ON : Skipping A/V 2
OFF : A/V2 Display
4 A/V 3 MUTE
ON : Skipping A/V 3
OFF : A/V3 Display
5 LCD TYPE
ON : 7inch LCD with 800*480 Resolution
OFF : 6.5inch LCD with 400*240 Resolution
6 N.C
7 Rear Mode
ON : External Rear Camera
OFF : OEM Rear Camera

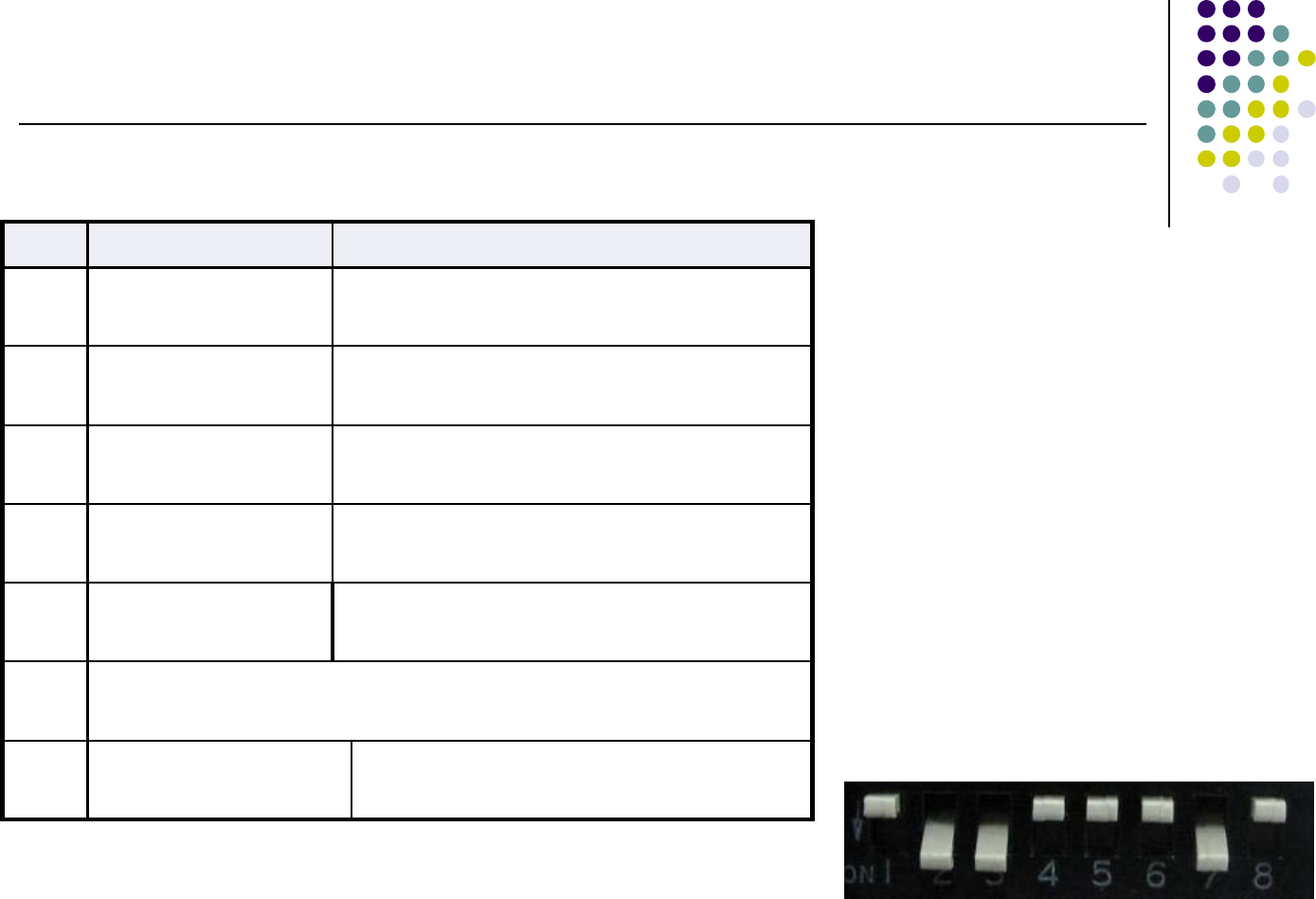

※DIP S/W Use Example
[AUDI 2009]
-. Use Input Mode : A/V3(DVD),
Navigation (RGB)
-. Rear Camera : When to be installed
on CVBS 4
-. When original Navi is not installed
▷ DIP S/W : 1  OFF
▷ DIP S/W : 2,3  ON
(INPUT MODE SKIP)
▷ DIP S/W : 4  OFF (enable A/V3)
▷ DIP S/W : 5  OFF (ON)
▷ DIP S/W : 6  OFF (ON)
▷ DIP S/W : 7  ON (enable CVBS4)
※ ON : DOWN, OFF : UP
