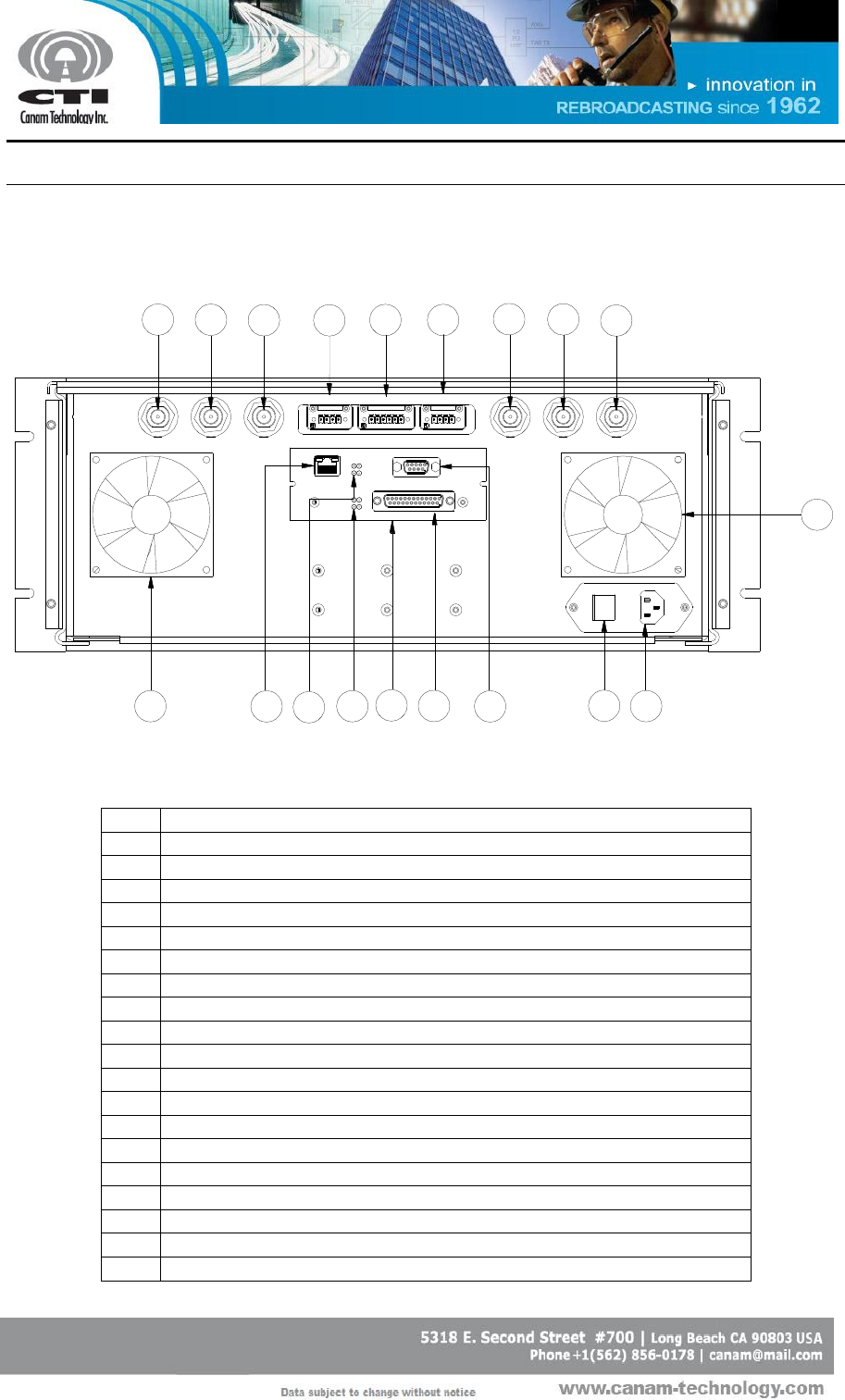

Figure 2 shows the connectors and visual status that the D.U.T rear panel has.
Table 2Table 1 contains a brief explanation.
1
2
3
4
5
6
7
8
9
19
12
11
10
15
FAN1
CONNECTOR
NO CONNECTED
FAN2
CONNECTOR
16
17
14
13
18
Figure 2 - Rear Panel details.
Table 2 – Rear Panel details.
Item
Description
1
UL Tx TEST PORT
2
DONOR/BASE T/R PORT
3
DL Rx TEST PORT
4
FAN 1 DE-01
5
AUX I/O DE-02
6
FAN 1 DE-03
7
UL Rx TEST PORT
8
SERVICE/SIDE T/R PORT
9
DL Tx TEST PORT
10
AIR EXHAUST REAR FAN#2
11
AC POWER "IEC" INLET
12
AC MAINS ON/OFF POWER SWITCH
13
(ECM) FACTORY SERIAL DEBUG PORT
14
(ECM) DB-25 I/O CONNECTOR
15
PLUGGABLE EMBEDDED CONTROL MODULE (ECM)
16
(ECM) RED LEDS (RELAY CONTACTS)
17
(ECM) GREEN LEDS STATUS INDICATORS
18
(ECM) ETHERNET 10/100 NETWORK PORT
19
AIR EXHAUST REAR FAN#1
