MARK-IVD 700MHZ NARROWBAND SIGNAL BOOSTER M4DBDA7 USER’S MANUAL
Page 6 of 11
Rev0 August/2012
Section C. PHYSICAL OVERWIEW
Figure 1 shows the visual status that the D.U.T. front panel. Table 1 contains a
brief explanation.
1
2
3
STATUS LEDs
POWER ON
SUMMARY
ALARM
GREEN = OK
RED = BAD
UPLINK
SUB-SYSTEM
ALARM
GREEN = OK
RED = BAD
DOWNLINK
SUB-SYSTEM
ALARM
GREEN = OK
RED = BAD

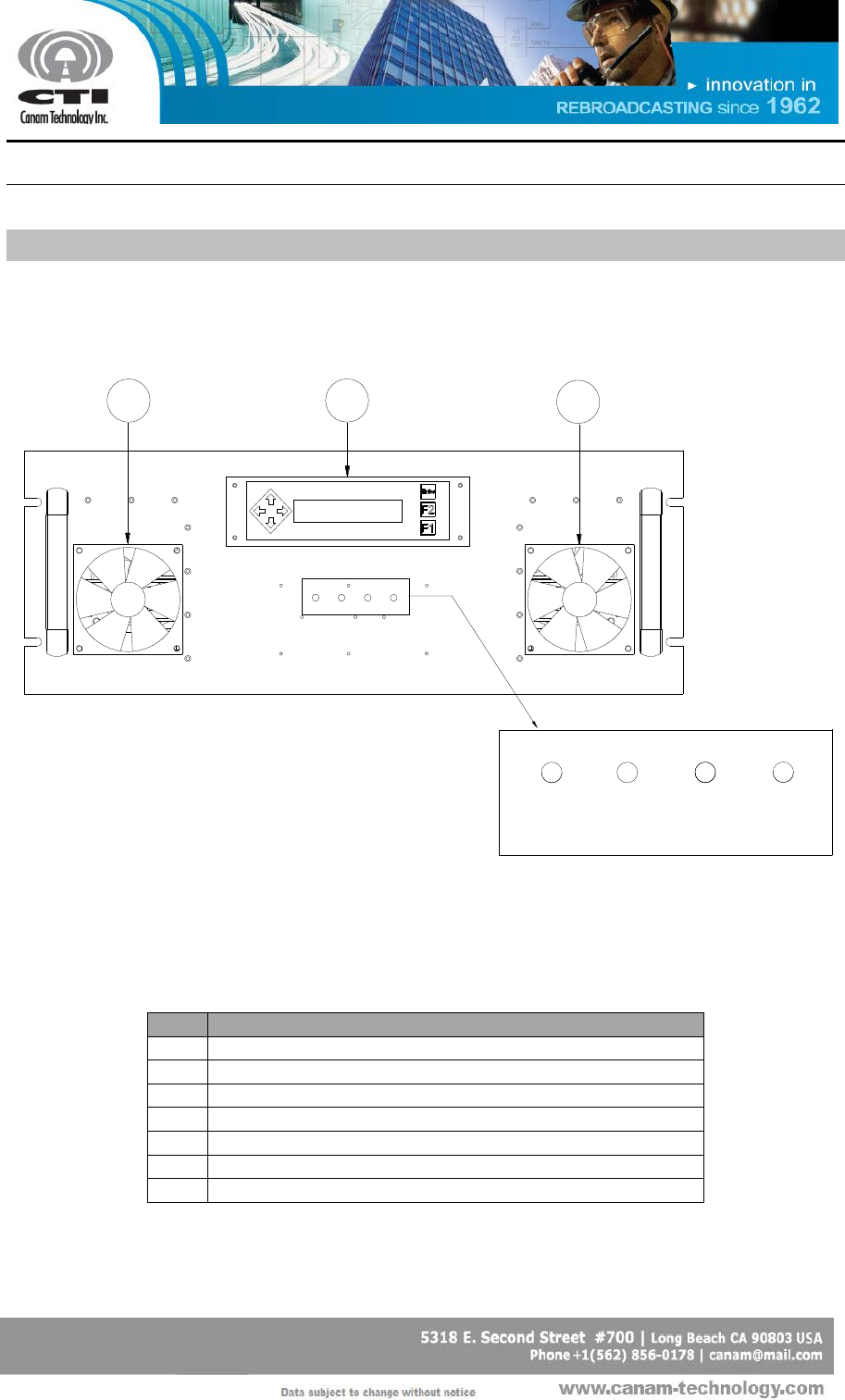

Figure 1 - Front Panel details
Table 1 – Front Panel details
Item
Description
1
Intake fan 1
2
LCD Display/Keypad
3
Intake fan 2
4
Power ON LED (Green = ok, Red = bad)
5
Summary Alarm LED (Green = ok, Red = bad)
6
Reflected Power Alarm LED (Green = ok, Red = bad)
7
Cooling Alarm LED (Green = ok, Red = bad)
