Appendix B. CNF4 Heater/Ventilator
3. Make sure the cables are cleared from the edges of the CNF4, as shown in
Figure B-3, and place the white solar shield over it. Use the four flat-head
screws provided to complete the solar shield installation to the CNF4, as
shown in Figure B-4 and B-5.

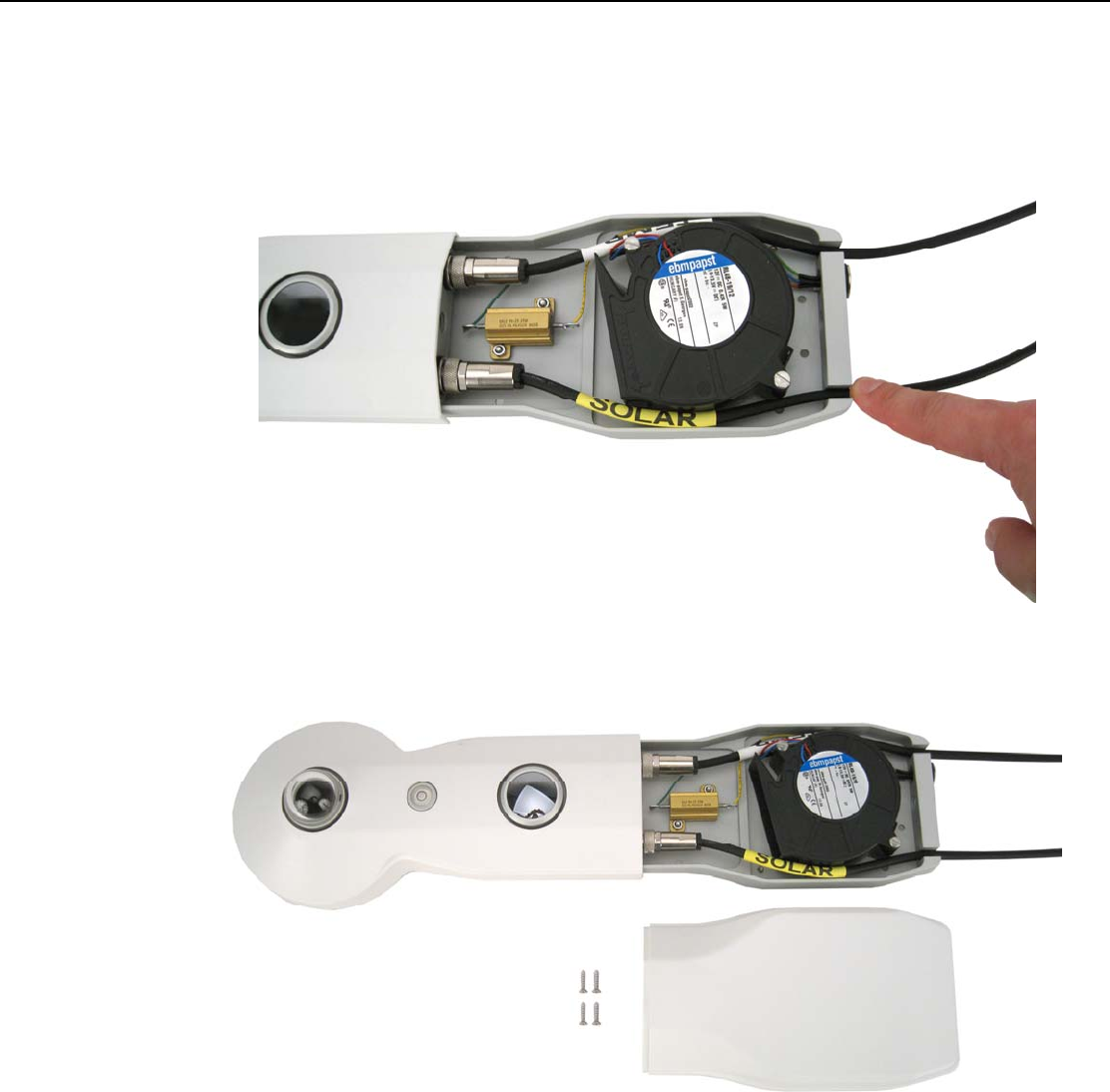

FIGURE B-3. Making sure the cables are clear from the edges.
FIGURE B-4. CNF4 solar shield and four flat-head screws.
B-5
