Appendix B. PS24 24 Ahr Power Supply and 10 x 12 inch Enclosure
3. Place the bottom strut clamp and bracket approximately 12 inches below
the top clamp. This clamp is installed with the hook side down. The
bracket might have to be moved a little to accept the enclosure bracketing,
so don’t tighten the bracket yet. FIGURE B-5 shows the top and bottom
brackets correctly positioned on the T107 pole.

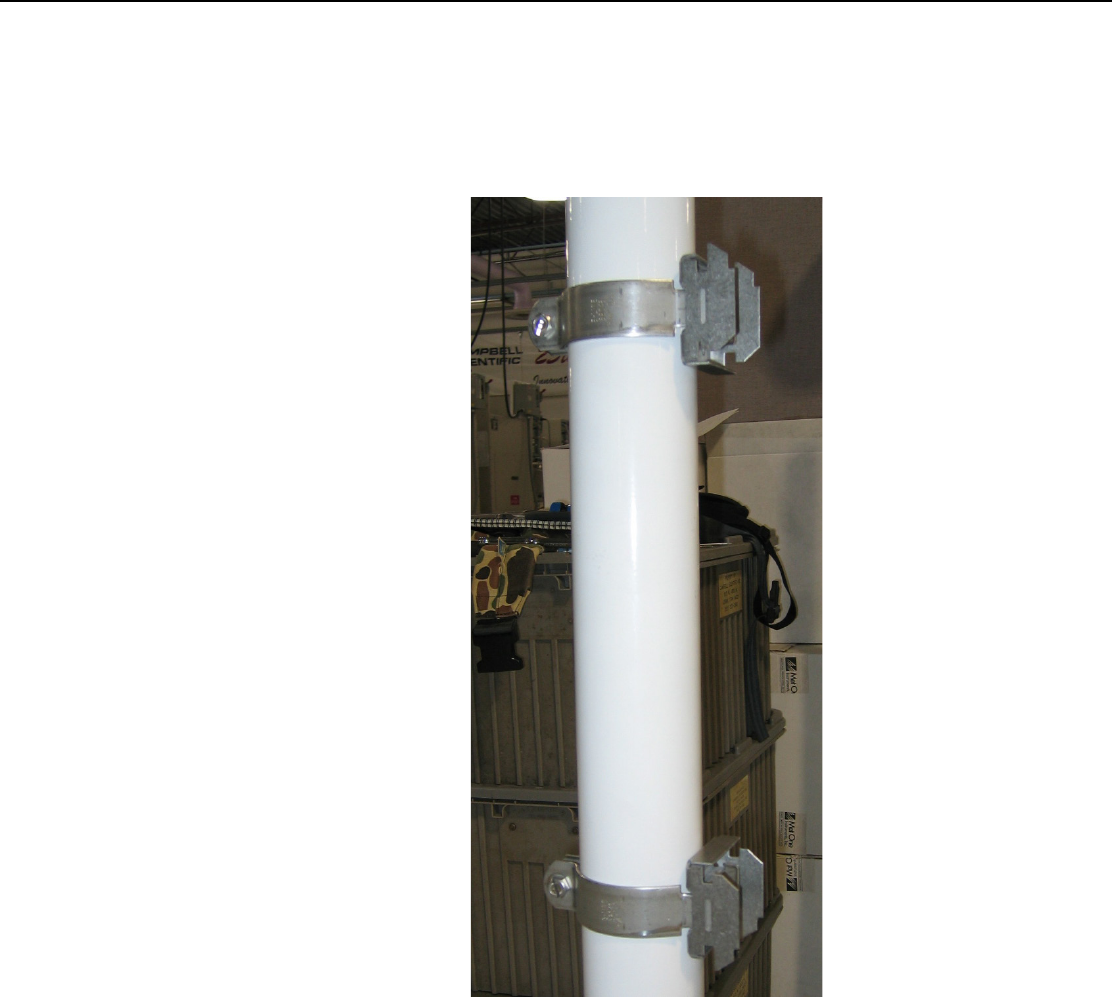

FIGURE B-5. Both Strut Clamps and Brackets on T107 Pole
B-5
