T107 Weather Station
C. If Short Cut or VisualWeather is used to create the station program double
check the wiring diagram to see if it matches the physical wiring on the
sensor connectors on the back of the enclosure.
If CRBasic is used to create the station program verify channel
assignments and multipliers.
4.2.4 Unreasonable Results Displayed in a Variable
A. Inspect the sensor for damage and/or contamination.
B. Make sure the sensor is plugged into the correct sensor connector on the
back of the enclosure.
C. If Short Cut or VisualWeather is used to create the station program double
check the wiring diagram to see if it matches the physical wiring on the
sensor connectors on the back of the enclosure.
If CRBasic is used to create the station program verify channel
assignments and multipliers. Datalogger program may need to be changed.
4.2.5 NAN or ±INF Stored in a Data Table
A. Something is wrong with the datalogger and/or sensor(s) if Short Cut or
VisualWeather was used to create the station program. Make sure the
sensor is plugged into the correct bulkhead connector.
If CRBasic is used to create the station program verify channel
assignments and multipliers. Datalogger program may need to be changed.
4.2.6 Communication Problems when using an RF450 Radio
LED Status
The RF450 has three red/green LED status indicator lights. TABLE 4-2 shows
the status of each light when the RF450 is in various states of communication.

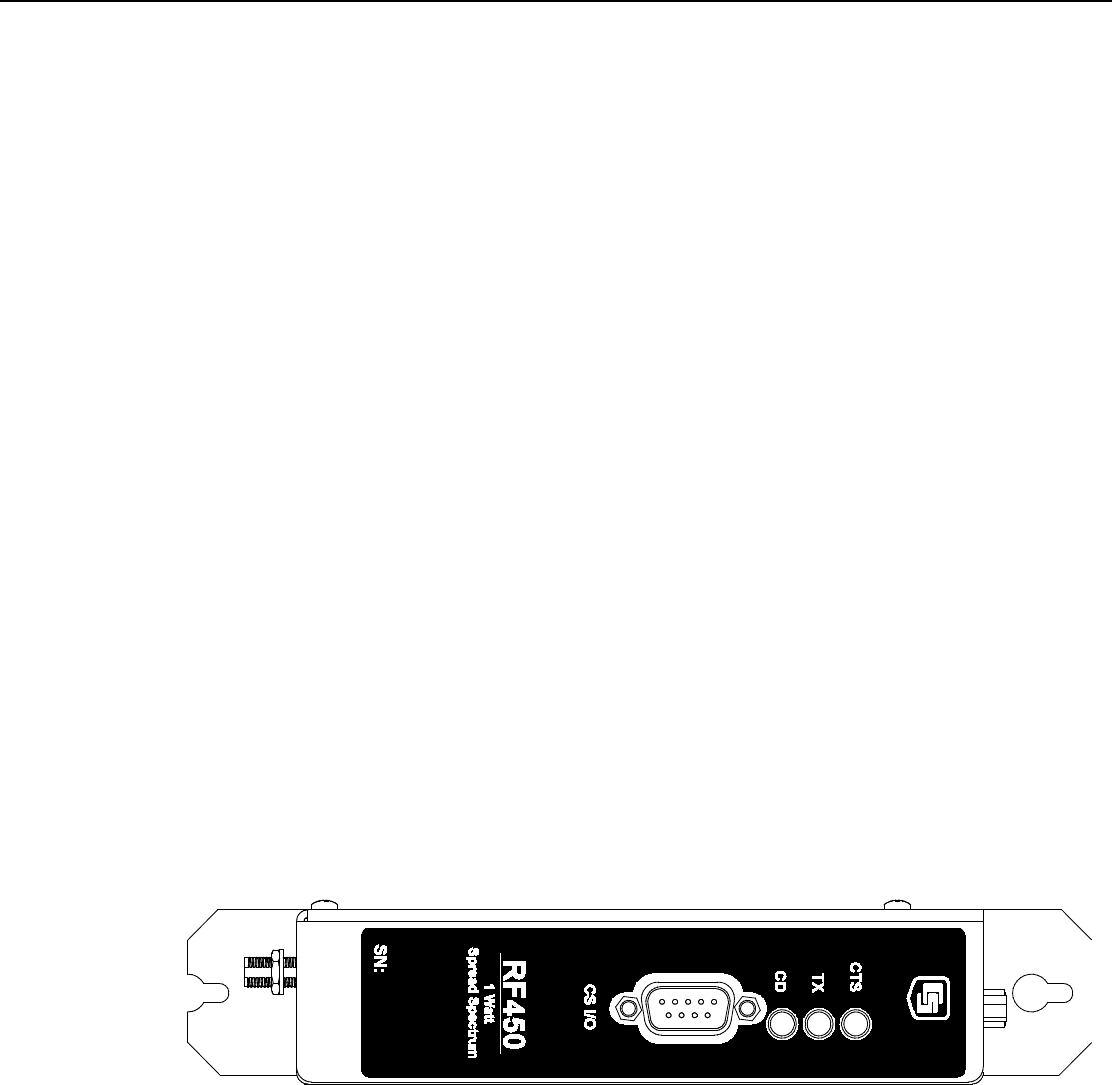

FIGURE 4-2. RF450 Front Side View
