T107 Weather Station
2.9 Restraining Cables and Sealing/Desiccating Enclosure
2.9.1 Restraining Cables
1. Loosely wire tie power, communication, and grounding cable to the wire
tie harness at the top of the back of the station. Do NOT clip back the wire
tie at this time. See FIGURE 2-45.

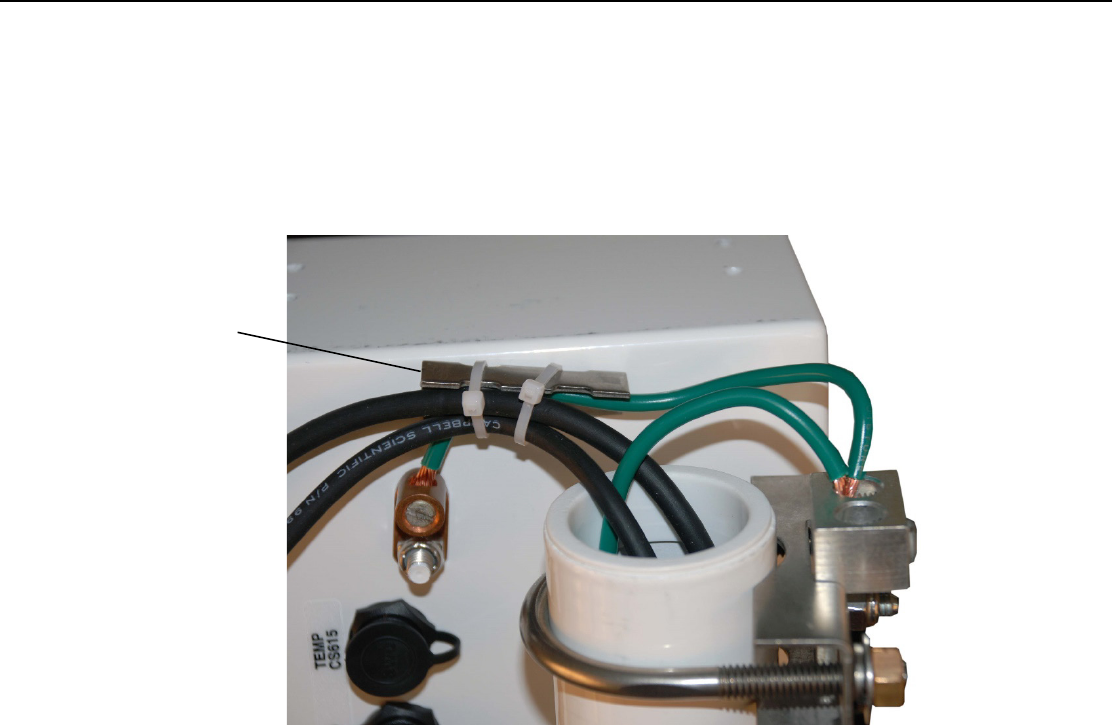

FIGURE 2-45. Cabling Strapped to Wire Tie Harness
2. Replace the connector cover. The tab at the top of the connector cover
slides into the opening on the back of the cross arm. Ensure that all cables
and connector caps are under the cover before tightening the Phillips screw
at the bottom of the cover. Make sure that all cables coming out of the top
right of the connector cover are not being pinched.
Wire Tie Harness
