T107 Weather Station
Power the station down by flipping the PS100 power switch to
“Off” before installing any communication option. Remember to
flip the switch back to “On” after enclosure installation is
completed.
1. Mount the RF450 bracket and radio into the ET enclosure using the three
existing screws. See FIGURE 2-27.
2. Thread the smaller SMA connector end of the enclosure antenna cable
underneath the battery cables and screw it to the RF antenna connector on
the RF450 radio. Attach the other end of the cable to the BNC RF
bulkhead connector in the lower right hand corner of the enclosure. Make
sure all connections are tight. See FIGURE 2-27.

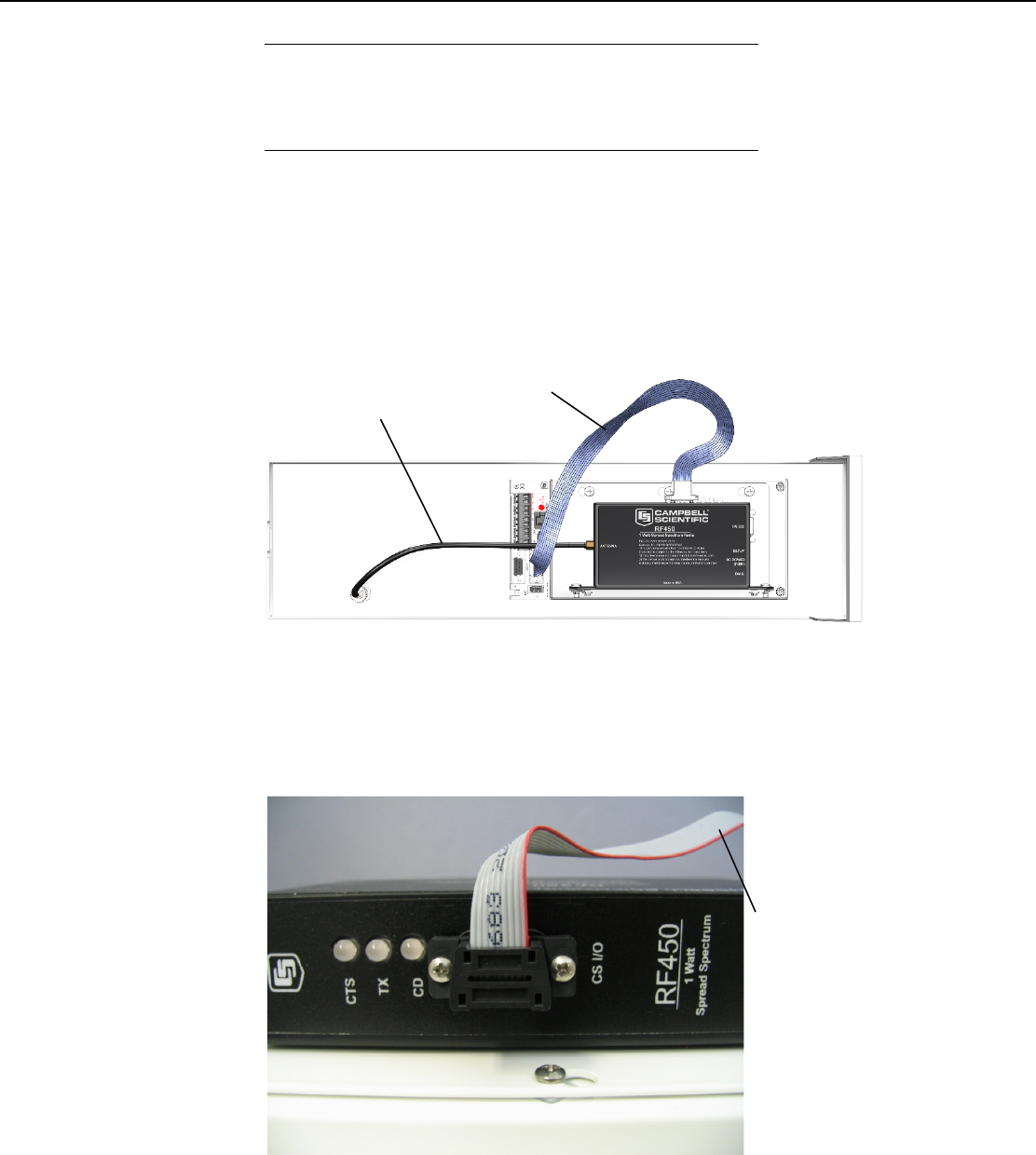

FIGURE 2-27. RF450 in T107 (battery not shown)
3. Connect the long 9-pin female end of the 10588 ribbon cable to the CS I/O
port on the RF450 radio. Screw the connector to the radio using the
provided two screws. See FIGURE 2-28.
FIGURE 2-28. Attach Ribbon Cable to RF450 CS I/O Port
NOTE
10588
Ribbon
Cable
Antenna Cable
10588 Ribbon Cable
38
