T107 Weather Station
It’s best to use Device Configuration Utility (DevConfig) and
connect directly to the station to change the CR1000
configuration. DevConfig is included with LoggerNet and can be
obtained, at no charge, from our website.

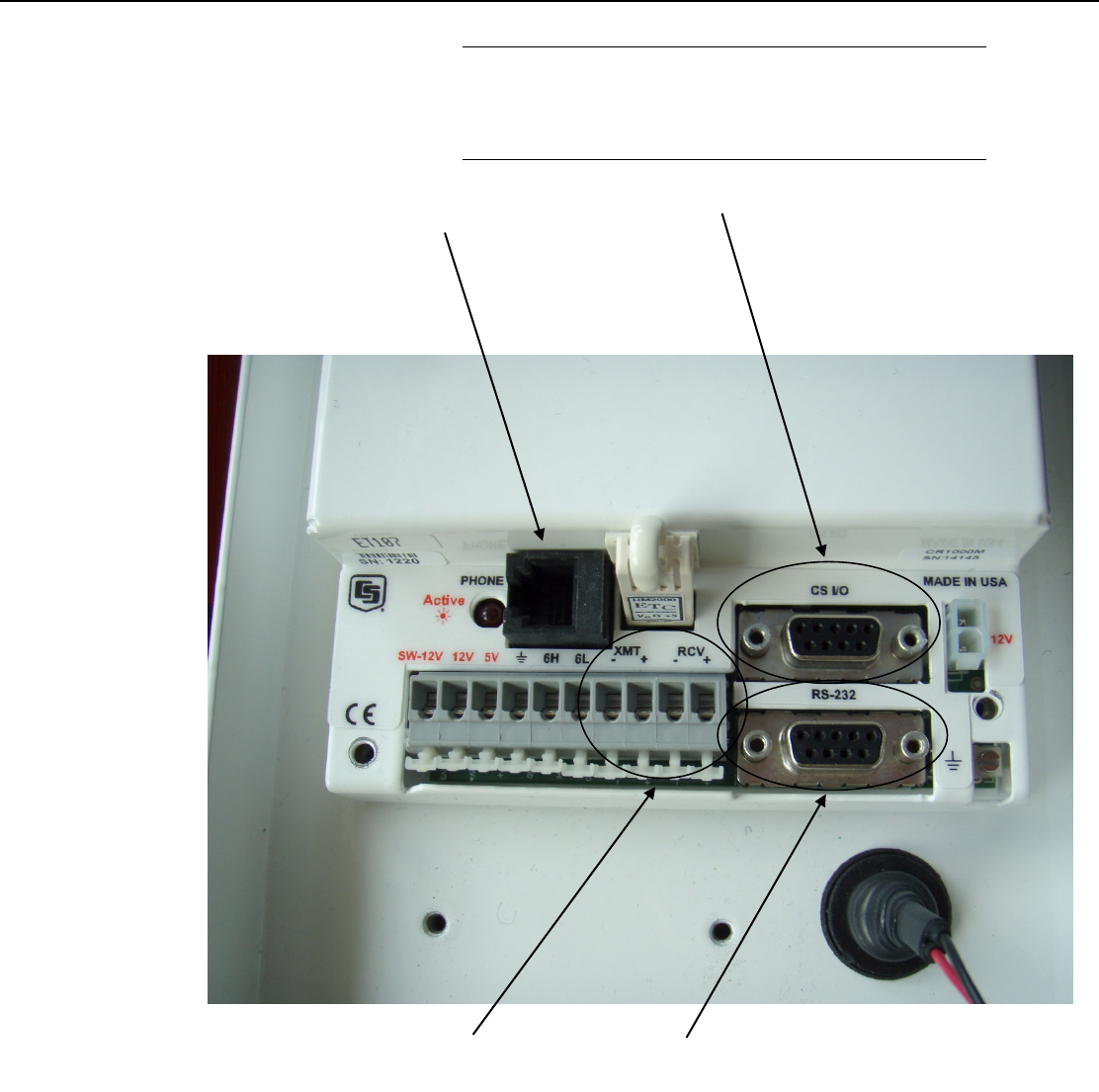

FIGURE 2-23. Close-up of the terminals and 9-pin ports in the T107
(battery not shown).
NOTE
Connects with
phone modem
’s
RJ
-11 patch cord
Connects with a
phone modem, Rad
modem, or RF450
radio via the 10588
ribbon cable
Connects with Rad
modem
’s 4-wire
patch cable
Connects with a
laptop via an RS
-
232
serial cable
31
