T107 Weather Station
It’s very important that each plug is completely seated on to the
connector and the locking ring turned 1/4 revolution clockwise.
Failure to seat the plug completely could cause corrosion and
water damage to both the enclosure and the sensor cable.
Notice how the sensor caps are slid between the connector and the
one above in FIGURE 2-22. This will keep the caps out of the
way of the connector cover.

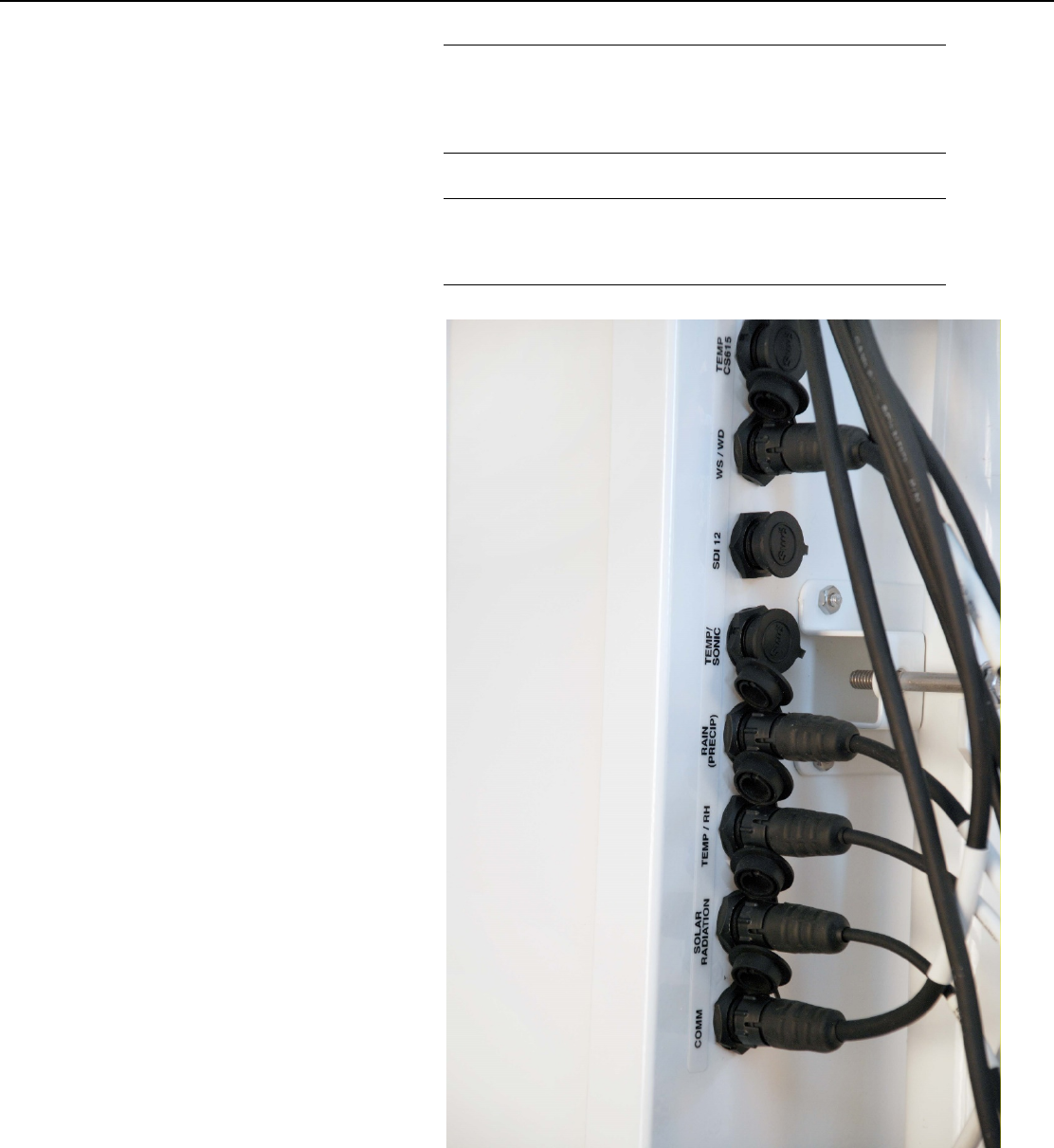

FIGURE 2-22. Connecting Sensor Cabling to Enclosure
NOTE
NOTE
29
