2.4.8 Sensor Connections
Sensor schematics are provided in Section 4.3.1, Sensor Schematics.
1. Each sensor cable plug attaches to a unique bulkhead connector as shown
in FIGURE 2-21. The sensor cables are individually marked to match up
with the sensor labeling on the back of the enclosure.
The 034B Wind Sensor plugs into the connector labeled
WS/WD. Plugging this sensor in the connector labeled
SDI-12 may damage the sensor and/or the main
enclosure connector board.

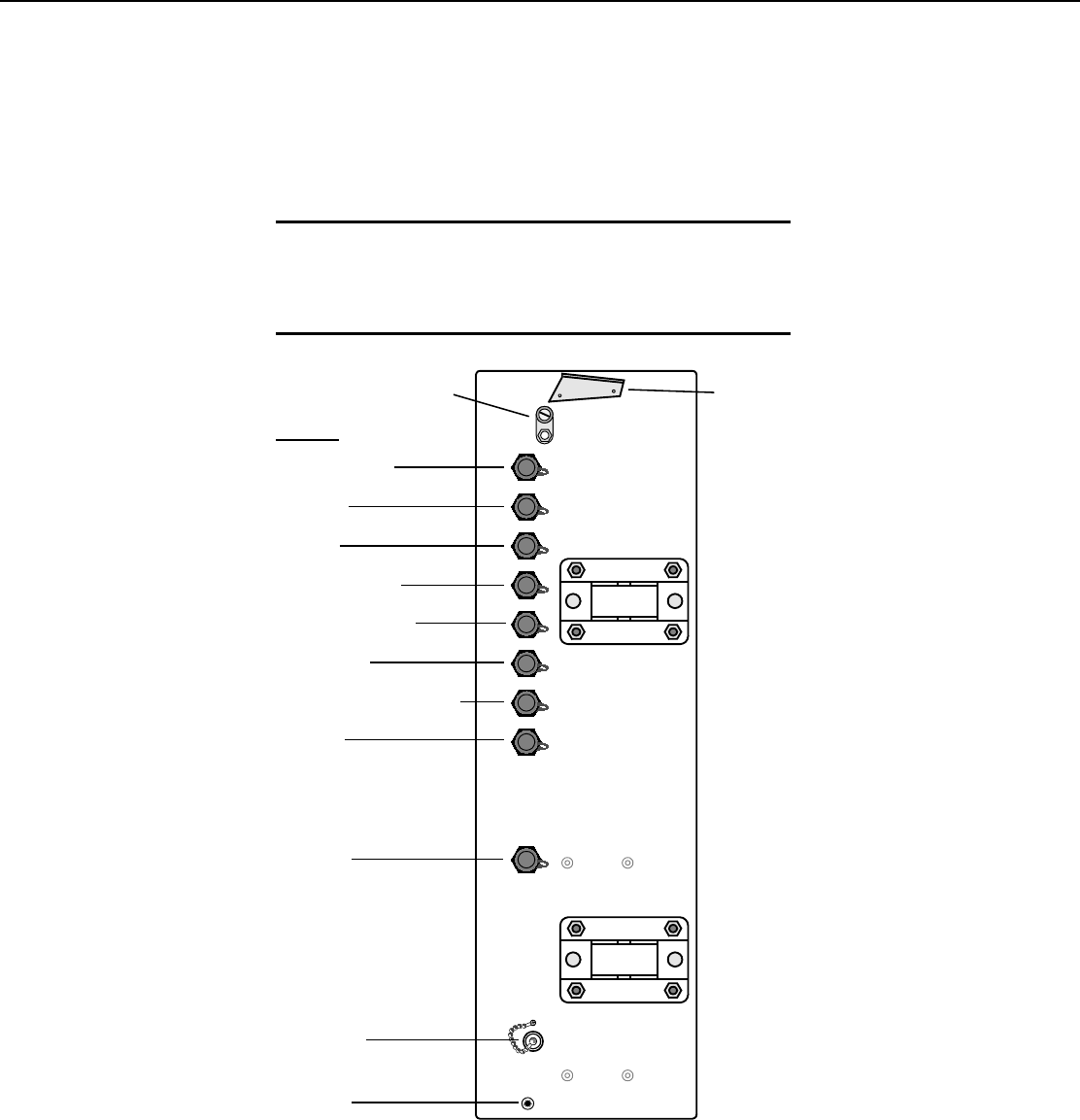

FIGURE 2-21. Position of Sensor Bulkhead Connectors
WARNING
Enclosure Ground Lug
Sensors
TEMP CS616
WS/WD
SDI
-12
TEMP/SONIC
RAIN (P
RECIP)
TEMP/RH
SOLAR RADIATION
COMM
POWER
BNC Coaxial
Connector
Standoff
Wire Tie Harness
