5. Move the jumper at the top of connector PC board so that it is placed over
the center and right pins (see FIGURE 2-15).

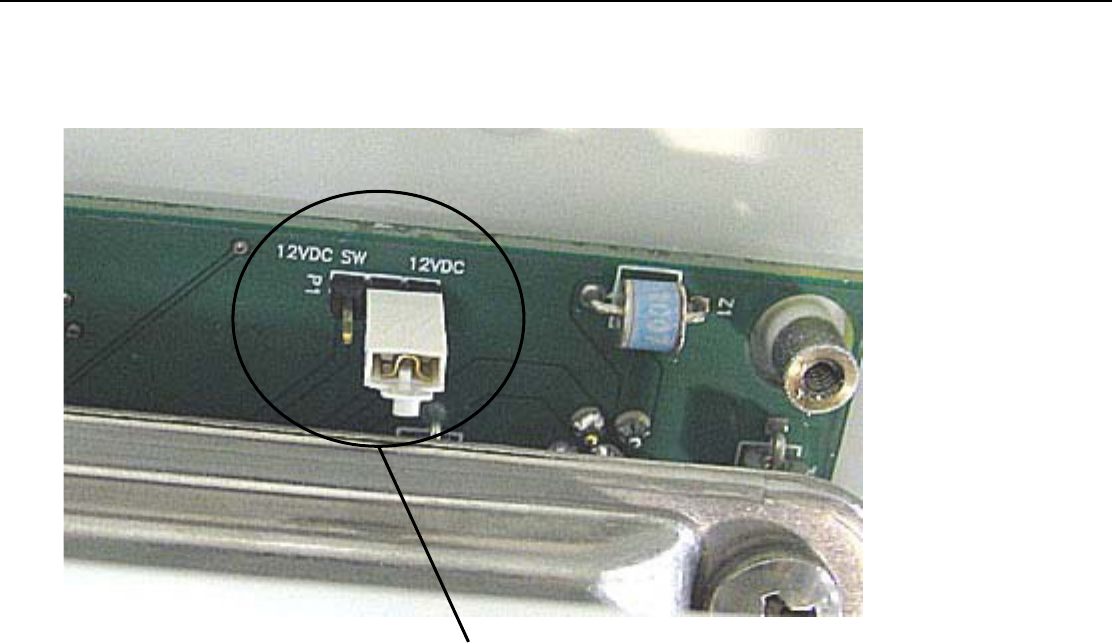

FIGURE 2-15. Jumper Set for WindSonic1
6. Replace electronics cover.
7. Tighten screws.
8. Reattach 10588 ribbon cable to the CS I/O port.
9. Replace enclosure cover.
2.4.5.2 Attachment to Sensor Arm
1. Remove the three Phillips screws from the end of the white mounting
shaft. Remove the protective cap covering the Gill WindSonic sensor
cable plug.
2. Loosen the U-bolt holding the mounting shaft to the crossarm. Pull the
shaft up and out of the U-bolt as shown in FIGURE 2-16.
New Jumper Position
