T107 Weather Station

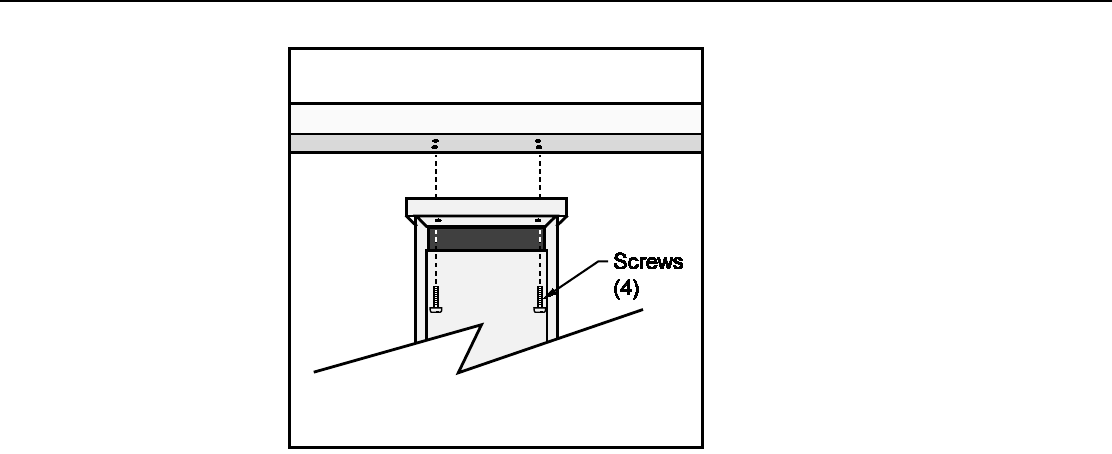

FIGURE 2-8. T107 Sensor Arm Mounting
1) Remove the front lid and the protective connector cover from the back of
the ET enclosure by loosening the one Phillips screw at the bottom of the
cover.
2) Place the sensor arm on top of the enclosure, lining up the four threaded
holes on the under side of the arm with the four holes in the top of the
enclosure. Attach the arm to the enclosure by inserting and tightening four
Phillips head screws. Adjust the position of the ET Enclosure so that the
crossarm is oriented along a due north to due south axis with the rain gage
and solar radiation sensor (pyranometer) on the south side for northern
latitudes and the reverse for southern latitudes.
18
