T107 Weather Station

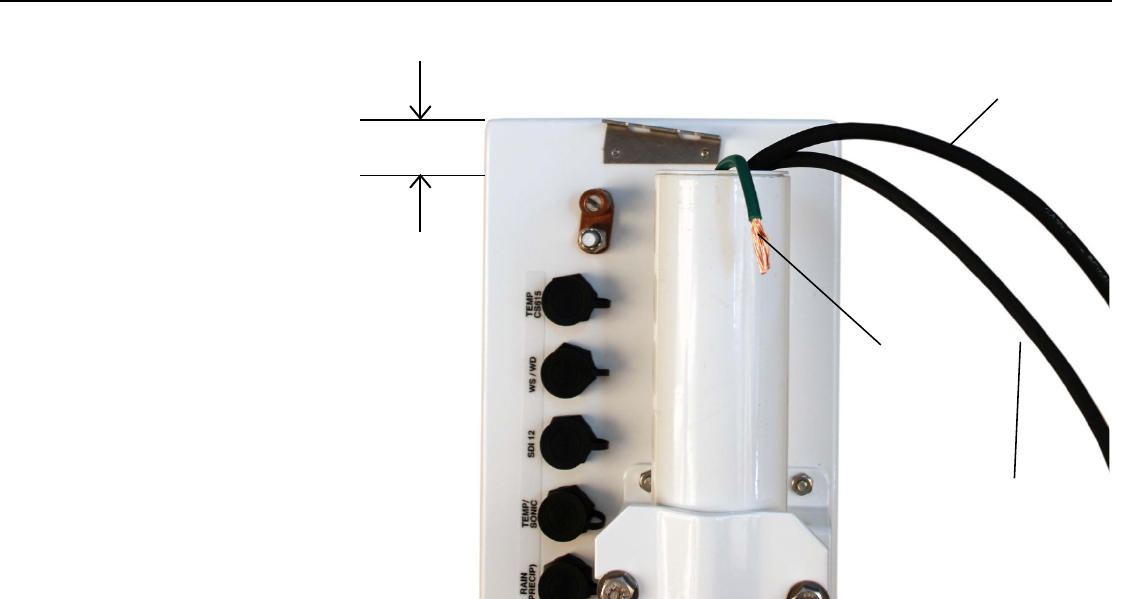

FIGURE 2-7. Enclosure Spacing Above Pole
2.4 Crossarm and Sensor Installation
Refer to Appendix C.2, Crossarm, for a labeled, exploded view of the
crossarm.
2.4.1 Components
(1) T107 Crossarm with Sensors (see FIGURE 2-6)
(1) Met One 034B or Gill WindSonic Wind Sensor
(1) White Mounting Shaft for 034B or Gill WindSonic
(1) Gill Radiation Shield
2.4.2 Crossarm Installation
Adjust the bolts at the base of the pole to vertically level the top section of the
mounting pole. Install the T107 Sensor Arm after the ET Enclosure is mounted
on the ET Tower. You may need to temporarily remove the communications
option. Mount the sensor arm as shown in FIGURE 2-8 without the wind
sensor attached.
Power Cable
(if using AC
transformer)
Ground
Wire
COM Cable
(if using phone or
short-
haul modem)
2 – 2.5 cm
17
