Appendix C. 28960 Stack Mounting Kit
C.1 Introduction
The 28960 Stack Mounting Kit is used to raise a component 3 in above the
surface of the back plate. This is beneficial when an enclosure nears its holding
capacity of components. Using the Stack Mounting Kit allows one component
to be stacked above another, saving space in the enclosure. For example,
FIGURE C-1 and FIGURE C-2 show a CR1000 mounted above an
AM16/32B. Any component mounted below the Top Grid must be fully wired
prior to installing the Top Grid. Note that in this example, the four grommets
used to mount the CR1000 to the Top Grid pass through the Top Grid into the
Legs using the same hole pattern as the CR1000.
CR1000
AM16/32B
Leg
Top Grid
Leg
Enclosure
Back
Plate
Screw
Screw
Screw
Screw
Grommet
Grommet
Grommet
Grommet

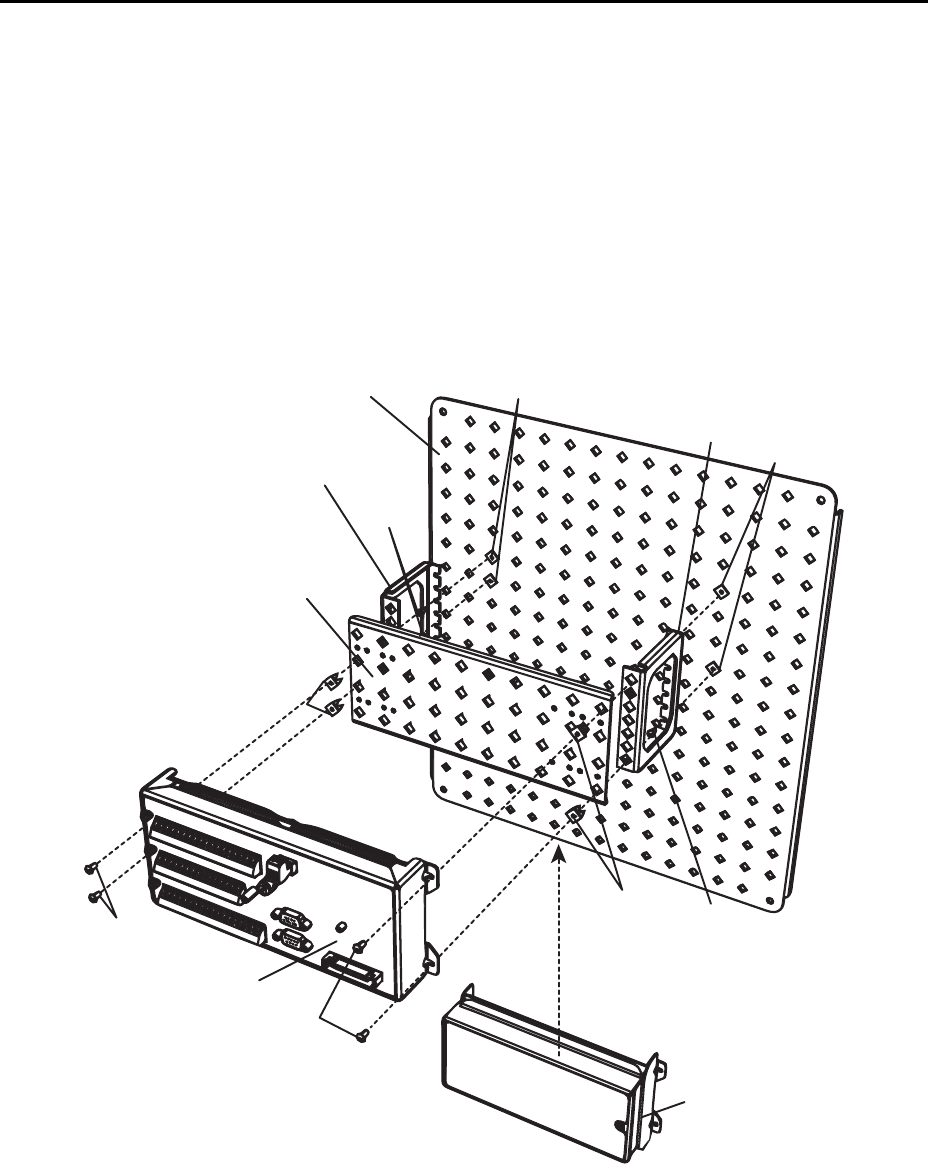

FIGURE C-1. Exploded view of a CR1000 and AM16/32B mounted on
a 28960 Stack Mounting Kit
