Appendix B. 25458/28532 DIN-Rail Terminal Kits
4. Connect the wires to the terminals (see FIGURE B-6 and FIGURE B-7).
The 8125 flat-bladed screwdriver is used to open the terminals’ guillotines
for wire entry.

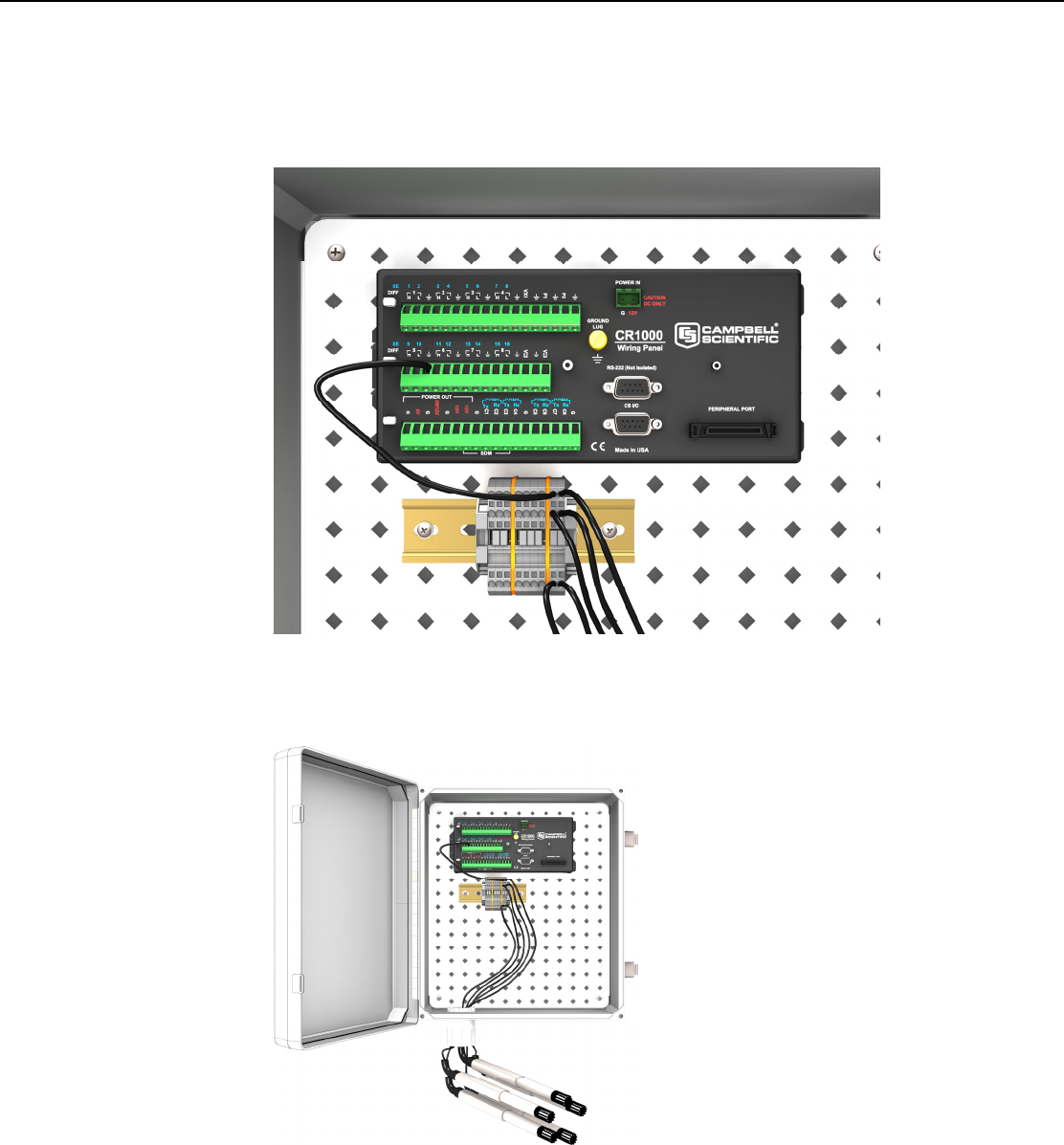

FIGURE B-6. An installed and wired 25458 DIN-Rail Terminal Kit
FIGURE B-7. The 25458 DIN-Rail Terminal Kit facilitates wiring of
multiple sensors
