CSIM11 pH and ORP Probes

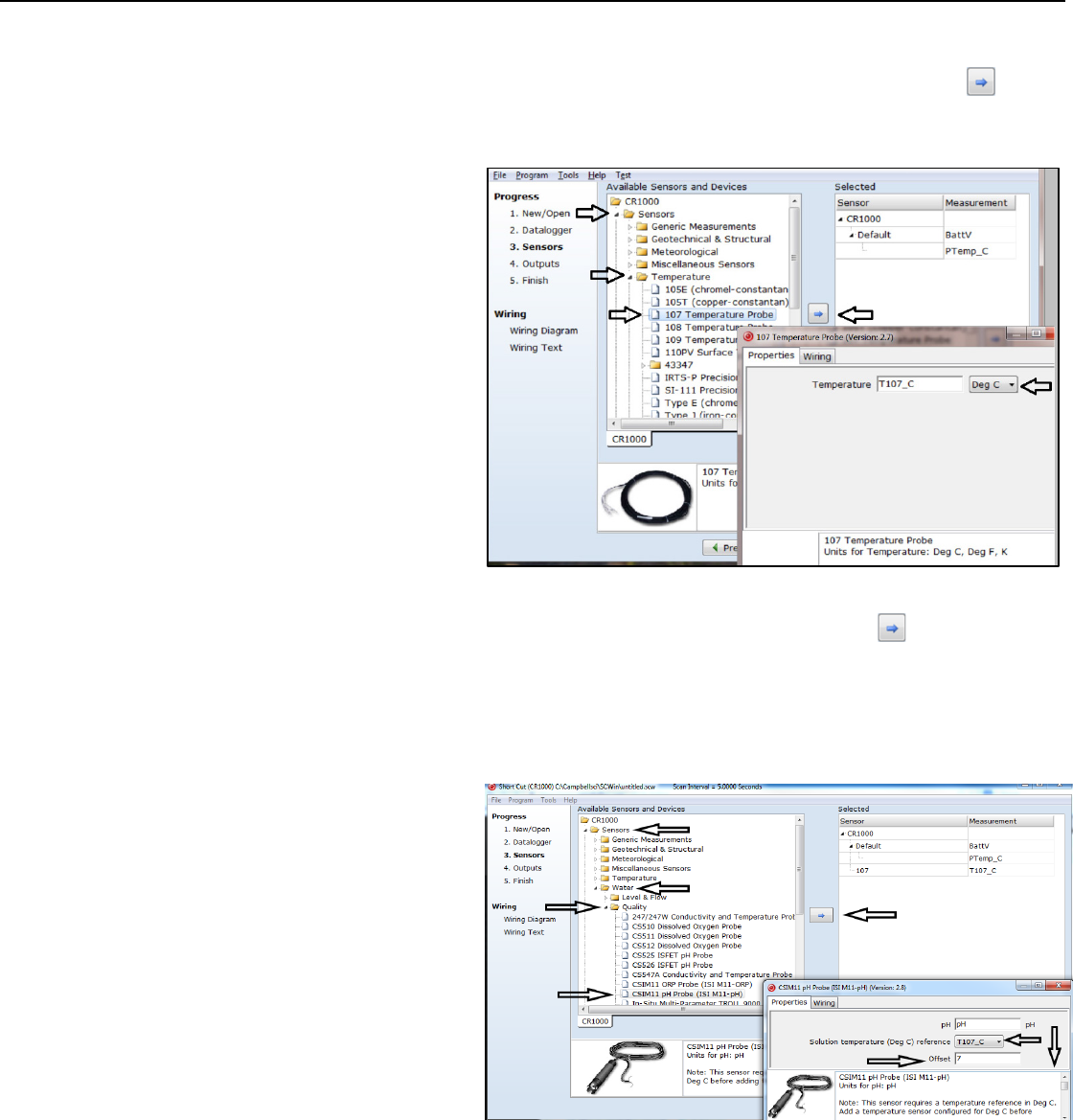

5. Under the Available Sensors and Devices list, select the Sensors |
Temperature folder. Select 107 Temperature Probe. Click to
move the selection to the Selected device window. Use the data default of
degree Celsius.
6. Under the Available Sensors and Devices list, select the Sensors | Water |
Quality folder. Select CSIM11 pH Probe. Click to move the
selection to the Selected device window. Click on the Solution
temperature (Deg C) reference box and select T107_C. The probe
usually requires an offset adjustment. The white panel at the bottom of the
Properties window provides a procedure for determining the value that
should be entered in the Offset box.
3
