43347 RTD Temperature Probe, 43502 and 41003-5 Radiation Shields

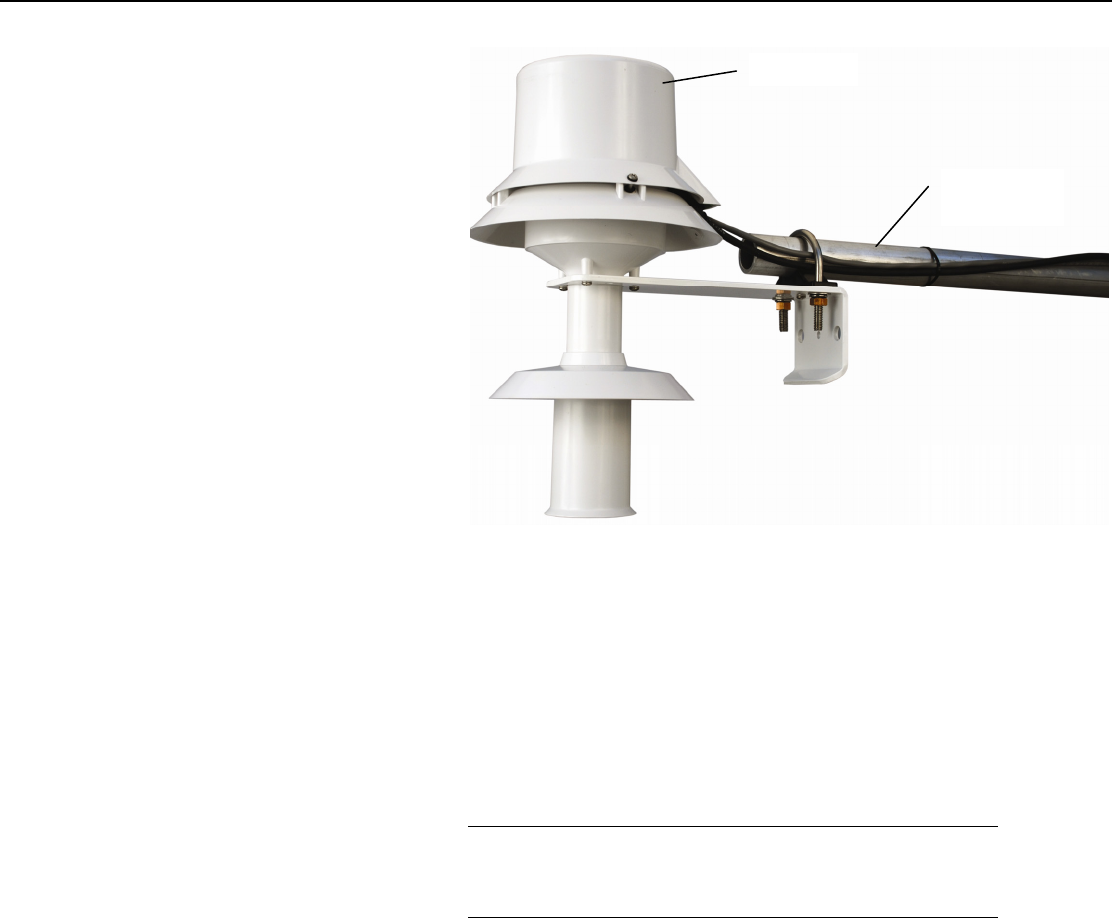

FIGURE 3-2. 43502 Radiation Shield mounted to a CM200-series
Crossarm
43502 Shield
CM200-series
Crossarm
3.4 41003-5 Radiation Shield Installation
The 41003-5 Radiation Shield has a U-bolt for attaching the shield to tripod
mast / tower leg (FIGURE 3-3) or CM200-series crossarm. The radiation
shield ships with the U-bolt configured for attaching the shield to a vertical
pipe. Move the U-bolt to the other set of holes to attach the shield it to a
crossarm.
The split nut that ships with the 41003-5 shield must be replaced
with split nut pn 27251 (ordered separately), which has a slightly
larger diameter to accommodate the 43347 probe.
NOTE
Loosen the split-nut on the bottom plate of the 41003-5, and insert the 43347
into the shield. Tighten the split-nut to secure the sensor in the shield. Route
the sensor cable to the instrument enclosure. Secure the cable to the
tripod/tower using cable ties.
