1.2.2 ACCESSORIES AND OPTIONS
* For extended-transmit applications, the “TX Time out” timer must be turned off (set to “disable”) via the
Field Programming Software.
For information on accessories and options, contact your sales representative. In the United States phone 1-
800-992-7774. For international sales, phone [phone] or 1-305-829-4030.
1.2.3 FACTORY MUTUAL NI KIT
The Integra-TR with the Factory Mutual NI Kit (DRL part number 023-1000-200) is approved as
nonincendive for Class I, Groups ABCD, Division 2, hazardous locations by Factory Mutual Research
Corporation. This option includes approval for International Electrotechnical Commission (IEC) Class I,
Zone 2.
Approved models are labeled with this rating. Only units with the Factory Mutual approved label carry the
nonincendive rating. Installation, service, and repair of the FM approved units must be in accordance with
the instructions found in this manual and the National Electrical Code (ANSI-NFPA 70) Division 2:
Hazardous (classified) Location Incendive Wiring Techniques. Mount the unit in an enclosure or assembly.
Route all interconnecting cables (DC power and coaxial) through conduit as specified in the National
Electrical Code document referenced above. For further guidance on installation, see ANSI\ISA-RPI2.6:
Installation of Intrinsically Safe Systems for Hazardous (Classified) locations.

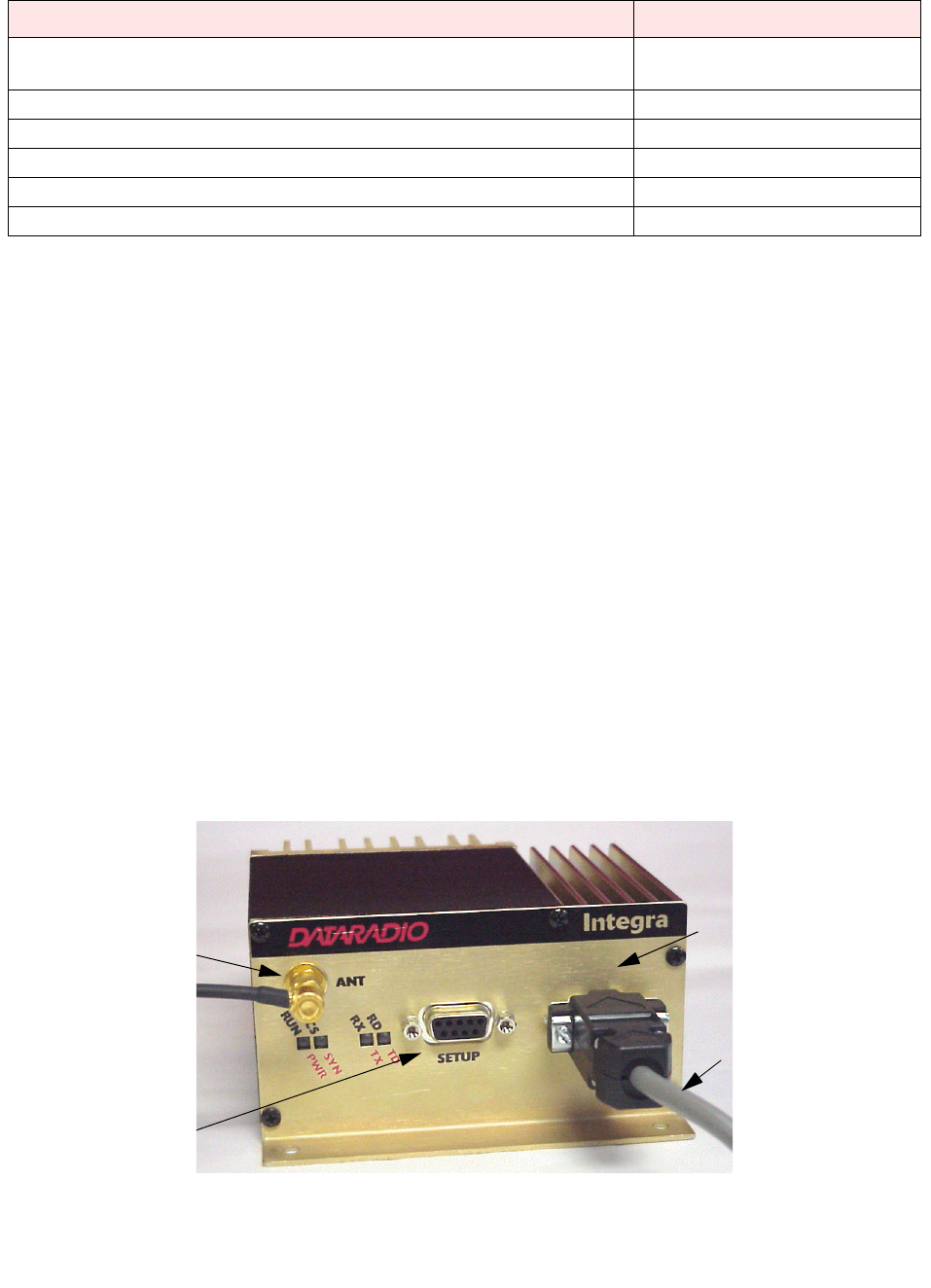

Figure 1-1 FM Approved External Connections
Accessory DRL Part Number
Integra-TR Field Programming Kit (includes software and technical manual on
CD ROM, and programming cable - DRL part number 697-4008-408) 250-4008-001
SMA Male - BNC Female adapter cable 023-3410-098
*Cooling fan - factory option (For extended duty-cycle transmit applications) Catalog number plus “F” suffix.
Power cable 697-4008-001
Factory Mutual NI Kit 023-1000-200
*Full-duplex base station - Y-cable option Contact Technical Service
User Interface Cable
Data Port
Programming Port
To Antenna System
(SMA Connection)
