User's Manual
2-14
Part No. 001-4008-101/102
Analog 1
Analog 1 selects configuration of Pin 3 of the Power/Analog connector (green wire):
z
Input - for use on units not equipped with the cooling option - can be used to monitor an external voltage
(0 to 10 volts)
z
Fan Control - regulates an external fan. Factory set (enabled) and the default for all units equipped with
the cooling option. The temperature-controlled open-collector transistor is rated for 100 mA max. The
unit’s internal thresholds are set for ON at 48 degrees C and OFF at 38 degrees C. This selection is
dependent on hardware configuration and should not be changed in the field.
Analog 2
This field selects configuration of Pin 4 of the Power/Analog connector (white wire):
z
Input - for use on units not equipped with the cooling option - can be used to monitor an external voltage
(0 to 10 volts)
z
Rx TP - performs as the demodulated signal level test point. The Rx TP level is half of the internal Rx Test
Point.
z
Ant. SW Control - supports the use of a redundant base station. Ant. SW Control configuration is de-
pendent on hardware configuration and should not be changed in the field.
2.4.3.3 Radio Operating Parameters
The Radio tab allows user programming of various radio operating parameters.

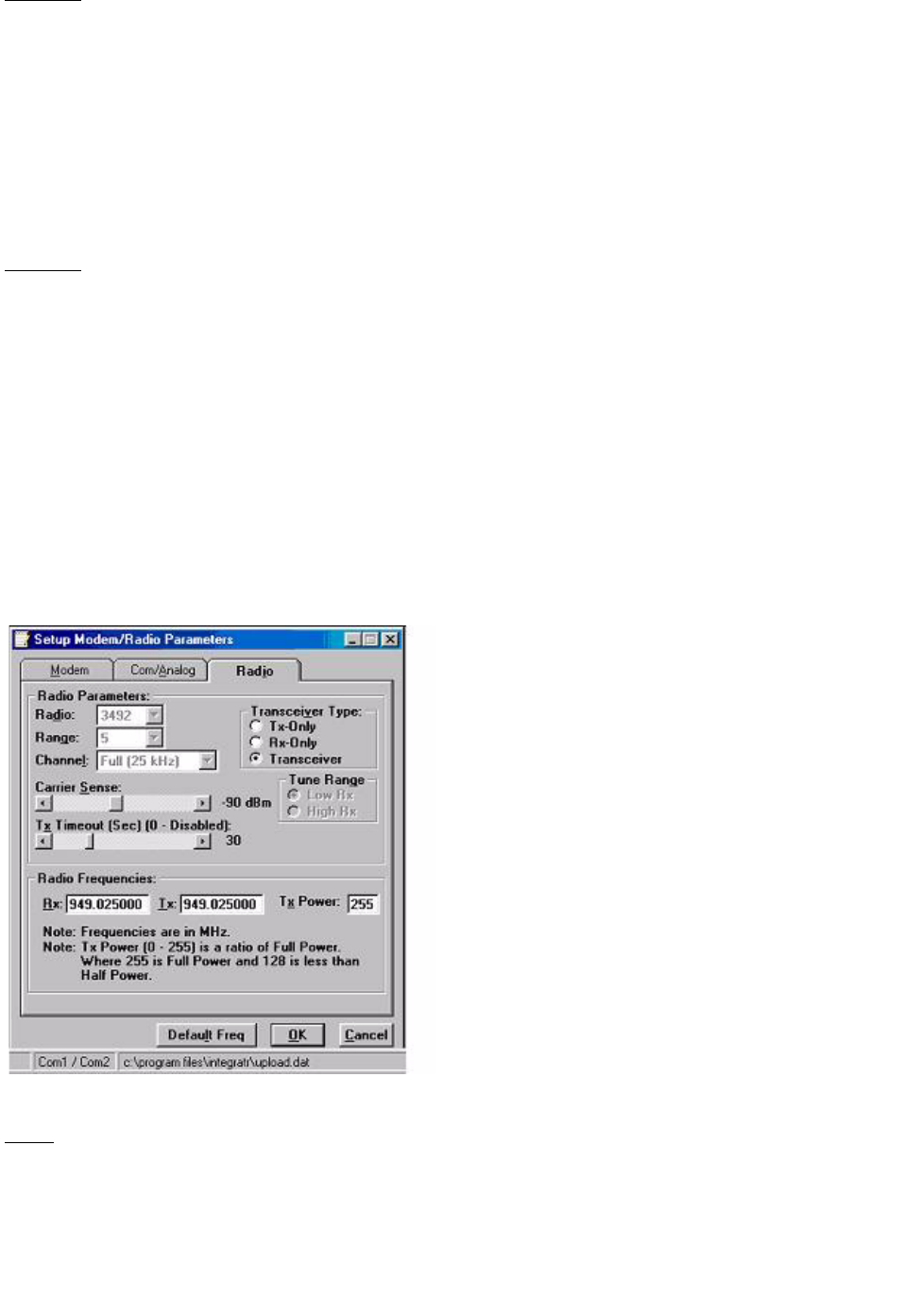

Figure 2-12 Radio Setup Parameters Screen
Radio
This field designates the radio model.
