6.2 Rack Wiring

Wire the D-range connector as shown in Figure 6.4. Ensure that the cables are not sub-

jected to any stresses due to tight bends or incorrect lengths.

The RF coaxial cables to the BNC and N-type connectors should be free from acute

bends or twists. If access to the rear of the rack frame is restricted, the cables should be

long enough to permit full withdrawal of the chassis from the guide.

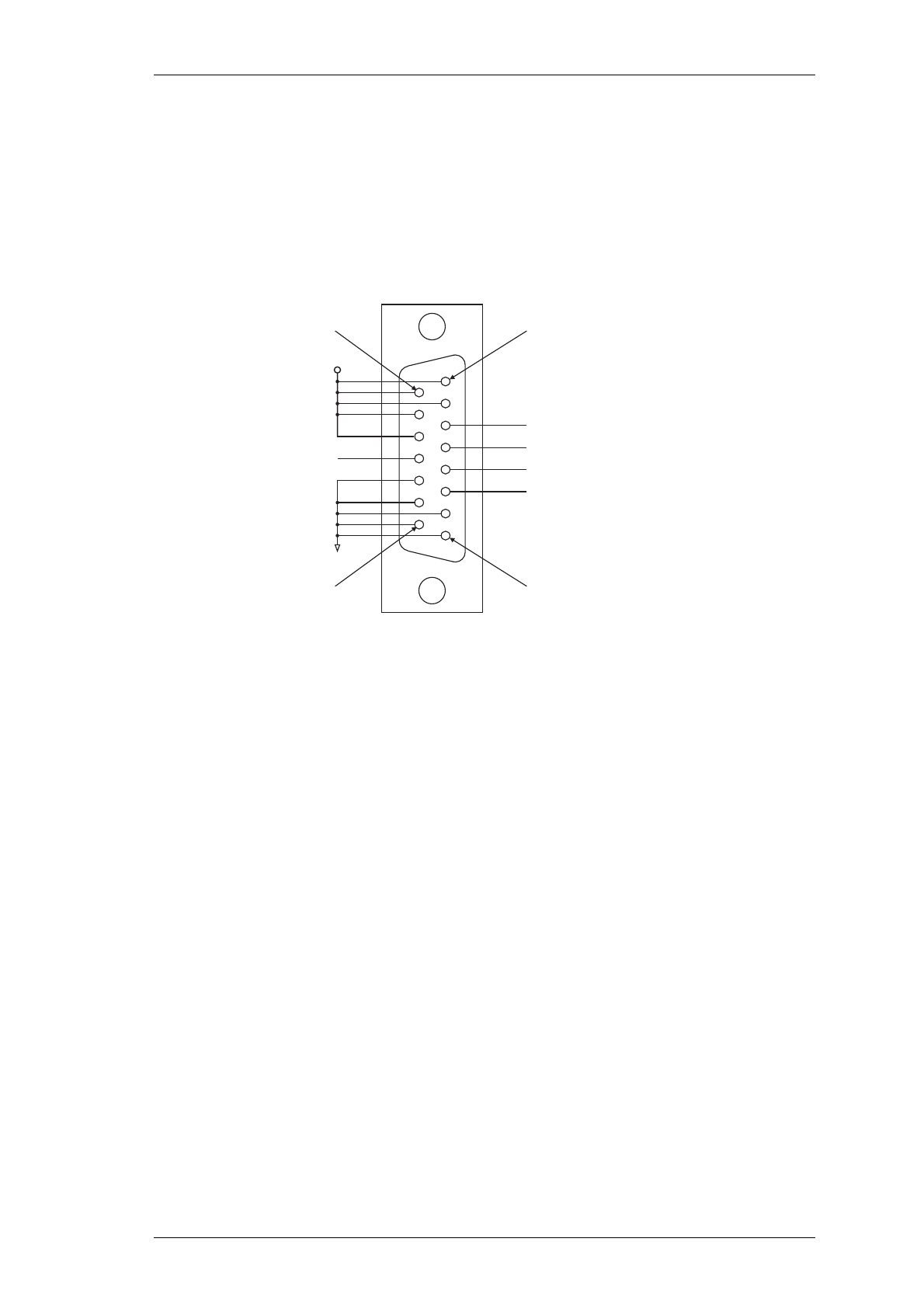

Figure 6.4 D-Range Wiring - Rear View

6.3 Power Supply

If a power supply other than an appropriate Tait model is used, ensure that it is capable

of providing enough current to drive the T800 system and is also free from excessive

ripple or noise.

Reverse Power Metering

Forward Power Metering

Reverse Power Alarm

Forward Power Alarm

Tx Key

+13.8V

Gnd

Pin 15

Pin 8

Pin 1Pin 9
