Installation 6.3

6.1 Rack Mounting

The T889 PA is designed for use in a standard 483mm rack frame using the supporting

guide rails supplied with the unit (refer to Figure 6.1).

The lower guide rail is located in the rack frame with three screws, two at the rear and

one at the front. The short upper guide rail is located with just one screw. The PA is

secured into the guide with two front panel mounting screws.

The RF input via the rear panel BNC connector should be connected to an adjacent T881

transmitter. The RF output is via the rear N-type connector, whilst all DC, audio and

control connections are via the D-range connector.

The guide rails will allow the PA to be latched in the extended position (refer to Figure

6.3).

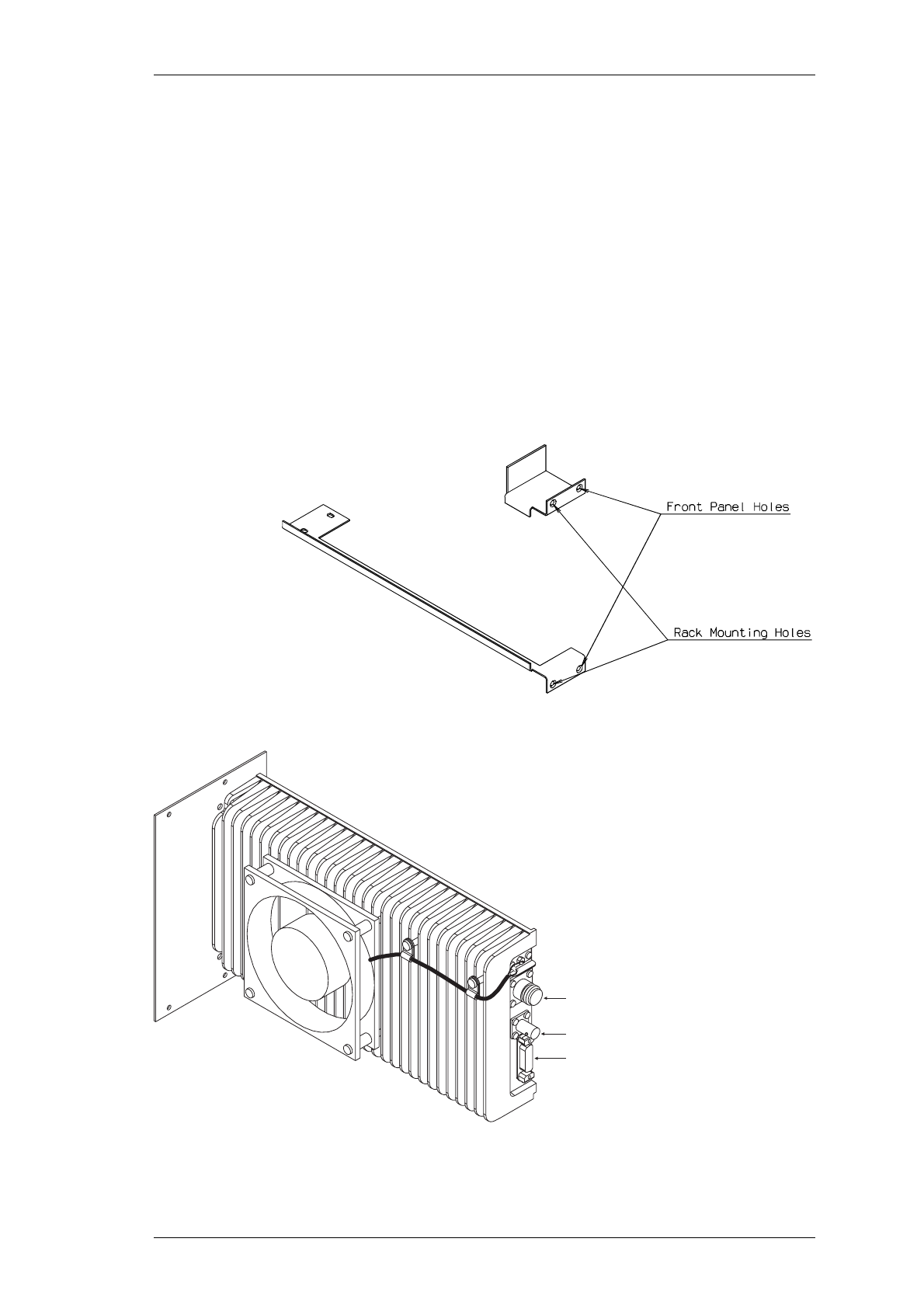

Figure 6.1 Guide Rails

Figure 6.2 Chassis Connectors

N-Type Connector

BNC Connector

D-Range Connector
