Table 10 – Online Diagnostics RSSI Display
Value
RSSI
Notes
0
NA
The RSSI Value is not Available
1
> -60.25 dBm
The RSSI Value is greater than –60.25 dBm
20
-65.00 dBm
255
< -123.75 dBm
RSSI is less than –123.75 dBm
X
RSSI = -60 – (X * 0.25), for X not equal to 0
4.2 SETUP WIZARD
Refer to Section 3.5.2 – Quick Start to use the Setup Wizard to configure your Viper.
4.3 BASIC SETUP
From the navigation frame, select Basic Setup to configure General, IP, Channel Table and Serial Port settings.
 General Settings (see Section 4.3.1)
 IP Settings (see Section 4.3.2)
 Channel Table Settings (see Section 4.3.3)
 Serial Port Settings (Section 4.3.4)
4.3.1 GENERAL

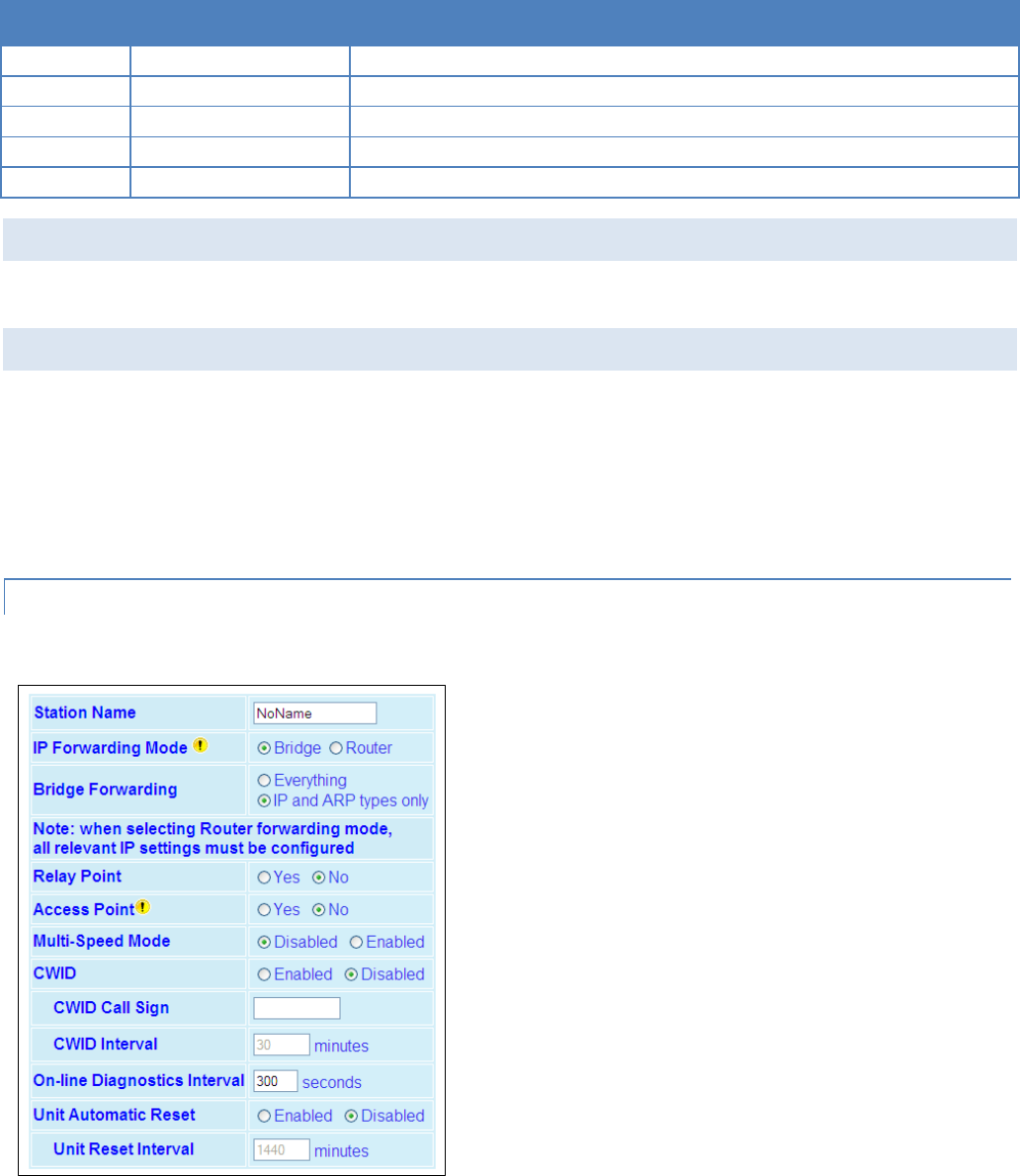

Figure 21 – Setup(Basic)General Settings
― Station Name. Enter a string up to forty characters in length.
