INVOKE:GatePistobeplaced
DeviceswithSeveralGates
Some devices consist not of one but of several gates. These can normally
be placed onto the schematic diagram one after another with the ADD
command.Toplaceacertaingateyoucanusethegatenamedirectly.
Example:
The device 74*00 from the 74xx-eu library consists of for NAND gates
named A to D and one power gate named P. If you want to place the gate
C first,usethegatenamewiththeADDcommand:
ADD'IC1''C'74LS00@74xx-eu.lbr
SeealsohelpfunctionfortheADDcommand.
As soon as one gate has been placed, the next one is attached to the
mouse (addlevel is Next). Place one gate after another on the diagram.
When all the gates in one device have been used, the next device is
broughtin.
If the gates in one device are distributed over several sheets, place them
first with ADD, change to the other sheet of the schematic diagram, and
type,forexample
INVOKEIC1

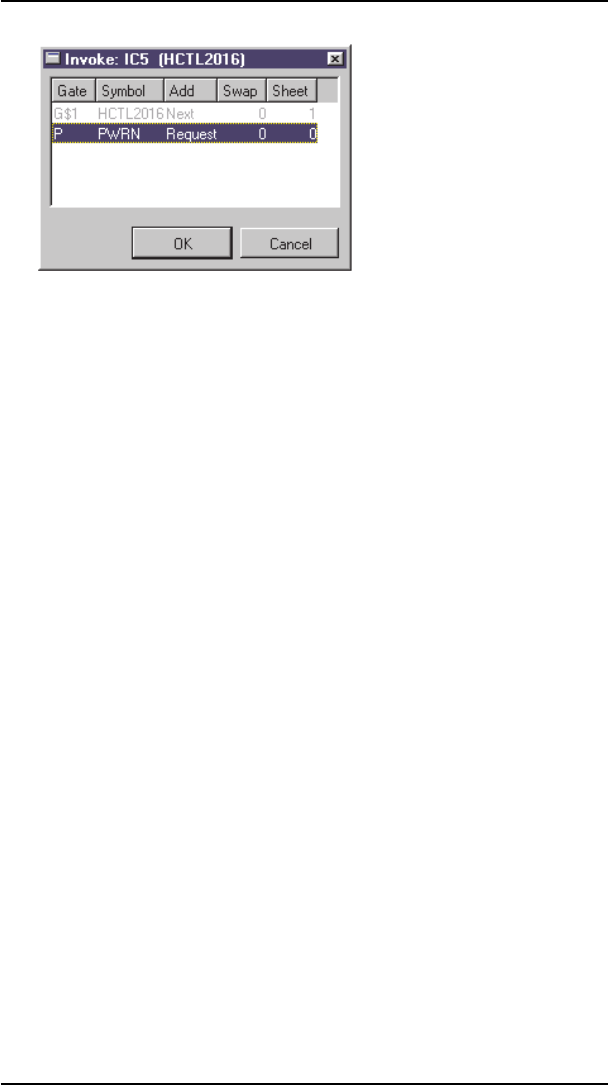

on the command line. Select the desired gate from the INVOKE
window.
91
FromSchematictoFinishedBoard
