Clicking OK closes the ADD window, and you return to the schematic
diagram editor. The frame is now hanging from the mouse, and it can be
put down. The bottom left hand corner of the frame is usually at the co
-
ordinateorigin(00).
Library names, device names and terms from the device description can
be used as search keys. Wildcards such as * or ? are allowed. A number
ofsearchkeys,separatedbyspaces,canbeused.
In the Layout Editor's
ADD dialog package names and terms from the
packagedescriptions (Description enabled) canbesearchedfor.

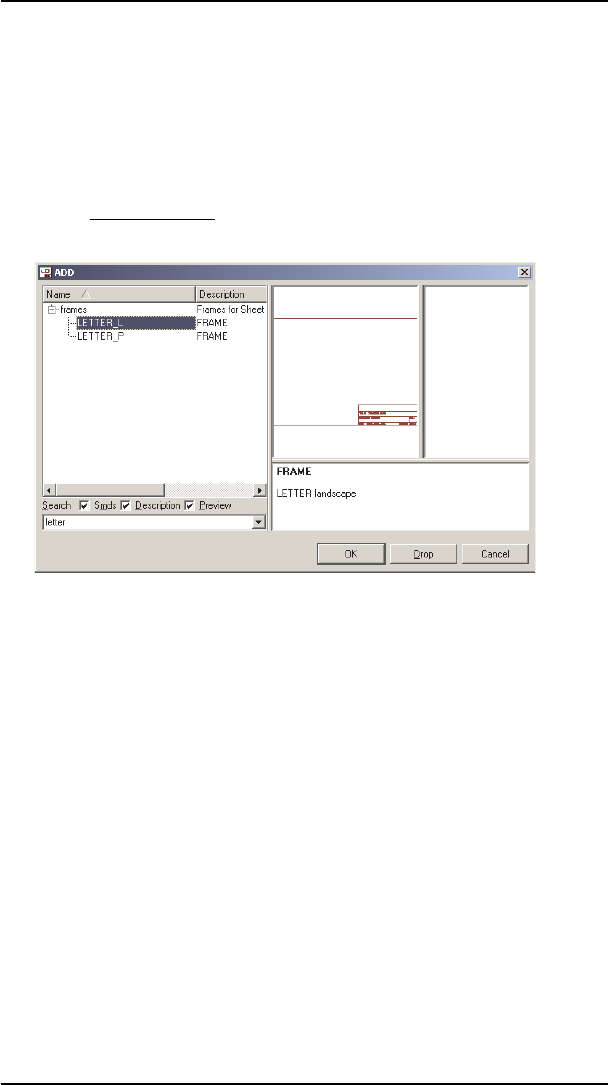

ADDdialog:Resultsfromthe searchkey letter
The ADD command may also be entered via the command line or in
scriptfiles.Theframecanalsobeplacedusingthecommand:
add[e-mail]
Wildcards like * and ? may also be used in the command line. The
command
addletter*@frames.lbr
for example opens the ADD windows and shows various frames in let
-
terformattoselect.
The search will only examine libraries that are in use. That means that
thelibraryhasbeenloadedbytheUSEcommand (Library/Use).
If a certain library should not be listed in the ADD dialog anymore, se
-
lect the library name in the tree and click the Drop button. Now it is not
inuse anymore.
