- A
The color assignment for layers is done with the DISPLAY command or
withSETCOLOR_LAYER.
Moredetailsaboutthesyntaxcanbefoundinthehelpfunction.
MiscellaneousSETOptions
The Misc tab of the Settings window contains the most common op
-
tions, which are switched on or off by check boxes. Some options allow
enteringvalues.

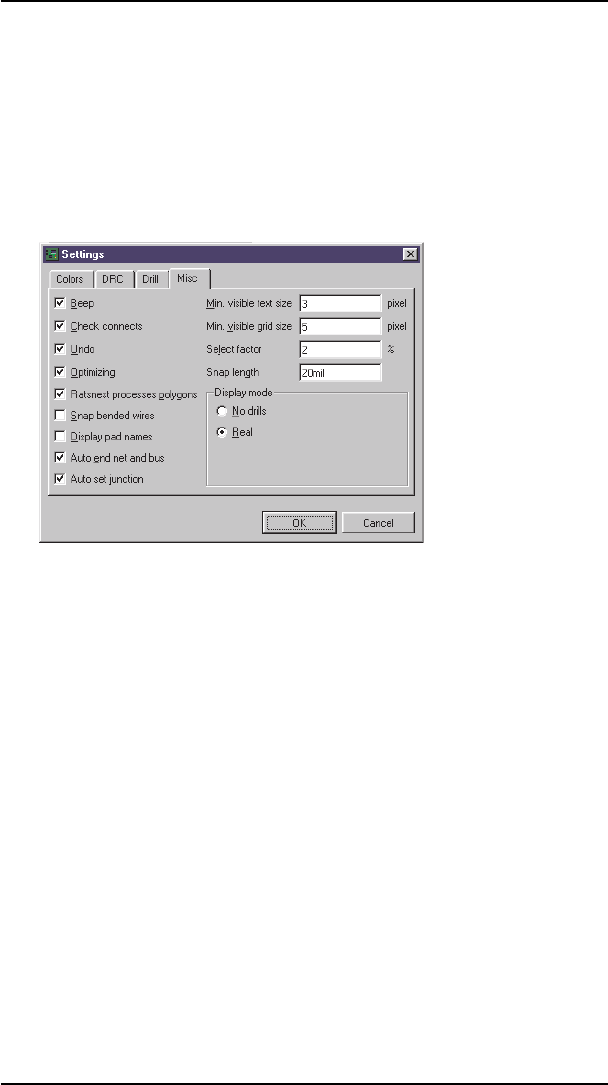

Settingsat Options/Set/Misc
Optionsoverview:
Beep:
Switcheson/offtheconfirmationbeep.Default:on.
Checkconnects:
Activatesthepackagecheckwhileplacingpartsintheschematic.
Default:on.
Undo:
Switcheson/offtheundo/redobuffer.Default:on.
Optimizing:
Enablestheautomaticremovalofbendsinstraightlines.Default:on.
Ratsnestprocessespolygons:
The contents of polygons will be calculated with the RATSNEST com
-
mand.Default:on.
Snapbendedwires:
If active, wire bends always lie on a grid intersection point. Due to this
factitcanhappenthattracesdon'tadhere45°angles.Default:off.
Displaypadnames:
PadnamesaredisplayedintheLayoutorPackageEditor.Default:off.
82
