User Guide

SETCommand
Most common options of the SET command are available in the Settings
window of the menu Options/Set. This window can be reached also by
entering
SET
onthecommandline.
The number of available layers shown in the DISPLAY or LAYER menu
can be set with the option Used_Layers. That way it is possible to hide
unusedlayersforclarityreasons.
SETUSED_LAYERS1161718192021232527
2931444551;
storedinthefile eagle.scr showsonlythementionedlayers.After
SETUSED_LAYERSALL;
alllayersareavailableagain.
Color Settings
The Colors tab contains settings for layer and background colors and
colorsforgridlinesordots.

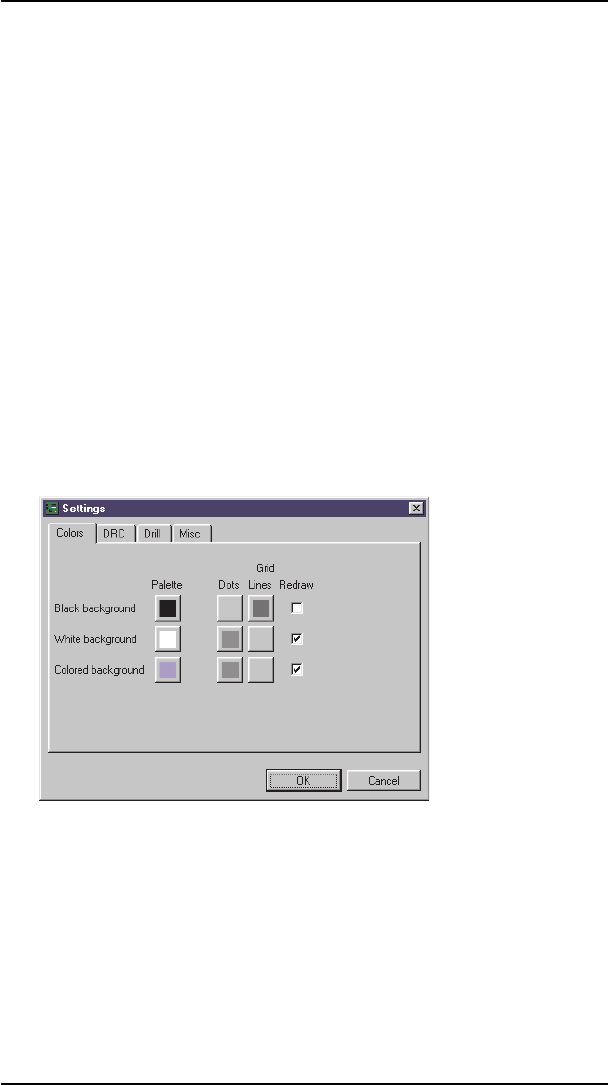

SettingsWindow:ColorSettings
Three color palettes are available: for black, white and colored back
-
ground. Each palette allows a maximum of 64 color entries, which can
begivenany RGBvalue.
By default EAGLE uses the first 16 values (entries 0..15). Eight colors
followedbyfurthereightso-calledhighlightcolors.
The first entry of the palette determines the background color. In the
white palette, however, it is not possible to change the background color
because it's needed for print-outs, which normally are made on white
paper.
